Ammann ARS122 Workshop Manual Single Drum Roller From SNA1N00286C17080001 manuals in PDF

$19.95

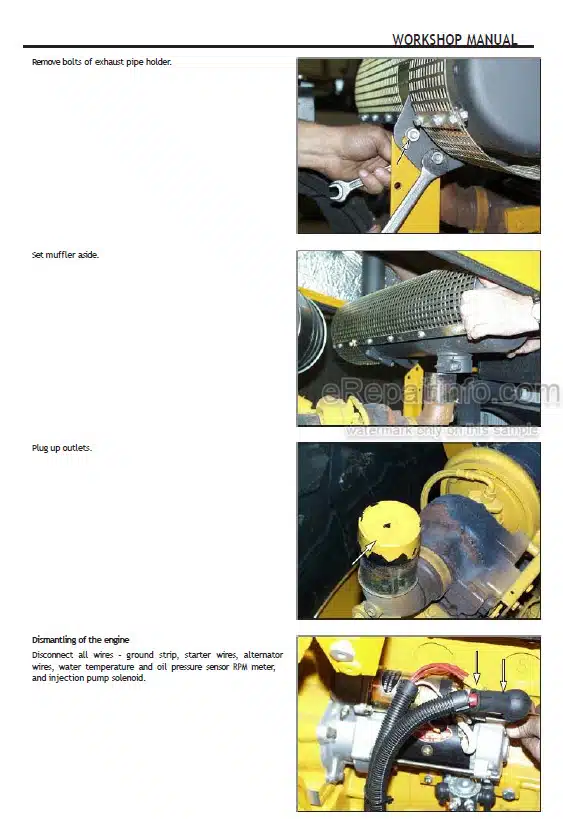

Factory Workshop Manual For Ammann Single Drum Roller. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 8 - Ammann ARS122 Workshop Manual Single Drum Roller From SNA1N00286C17080001
Ammann ARS122 Workshop Manual Single Drum Roller From SNA1N00286C17080001 $19.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Workshop Manual For Ammann Single Drum Roller. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 143
Issued: august 2017
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Ammann Single Drum Roller
ARS122
From Serial No.A1N00286C17080001
