Case 1255 Early Riser Service Manual Front Fold Trailing Planter 47521009 manuals in PDF

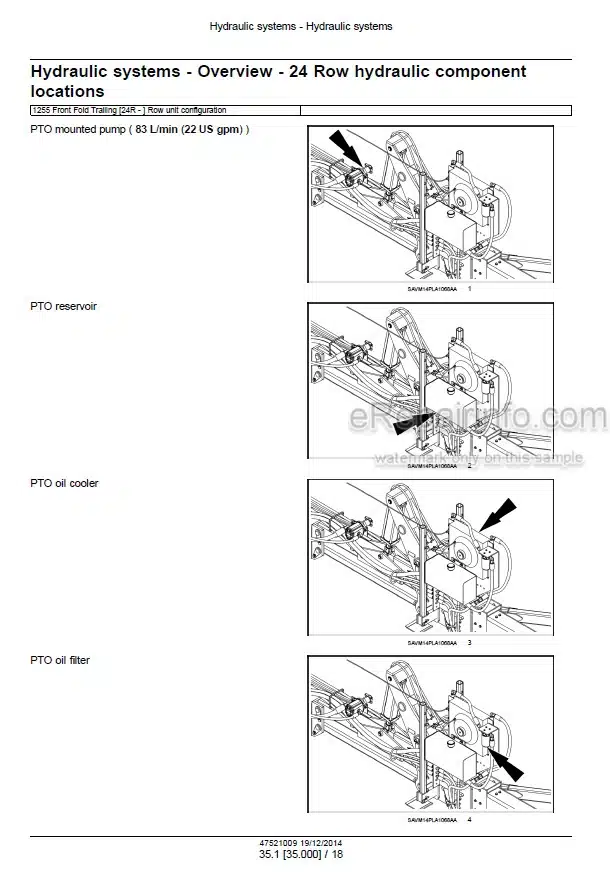

Factory Service Manual For Case 1255 Early Riser Front Fold Trailing Planter. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 2094
Number: 47521009 (december 2014)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Case Front Fold Trailing Planter
Early Riser 1255

Contents

INTRODUCTION
-HYDRAULIC SYSTEMS
Hydraulic Systems
Fixed Displacement Pump
Pump Control Valves
Main Control Valve
Hydraulic Seeding Fan System
Frame Positioning Folding
Frame Positioning Lifting
Vacuum System Hydraulic Circuit
Marking System Hydraulic Circuit
Liquid Fertilizer System Hydraulic Circuit
Metering System Hydraulic Circuit
-PNEUMATIC SYSTEM
Pneumatic System
Pneumatic Operated Components
-WHEELS
Carrying And Transport Wheels
-ELECTRICAL SYSTEMS
Electrical System
Harnesses And Connectors
Seeding Control System
Precision Farming System
External Lighting
Fault Codes
-METERING SYSTEM
Metering Mechanical Drive
Product Metering
-CHEMICAL APPLICATORS
Liquid Fertilizer System
Granular Chemical System
Fertilizer Applicators
-PLANTING
Product Handling And Delivery Drive System
Planting Fan System
Planting Vacuum System
Planting Marking System
Planting Tool

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
