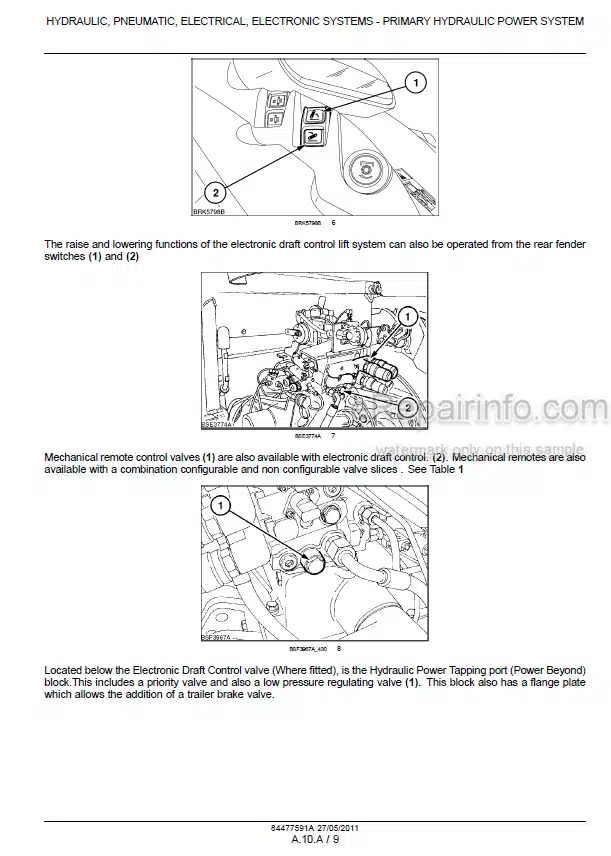

Factory Service Manual For Case 130, 145, 160, 130CVX, 145CVX, 160CVX Puma Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 2322
Number: 84477591A
Searchable Text
Wiring and Hydraulic Schematics
Model
Case Tractor
PUMA 130CVX
PUMA 130
PUMA 145CVX
PUMA 145
PUMA 160CVX
PUMA 160
Contents
INTRODUCTION
-HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONIC SYSTEMS
Primary Hydraulic Power System
Primary Hydraulic Power System Closed Center Mechanical Remote Valve
Primary Hydraulic Power System Electro-Hydraulic Remote Valve
Secondary Hydraulic Power System
Hydraulic Command System
Pneumatic System
Electrical Power System
Electronic System
Fault Codes
-ENGINE AND PTO IN
Engine
Fuel And Injection System
Air Intake System
Exhaust System
Exhaust System Emissions Control
Engine Coolant System
-TRANSMISSION, DRIVE AND PTO OUT
Transmission Semi-Powershift
Transmission Powershift
Transmission Continuously Variable Transmission (CVT)
Additional Reducers Overdrive
Rear PTO Mechanical
Rear PTO Hydraulic
Front PTO Hydraulic
-AXLES, BRAKES AND STEERING
Front Axle
Rear Axle
2WD-4WD System Hydraulic
Steering Hydraulic
Steering Autoguidance
Service Brake Hydraulic
Service Brake Pneumatic
Parking Brake Mechanical
Parking Brake Electronic
Brake Connection Hydraulic
Suspension Hydraulic
Wheels And Tracks Wheels
-FRAME AND CAB
Frame Primary Frame
Shield
User Controls And Seat
User Platform
Environment Control Heating, Ventilation And Air-Conditioning
-HITCH AND WORKING TOOL
Hitch Front Hitch H
Hitch Rear Hitch
Hitch Electronic Draft Control
