Case 280 330 335 380 385 430 435 480 485 530 535 STX Steiger Service Manual Tractor And Controller manuals in PDF

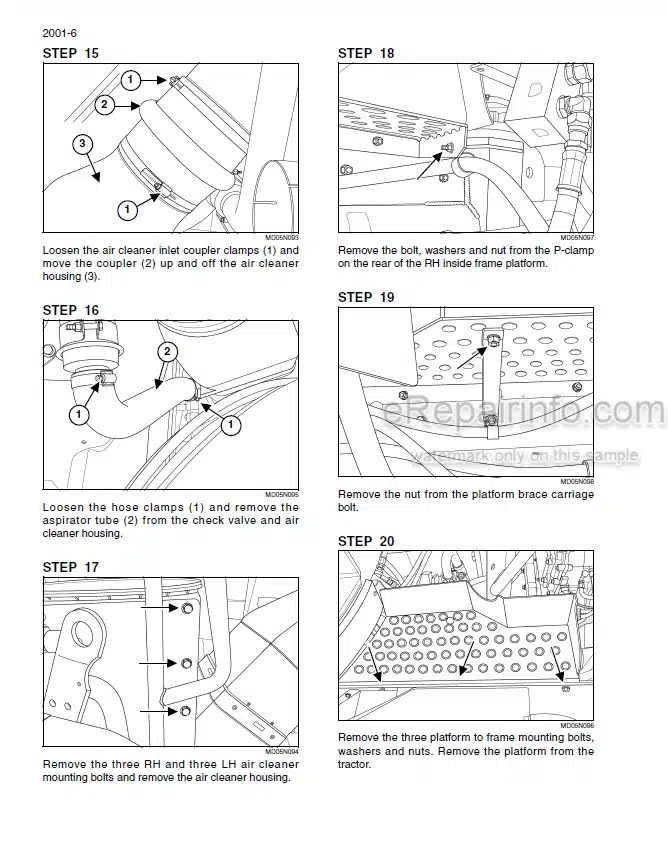

Factory Service Manual For Case Steiger Tractors. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 3348; 195
Number: 84257306; 84257309 (August 2009)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Case Tractor
STX 280
STX 330
STX 380
STX 430
STX 480
STX 530

Steiger 280
Steiger 330
Steiger 335
Steiger 380
Steiger 385
Steiger 430
Steiger 435
Steiger 480
Steiger 485
Steiger 530
Steiger 535

*84257309- Controllers Fault Codes Manual

Contents

-GENERAL
Standard Torque Specification
Safety
Lubrication And Maintenance
Specifications
-ENGINE
Engine Removal And Installation – STX380/430 Tractors
Air Induction System – STX380/430 Tractors
Viscous Fan Drive Test And Hydraulic Fan Drive Test
Engine Removal And Installation – STX280/330 Tractors
Engine Removal And Installation – STX480/530 Tractors
Air Induction System – STX280/330 Tractors
Air Induction System – STX480/530 Tractors
Engine Removal And Installation, Steiger 485 Tractors
Air Induction System, Steiger 385, 435 And 485 Tractors
-ELECTRICAL
Electrical System – How It Works And Troubleshooting
Battery Servicing And Testing
-STEERING
Steering Hand Pump & Priority/Control Valve Remove/Install
Steering System – How It Works
Center Console, Steering Column, Pedals And Switches
Steering Column Repair
Accusteer® Steering System – How It Works
Steering Hand Pump & Priority/Control Valve Remove/Install
-POWER TRAIN
Powershift Transmission Removal And Installation
Engine/Trans Drive Coupler Removal/Installation
16 Speed Powershift Transmission Repair
16 Speed Powershift Transmission How It Works
PTO Clutch Removal And Installation
PTO Drive Unit (Clutch) Repair
PTO System – How It Works And Troubleshooting
PTO Transfer Case Removal And Installation
PTO Dropbox Repair
Rear Drive Line And Carrier Bearing
PTO Driveline Hanger Bearing
Charge Pump Repair For 16 Speed Powershift Transmission
PTO Valve
Front Axle Removal And Installation
Front And Rear Axle Repair
Undercarriage/Drive Wheel Removal/Installation
16 Speed Powershift Transmission
24 Speed Manual Transmission
Front And Rear Axle Repair
Powershift Transmission Removal/Installation
Engine/Trans Drive Coupler Remove/Install
Front/Rear Axle Repair
-BRAKES
Power Brakes System
Service Brake Valve
-HYDRAULICS
How To Read Symbols In A Hydraulic Schematic
Hydraulic System How It Works With Troubleshooting
Hydraulic Gear Pump/Piston Pump Remove/Install
Gear Pump Removal And Installation
Pfc Axial Piston Pump Repair
Hitch System
Remote Electronic Hydraulic Systems
Pfc Piston Pump Removal And Installation
Axle Cooling And Lubrication System
Remote Auxiliary Valve And Coupler
-CHASSISS
Air Conditioning System
Cab Removal
Hood Removal And Installation
Radiator, Coolers And Condenser
Center Hinge Bearings & Connecting Link
Drawbar Removal And Installation
-CONTROLLERS
Electronic Controller Config, Calibration And Fault Code Retrival
Transmission Controller Fault Codes
Armrest Controller Fault Codes
Remote Hydraulics Controller Fault Codes
Steering Controller Fault Codes
Instrumentation Controller Fault Codes
AUX67 Controller Fault Codes
-HYDRAULIC / ELECTRICAL SCHEMATICS
