Case 385 484 584 684 784 884 Hydro 84 Operators Manual Tractor 1258519C7 manuals in PDF

$9.95

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Photo 8 - Case 385 484 584 684 784 884 Hydro 84 Operators Manual Tractor 1258519C7
Case 385 484 584 684 784 884 Hydro 84 Operators Manual Tractor 1258519C7 $9.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 126
Number: 1258519C7 (june 1982)
Bookmarks: Yes

Model

Case IH Tractor
385
484
584
684
784
884
Hydro 84

Contents

-ENGINE AND FUEL SYSTEM
Engine Oil
Checking the Crankcase Oil Level
Changing the Crankcase Oil
Changing the Filter
Diesel Fuel Storage
Tractor Fuel System
Injection Pump
Fuel Tank
Fuel Filters
Venting the System
Changing the Ether Start Fluid Container
-COOLING SYSTEM
General
Rust Protection
Adding Coolant to the System
Draining the System
Flushing the System
Filling the System
Cleaning the Radiator and Transmission Oil Cooler Cores
Fan Belt Tension
Changing the Fan Belt
-AIR CLEANING SYSTEM
General
Servicing the Air Cleaner
-ELECTRICAL SYSTEM
Cleaning and Servicing
the Battery
Electrolyte Level
Removing the Battery
Installing the Battery
Booster Batteries and Charging the Battery
Alternator
Lighting
Changing a Sealed Beam Unit
Changing a Work Light
Combination Turn Signals and Warning Lights
Fuses
Instrument Panel Warning Lamps
Trailer Socket
-HYDRAULIC CONTROLS FOR THREE-POINT HITCH
Position Control Lever
Adjustable Stop
Drop Response
Draft Control Lever
Raise Response Lever
Auxiliary Valves
Self Sealing Couplings
Thermal Expansion Pressure
Auxiliary Valve Operation
Neutral and Float Lockout
-THREE-POINT HITCH
Lift Links
Lower Links
Upper Link
Check Chains
Inside Check Chains
Outside Check Chains
Stabilizers
Coupling the Equipment
Uncoupling the Equipment
Swinging Drawbar
Storage Position
-FOUR WHEEL DRIVE ATTACHMENT
General
Operation
Four Wheel Drive Axle
Front Axle Static Loading
Safety Precautions
-FRONT WHEELS
Adjusting Tread Widths
Current Tractors with Four
Wheel Drive (ZF Axle)
Front Wheel Alignment (Tractors with Box Front Axle)
Front Wheel Alignment (Tractors with KIMCO Front Axle)

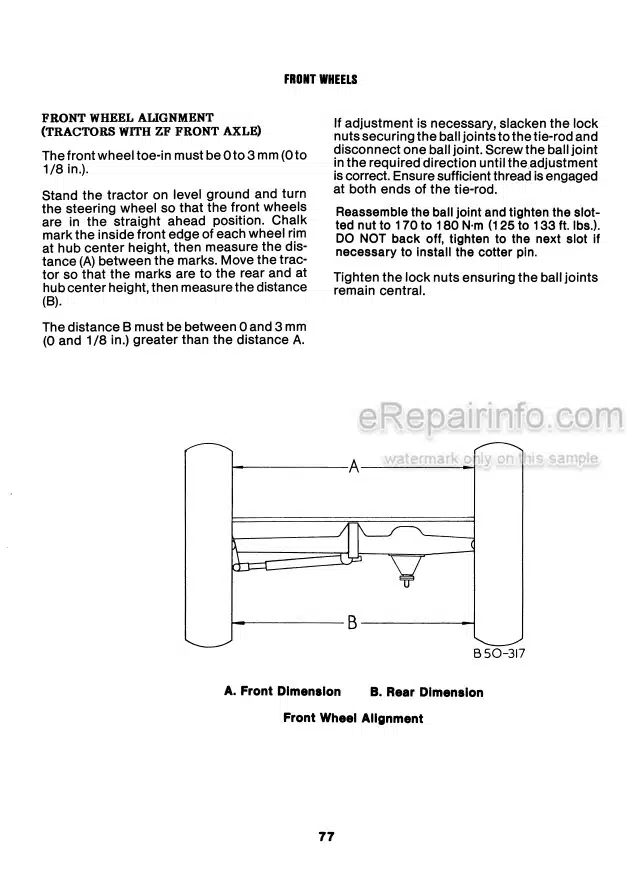

Front Wheel Alignment (Tractors with ZF Front Axle)
Front Wheel Alignment (Tractors with Cast Axle)
-REAR WHEELS
Utility Tractors
Row Crop Tractors
-TIRES
Inflation
Tire Combinations-Current Tractors With Four Wheel Drive
Tire Combinations-Current Tractors Without Four Wheel Drive
-BALLASTING THE TRACTOR
Front End Weights
Rear Wheel Weights
-COLD WEATHER PRECAUTIONS
Fuel System
Lubrication
Cooling System
-STORING THE TRACTOR
Storage
Removing From Storage
PREVENTIVE MAINTENANCE GUIDE
EXTRA EQUIPMENT AND ACCESSORIES
-LUBRICATION
Engine Oil
Recommended Engine Oil
Selecting the Viscosity of Engine Oil
Transmission and Hydraulics
Lubrication Fitting Grease
Transmission Fluid Level
Changing Transmission Fluid
Purging the System of Air
Filters
Transmission Filter
Hydrostatic Filter
Transmission Breather
Front Wheel Bearing Lubrication and Adjustment
Four Wheel Drive (ZF Axle)
Front Axle Fluid
Lubrication Points
LUBRICATION TABLE
LUBRICATION GUIDE

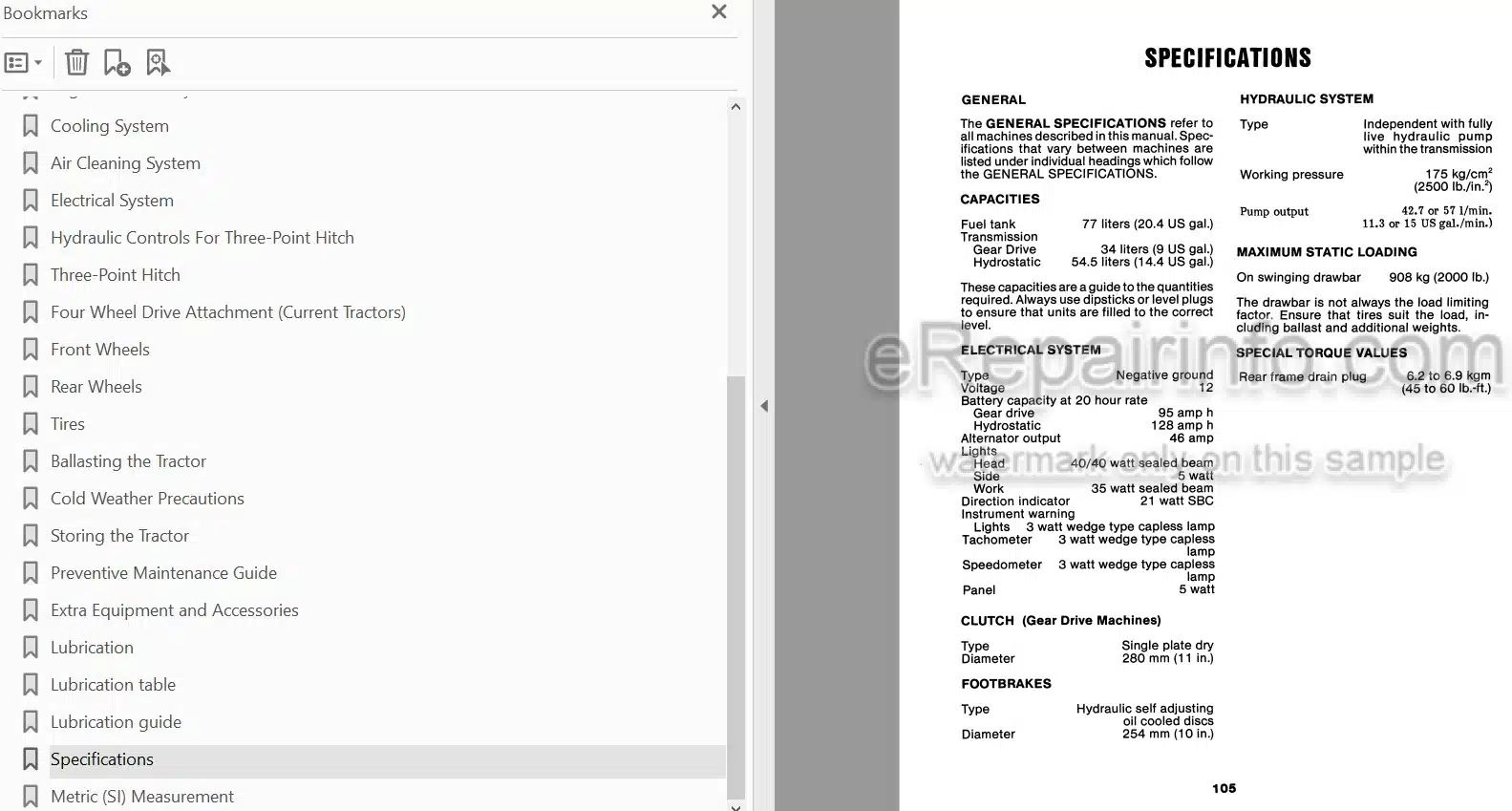

-SPECIFICATIONS
General
385 Tractor
484 Tractor
584 Tractor
684 Tractor
784 Tractor
884 Tractor
Hydro 84 Tractor
Tractors with Four Wheel Drive
Ground Speeds
CASE TECHNICAL MANUALS

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
