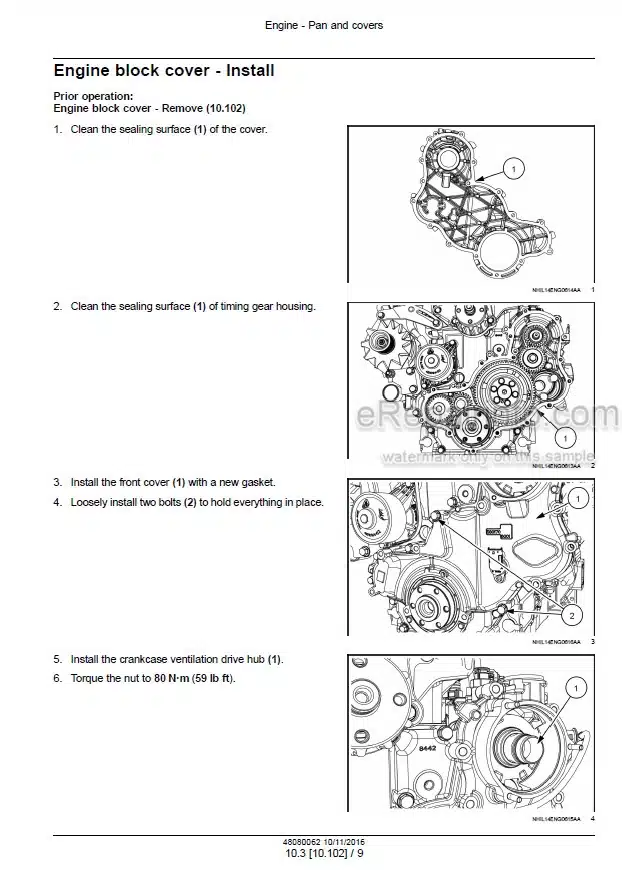

Factory Service Manual For Case CVT Farmall Tractors. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 1969
Number: 48080062 (november 2016)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Case Compact Tractor
FARMALL 40B CVT
FARMALL 45B CVT
FARMALL 50B CVT
PIN ZCME21001 and above
Contents
INTRODUCTION
-ENGINE
Engine And Crankcase
Cylinder Heads
Pan And Covers
Crankshaft And Flywheel
Connecting Rods And Pistons
Valve Drive And Gears
Balancer And Damper
Pump Drives
Fuel Injection System
Intake And Exhaust Manifolds And Muffler
Engine Lubrication System
Engine Cooling System
Fan And Drive
-TRANSMISSION
Continuously Variable Transmission (CVT)
-FOUR-WHEEL DRIVE (4WD) SYSTEM
Mechanical Control
-FRONT AXLE SYSTEM
Powered Front Axle
Front Bevel Gear Set And Differential
Final Drives
-REAR AXLE SYSTEM
Powered Rear Axle
Rear Bevel Gear Set And Differential
-POWER TAKE-OFF (PTO)
Rear Electro-Hydraulic Control
One-Speed Rear Power Take-Off (PTO)
Central Power Take-Off (PTO)
-BRAKES AND CONTROLS
Parking Brake Or Parking Lock
Mechanical Service Brakes
-HYDRAULIC SYSTEMS
Hydraulic Systems
Fixed Displacement Pump
Remote Control Valves
Reservoir, Cooler, And Filters
-STEERING
Hydraulic Control Components
Pump
Cylinders
-CAB CLIMATE CONTROL
Heating
Ventilation
Air Conditioning
-ELECTRICAL SYSTEMS
Electrical System
Fuel Injection System
Harnesses And Connectors
Engine Starting System
Alternator
Battery
External Lighting
Warning Indicators, Alarms, And Instruments
Wiper And Washer System
Electronic Modules
Fault Codes
-PLATFORM, CAB, BODYWORK, AND DECALS
Engine Hood And Panels
Fenders And Guards
Pneumatically-Adjusted Operator Seat
Cab
Cab Interior
Cab Doors And Hatches
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
