Case 480D 480LL Service Manual Loader Backhoe 9-69260 manuals in PDF

Factory Service Manual For Case Loader Backhoe. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 1200
Number: 9-69260 (july 1998)
Bookmarks: Yes

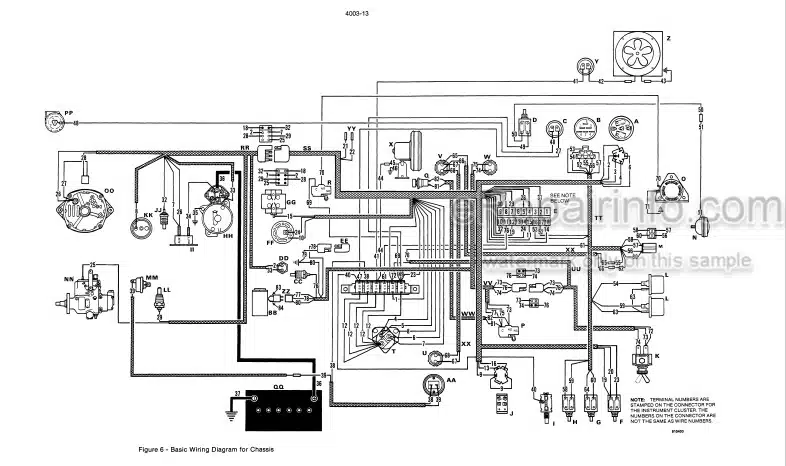

Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Case Loader Backhoe
480D
480LL

Contents

-GENERAL

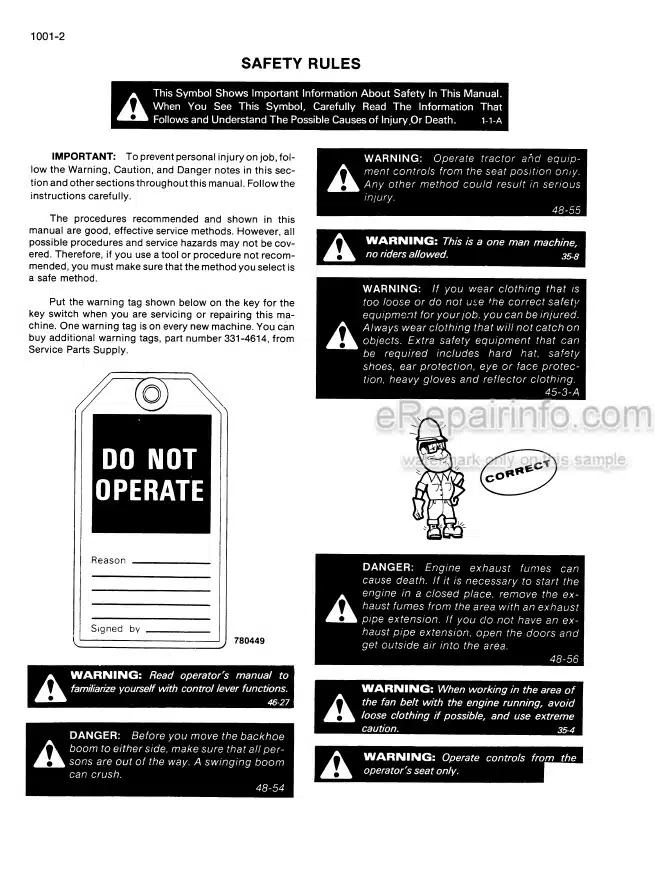

Safety Rules, Service Manual Introduction, and Torque Specifications
Maintenance and Lubrication

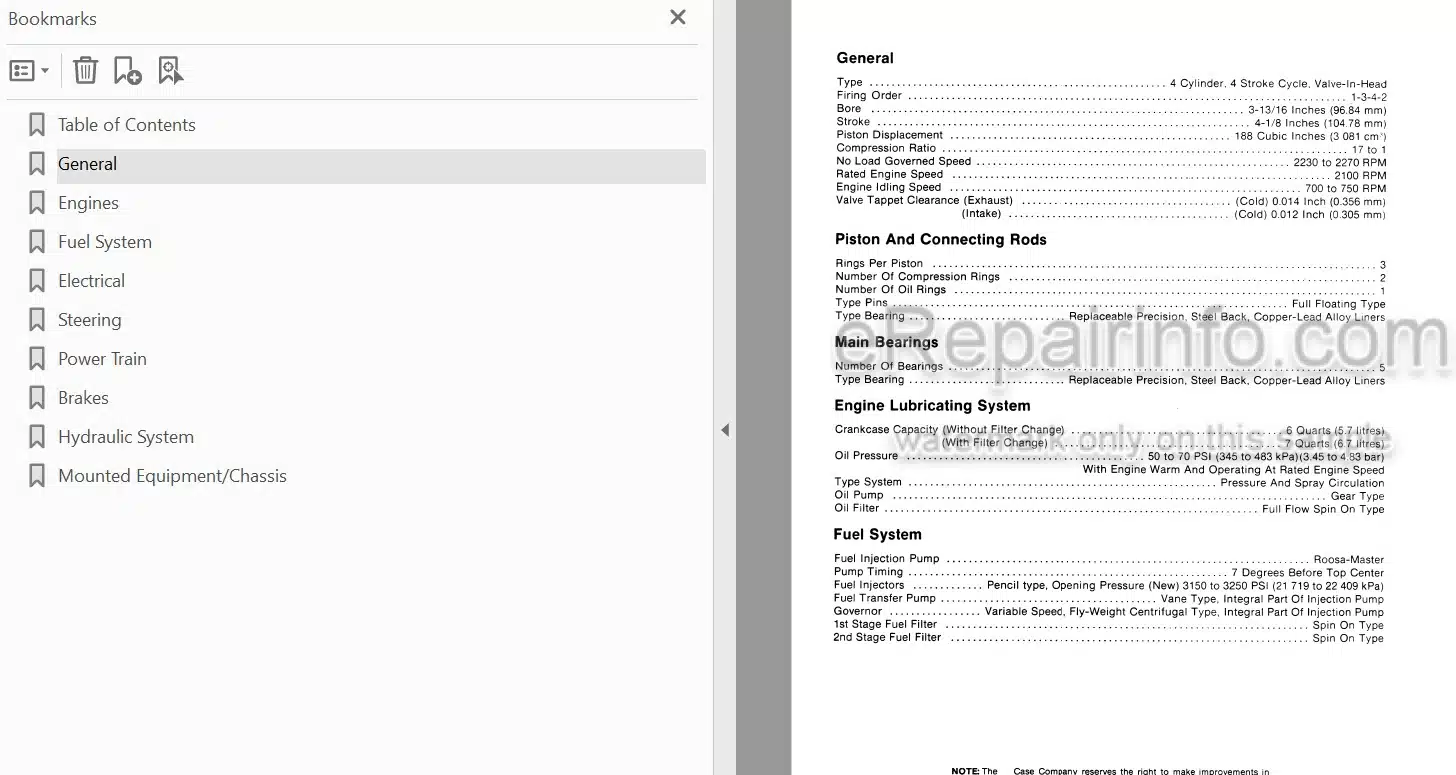

General Engine Specifications
Detailed Engine Specifications
-ENGINES
Engine Diagnosis
Engine Tune-Up
Engine Stall Tests
Engine Removal and Installation
Engine Accessories

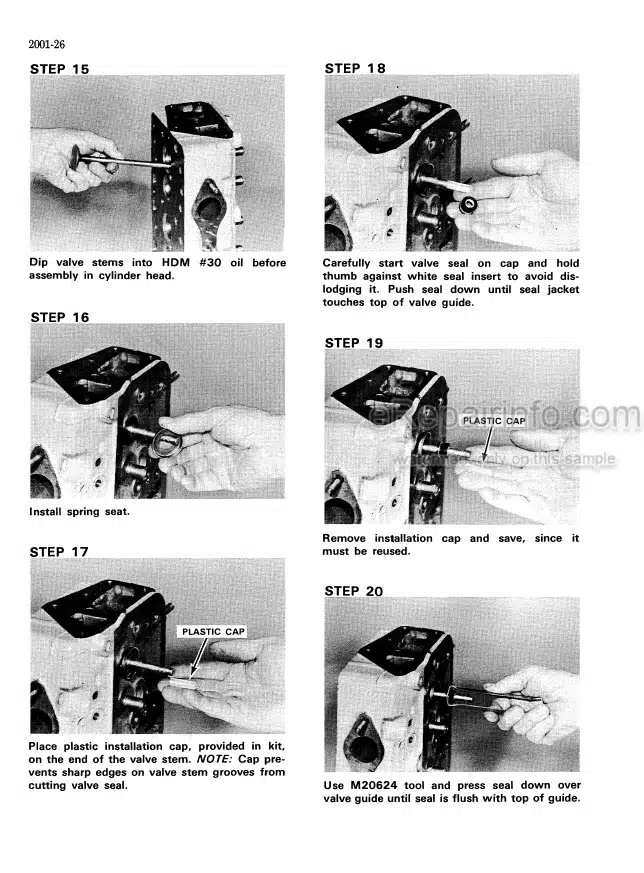

Cylinder Head Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Bearings, Flywheel and Oil Seals
Oil Pump
Cooling System
Engine Lubrication
-FUEL SYSTEM
Fuel Filters
Fuel Injection Pump
Fuel Injectors
Fuel Lines, Fuel Tank, and Engine Controls
-ELECTRICAL
Electrical System Troubleshooting
Wiring Diagrams
Batteries
Starter
Alternator
Instrument Cluster and Instrument Panel
-STEERING
Steering System Troubleshooting
Steering Pump
Steering Control Valve and Steering Column
Steering Cylinders
Front Axle
-POWER TRAIN
Power Shuttle Troubleshooting

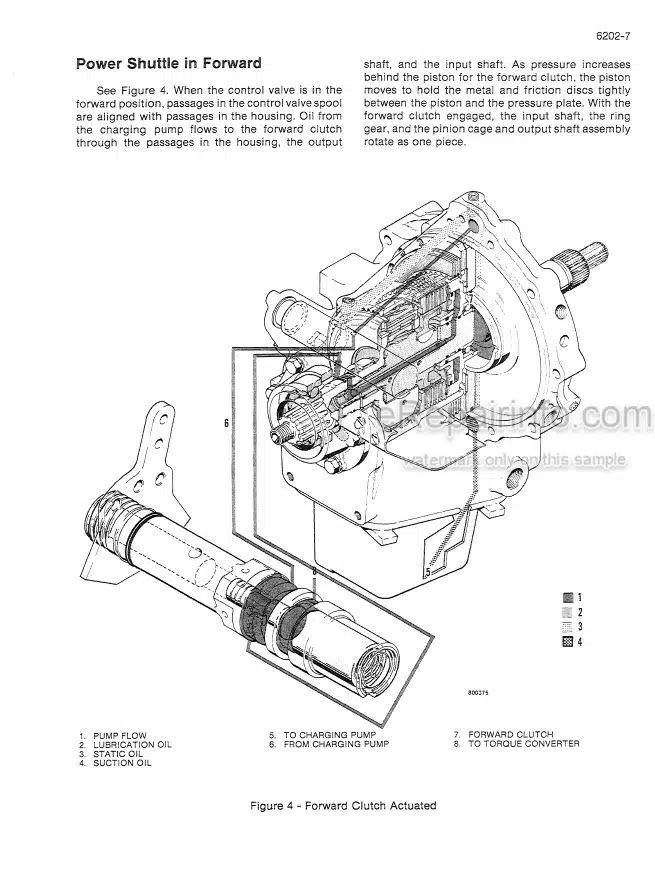

Power Shuttle and Torque Converter
Power Shuttle Controls
Transaxle Removal and Installation
Transaxle and Differential Lock
Driveshaft
Wheels and Tires
-BRAKES
Brake Pedals and Linkage, Master Cylinder
and Parking Brake
Self Adjusting Differential Brakes
-HYDRAULIC SYSTEM
Hydraulic System Troubleshooting
Removing Contamination With The
Case Portable Filter
Hydraulic Pump
Loader Control Valves
Remote Relief Valve Couplings
Three Point Hitch Control Valves
Cylinders
Backhoe Control Valve
Stabilizer Control Valve
Boom Lock System
-MOUNTED EQUIPMENT/CHASSIS
Loader
Three Point Hitch
Cab and Canopy
Operators Seats, Seat Belts, and Supports
26 Backhoe
Decals and Painting
Noise Control

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
