Case 521F Tier II Service Manual Wheel Loader 47476327 manuals in PDF

$29.00

Factory Service Manual For Case Wheel Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 9 - Case 521F Tier II Service Manual Wheel Loader 47476327
Case 521F Tier II Service Manual Wheel Loader 47476327 $29.00
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Service Manual For Case Wheel Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 991
Number: 47476327 (july 2013)

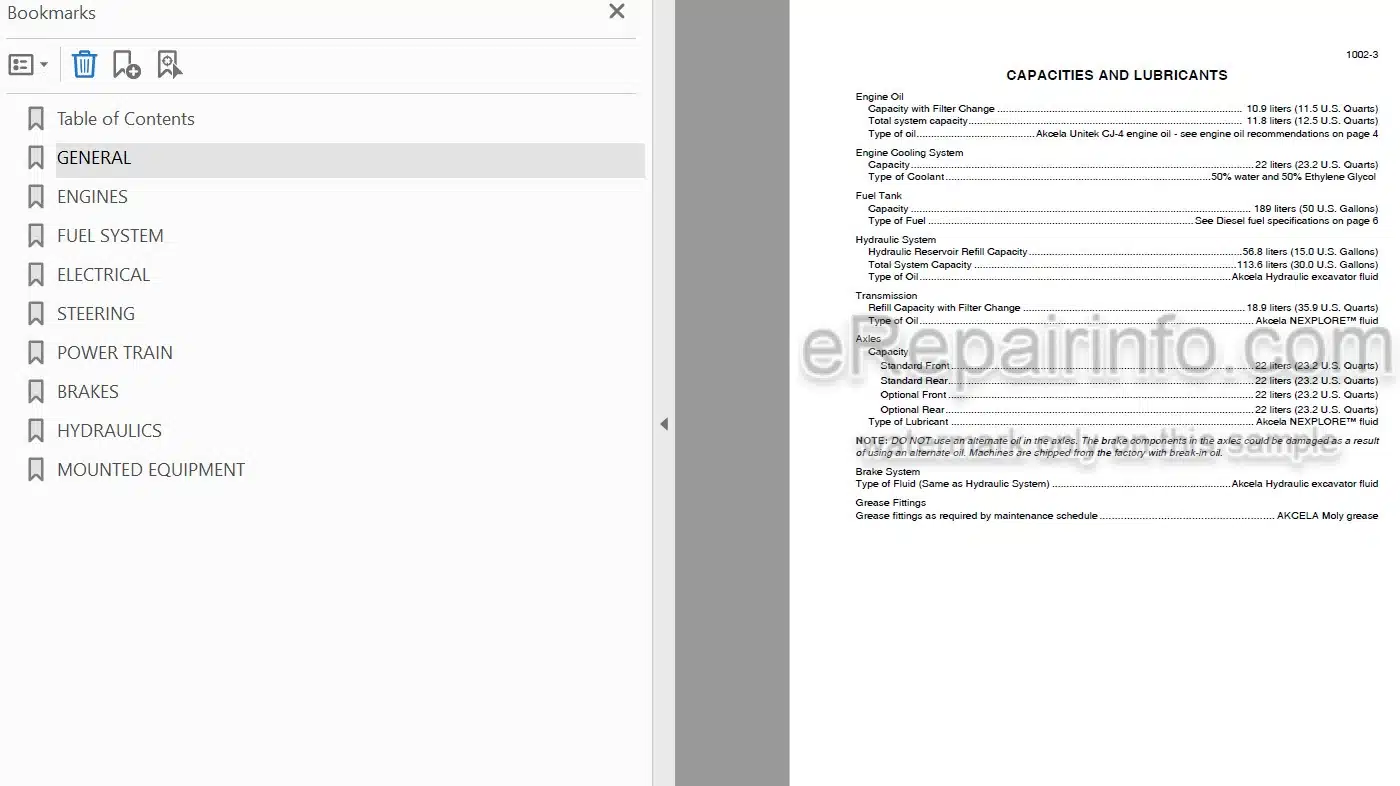

Bookmarks: Yes
Searchable: Yes

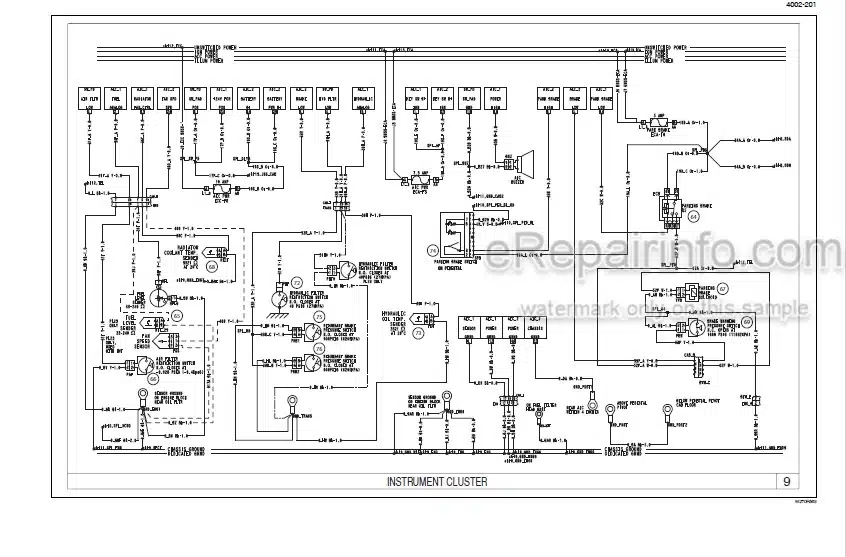

Wiring Diagrams: Yes

Model

Case Wheel Loader
521F
Tier II

Contents

-GENERAL
Standard Torque Specifications
Fluids and Lubricants
Metric Conversion Chart
-ENGINES
Engine and Radiator Removal and Installation
Stall Tests
After Cooler
For Engine Repair, See the Engine Service Manual 84392428
-FUEL SYSTEM
For Fuel System Repair, See the Engine Service Manual 84392428
-ELECTRICAL
Removal and Installation of Starter and Alternator
Electrical Specifications and Troubleshooting – Electrical Schematic
Batteries
Instrument Cluster
-STEERING
Removal and Installation of Steering Components
Steering Specifications, Pressure Checks, and Troubleshooting
Steering Cylinders
Center Pivot
Auxiliary Steering Motor and Pump
Joystick Steering System (JSS)
-POWER TRAIN
Removal and Installation of Power Train Components
Transmission Specifications, Pressure Checks, and Troubleshooting
Transmission
Front Axle
Rear Axle
Drive Shafts, Center Bearing, and Universal Joints
Wheels and Tires
Transmission Control Valve
-BRAKES
Removal and Installation of Brake Components
Hydraulic Brake Troubleshooting
Brake Pump
Brake Accumulators
Parking Brake
-HYDRAULICS
How to Read Hydraulic Schematics
Removal and Installation of Hydraulic Components
Hydraulic Specifications, Troubleshooting, and Pressure Checks
Cleaning the Hydraulic System
Loader Control Valve
Cylinders
Coupler Solenoid Locking Valve
Ride Control Accumulator
Ride Control Valve
-MOUNTED EQUIPMENT
Air Conditioning Troubleshooting and System Checks
Air Conditioner System Service
Removal And Installation Of Air Conditioning And Heater Components
Loader
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF)
Cab Glass Installation
HYDRAULIC SCHEMATIC FOLDOUT

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.
