Case 95U 105U 115U Farmall Efficient Power Service Manual Tractor 84568025 manuals in PDF

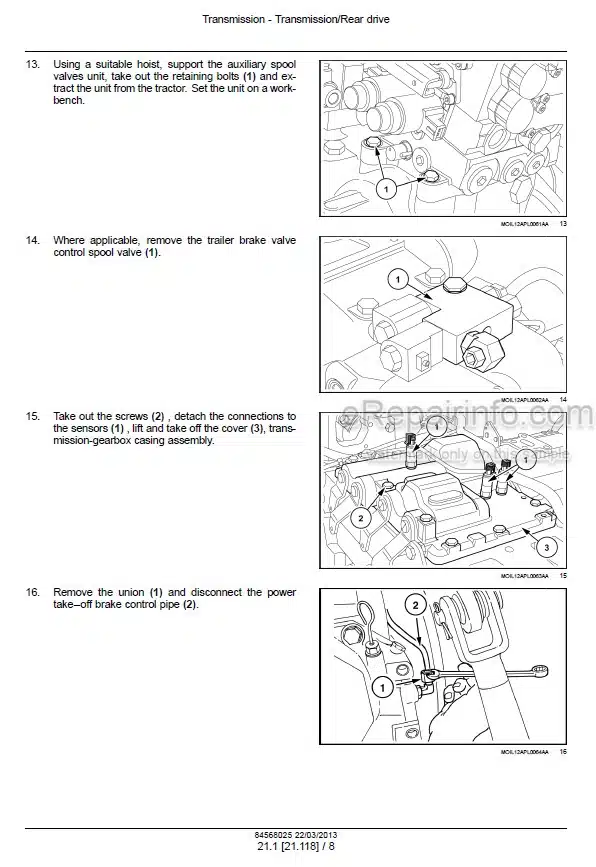

Factory Service Manual For Case Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 2155
Number: 84568025 (march 2013)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

Case Tractor
Farmall 95U Efficient Power
Farmall 105U Efficient Power
Farmall 115U Efficient Power

Contents

INTRODUCTION
-ENGINE
Engine And Crankcase
Fan And Drive
Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) Exhaust Treatment
-CLUTCH
Slip Clutch Or Flywheel Damper
-TRANSMISSION
Transmission/Rear Drive
Power Shuttle Transmission
Power Shuttle Transmission Lubrication System
Power Shuttle Transmission External Controls
Transmission/Rear Drive Internal Components
Power Shuttle Transmission Internal Components
Gearbox Internal Components
Creeper
Hi-Lo Unit
-FOUR-WHEEL DRIVE (4WD) SYSTEM
Electro-Hydraulic Control
Four-Wheel Drive (4WD) Gearbox
Drive Shaft
-FRONT AXLE SYSTEM
Powered Front Axle
Front Bevel Gear Set And Differential
Final Drive Hub, Steering Knuckles, And Shafts
-REAR AXLE SYSTEM
Powered Rear Axle
Rear Bevel Gear Set And Differential
Planetary And Final Drives
-POWER TAKE-OFF (PTO)
Rear Electro-Hydraulic Control
Three-Speed Rear Power Take-Off (PTO)
Two-Speed Rear Power Take-Off (PTO)
-BRAKES AND CONTROLS
Hydraulic Service Brakes
Front Axle Brake
Parking Brake Or Parking Lock
Trailer Brake Hydraulic Control
-HYDRAULIC SYSTEMS
Hydraulic Systems
Hydraulic Hand Control
Remote Control Valves
Three-Point Hitch Control Valve
-HITCHES, DRAWBARS, AND IMPLEMENT COUPLINGS
Rear Three-Point Hitch
-STEERING
Hydraulic Control Components
Pump
Cylinders
-WHEELS
Front Wheels
-ELECTRICAL SYSTEMS
Electrical System
Harnesses And Connectors
Engine Starting System
Alternator
Battery
Electronic Modules
Transmission Control System
Cab Hitch Controls
Rear Three-Point Hitch Electronic Control System
Warning Indicators, Alarms, And Instruments
Fault Codes
-PLATFORM, CAB, BODYWORK, AND DECALS
Cab
Engine Hood And Panels

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
