Case CX80 Tier 3 Operators Manual Excavator 87490339 manuals in PDF

$14.95

Factory Operators Manual For Case Excavator. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Photo 7 - Case CX80 Tier 3 Operators Manual Excavator 87490339
Case CX80 Tier 3 Operators Manual Excavator 87490339 $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operators Manual For Case Excavator. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 196
Number: 87490339 (issued 2007)
Bookmarks: Yes
Searchable: Yes

Model

Case Excavator
CX80
Tier 3

Contents

TO THE OWNER
SAFETY LABELS
FOR SAFE DRIVING
-SAFETY SECTION
Precaution Identification Plates (Decals)
Prior to Operation
Confirmation of Safety Items
During Operation
While Traveling
After Operating
While Transporting
Before Regular Inspection & Maintenance
Inspection and Maintenance
-INSTRUMENTS AND CONTROLS
Location Of Components
Right Console
Monitor & Switch Panel
Monitor Display
Switch Panel
Left Console
Air Conditioner
Explanation Of Device

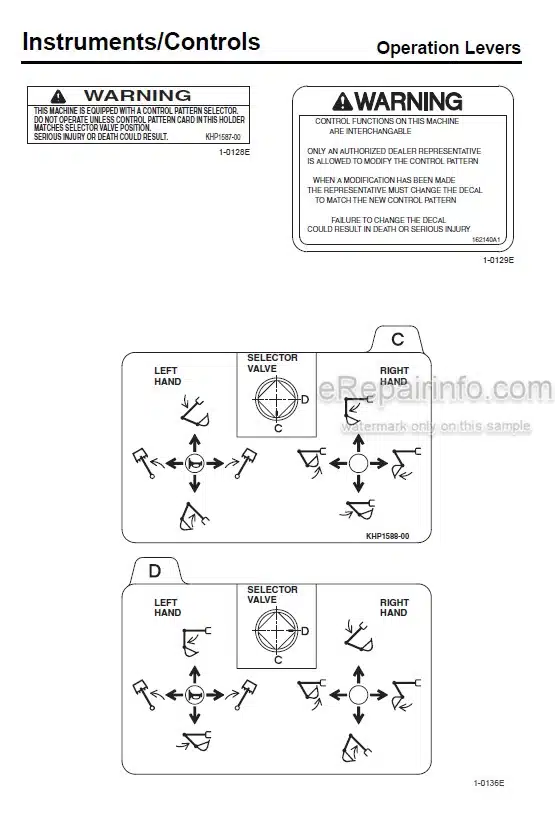

Operation Levers
Operator’S Seat
Operator’S Cab
Fuses
Explanation Of Device
-OPERATING INSTRUCTIONS
Operation of New Machine
Daily Inspections
Starting and Stopping the Engine
Warm-up Operation
Operations (Traveling)
Operations (Swing)
Operations (Attachment)
Operations
Operating Instructions (Cautions)
Operating Instructions (Procedures)
Bucket: Turning Over and Replacement
Operating in Cold Climates
Operating under Extreme Conditions
Transportation
Storing
-INSPECTIONS AND MAINTENANCE
General Cautions
Periodic Maintenance Check List
Grease / Oil and Elements
Inspection Prior to Operation
Greasing Attachments
Fuel System
Engine
Bolt Torque
Hydraulic Oil
Battery
Upper Frame
Travel Unit
Bucket
Air Conditioner
Routine Replacement Safety Parts
Troubleshooting
Contacting Us
-SPECIFICATIONS
Conversion Factors

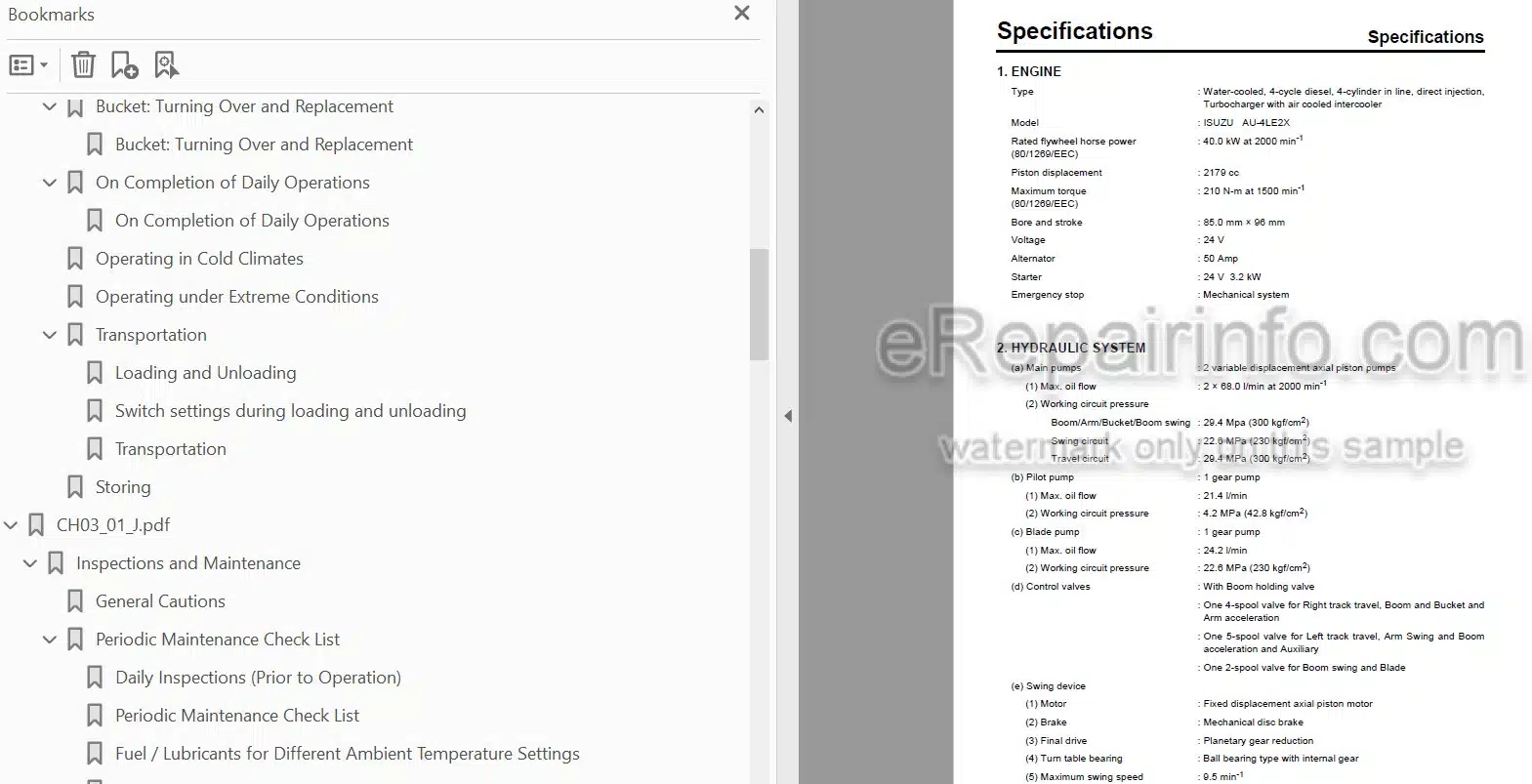

Specifications
Load Lifting Operation

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
