Case IH 1594 Operators Manual Tractor manuals in PDF

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 235
Number: 9-9824

Model

Case IH Tractor
1594

Contents

TO THE OWNER
-SAFETY
Safety Rules
Before Starting
Operation
Service
HAND SIGNALS
DECALS
SERIAL NUMBERS

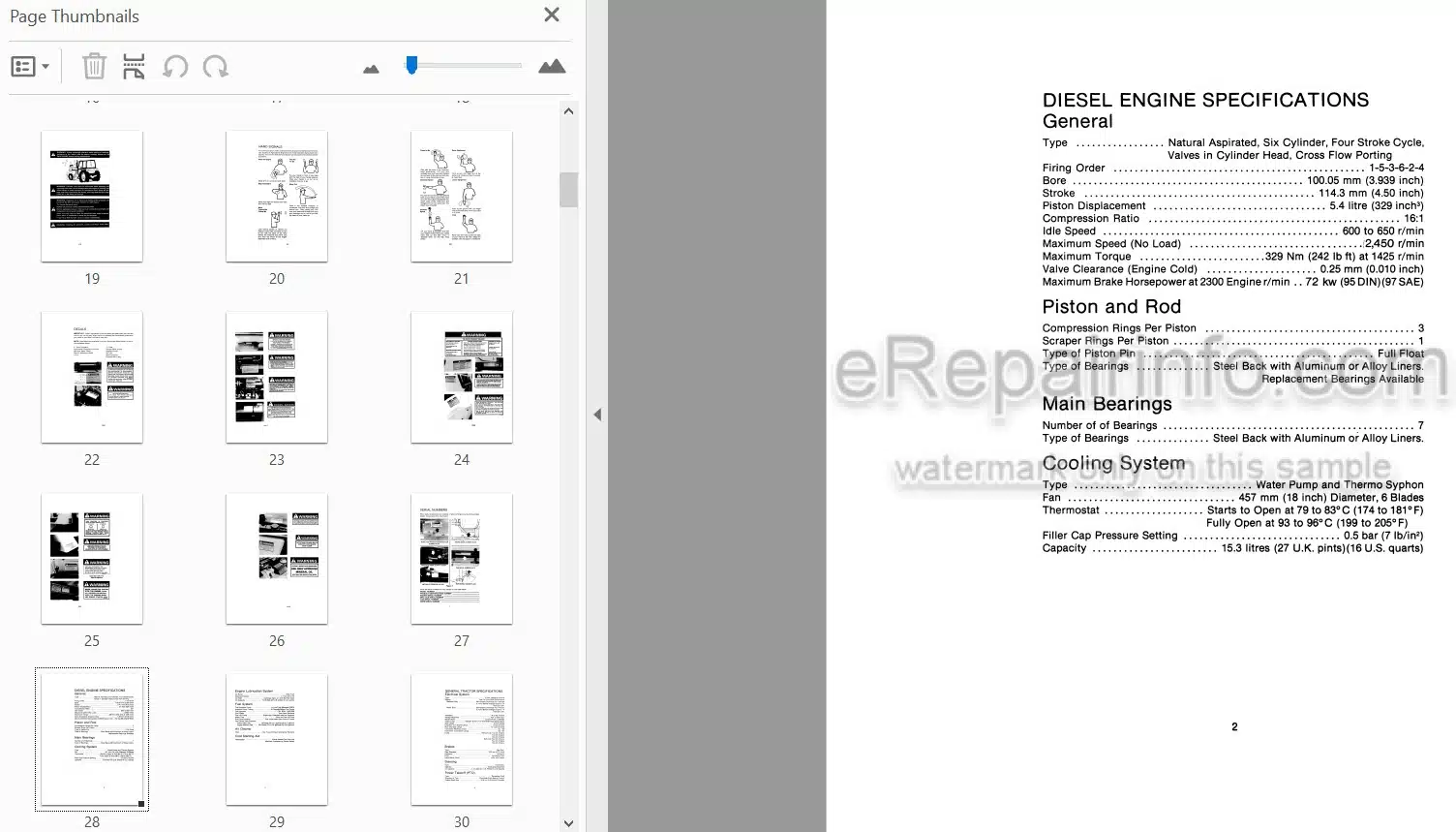

DIESEL ENGINE SPECIFICATIONS
GENERAL SPECIFICATIONS
APPROXIMATE TRACTOR SPEEDS
FUEL SPECIFICATIONS
APPROXIMATE MEASUREMENTS
APPROXIMATE TRANSPORT WEIGHTS
TIRE AND WHEEL EQUIPMENT
TIRE ARRANGEMENTS – MFD
FRONT WHEEL TREAD POSITIONS – 2WD
FRONT WHEEL TREAD POSITIONS – MFD
REAR WHEEL TREAD POSITIONS
POWER ADJUST REAR WHEEL
TREAD POSITIONS
-LUBRICATION
Engine Hourmeter
Diesel Engine Oil
Capacities and Approved Lubricants
Lubrication Chart

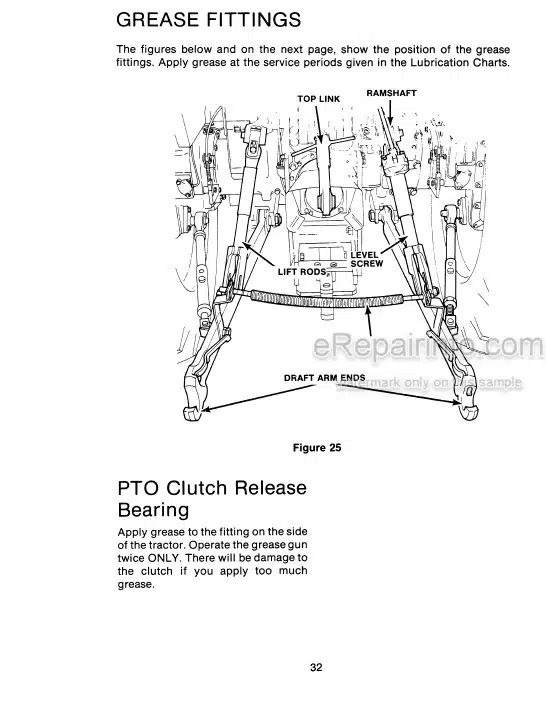

Grease Fittings
Engine Oil Change
Engine Oil Filter Change
Transmission Oil Level Check & Change
Transfer Gear Box Oil Level
Hydraulic Oil Filter Change
Differential Oil Level – MFD
Front Hubs Oil Level – MFD
-OPERATING INSTRUCTIONS
Run-In Procedure
Before Operating The Tractor
Towing
How to Transport the Tractor
Operating Instruments
Operating Lamps
Operating Controls Tractor Without Cab
Operating Controls
Tractor With Cab
Operators Seat
Seat Belts
Amber Warning Lamps, Direction Turn Signals & SMV Symbol
Implement Warning Lamps,
SMV Symbol
Operating On The Road
Auxiliary Outlet Socket
Operating The Engine
Starting Procedure
Stopping the Engine
Cold Temperature Operation
Differential Lock
Power Shift Transmission
Synchromesh Transmission
Mechanical Front Drive (MFD)
Power Takeoff
Drawbar
Pick-Up Hitch/Drawbar
Three Point Linkage
Jeffes Type Linkage
Lift Rod Adjustment
Leveling Lever Adjustment
Sway Blocks
Mechanical Floatation
Stabilizer Bar Adjustment
Top Link Adjustment
Spacer Bar Adjustment
Operating Jeffes Linkage
Operating the Linkage
Operating Above Ground
Operating External Equipment
Hydraulic Hose Couplers
Transmission Oil Cooler
Front Axle Adjustment – 2WD
Front Axle Adjustment – MFD
Tractor Ballast
Front End Weights
Rear Wheel Weights
Liquid Ballast
Measuring Wheel Slip
ROLL OVER PROTECTION STRUCTURE ROPS
-PREVENTATIVE MAINTENANCE
First 20 Hour Service
Raising Engine Cover
Removing Front Panel
Removing Side Panels
Service Periods
Daily 10 Hour Inspection
50 Hour Service
100 Hour Service
200 Hour Service
400 Hour Service
800 Hour Service
Air Cleaner
Air Conditioning
Alternator
Auxiliary Battery
Battery
Brake Adjustment
Brake Fluid
Cab Air Filter
Clutch Adjustment
Coolant
Compressor Belt
Differential – MFD
Engine Cover
Engine Oil
Engine Oil Filter
Final Drives
Front Hubs – MFD
Fuel Filters
Fuel Pump Water Trap
Fuses
Injectors
Lamps
Power Steering
ROPS
Seat Belt
Transmission Oil
Transmission Filter
Valve Clearances
Wheel Nuts
OPTIONAL EQUIPMENT
CASE TECHNICAL MANUALS

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
