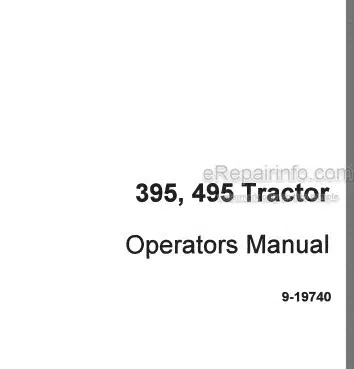

Case IH 395 495 Operators Manual Tractor manuals in PDF

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 192
Number: 9-19740 (august 1991)
Bookmarks: Yes

Model

Case IH Tractor
395
495

Contents

-SAFETY/ DECALS
Decals
Roll Over Protection Structure
Safety
Safety Rules
-INSTRUMENTS/ CONTROLS
Instrument Cluster
Operating Controls
LH Control
Park Brake
RH Control
Seat without Suspension
Seat with Mechanical
-OPERATING INSTRUCTIONS
Amber Warning Lamps
Before Starting Engine
Cold Temperature Operation
Differential Lock
Direction Turn Signals
Drawbar
Normal Starting Procedure
Operating the Transmission
Power Takeoff
Run-In Procedure
Seat Belts
SMV Symbol and Warning
Service Indicator Lamps and Gauges
Starting the Engine using Booster Batteries
Stopping the Engine
Towing
Transporting the Tractor
-FIELD OPERATION
Auxiliary Power Connections
Drawbar Preparation
ROPS Operation
Rear Hitch
Operation
Remote Hydraulics

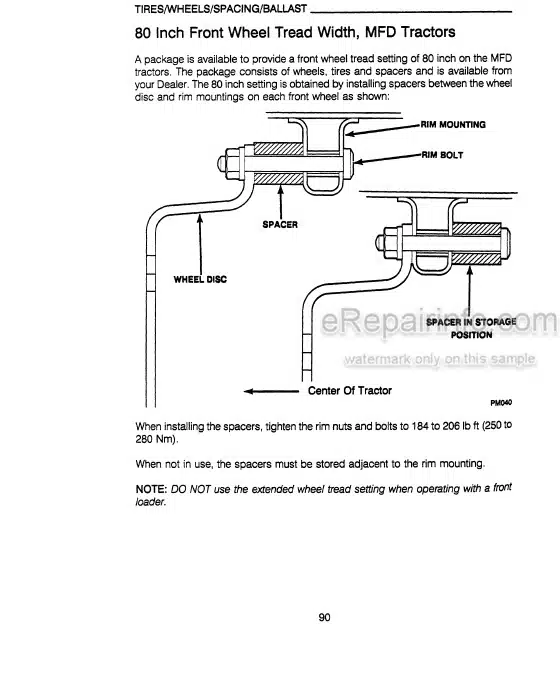

-TIRES/ WHEELS/ SPACING/ BALLAST
Fender Mounting Positions
Front to Rear Tire Size Combinations
Front Wheel Mounting Torques
Installing Axle Oscillation Stops
Rear Wheel Mounting Torques
Rear Wheel Tread Positions
Steering Stops (MFD)
Tire and Wheel Equipment
Toe-In
Tractor Ballast
-LUBRICATION/ FILTERS/ FLUIDS
Air Induction System
Capacities
Cooling System
Engine Hour Meter
Engine Lubrication
Fluid Levels and Filters
Front MFD Axle Lubrication
Front Wheel Bearings – Two Wheel
Fuel Sustem
Grease Points
Lubrication
System Lubrication
Transmission Lubrication
-MAINTENANCE/ ADJUSTMENTS
Brake Pedal Height Adjustment
Cooling System
Engine Clutch Pedal Height Adjustment
Hood and Side Covers
Seat Belt Inspection
Parking Brake Adjustment
Removing Air from the Brake System
Valve Clearances
-ELECTRICAL SYSTEM
Alternator Charging Circuit
Batteries
Fuses and Relays
Buib and Lamp Replacement Tail/Amber Warning/Turn Indicator Lamps
Specifications
-STORAGE
Removing from Storage
Storage Preparation

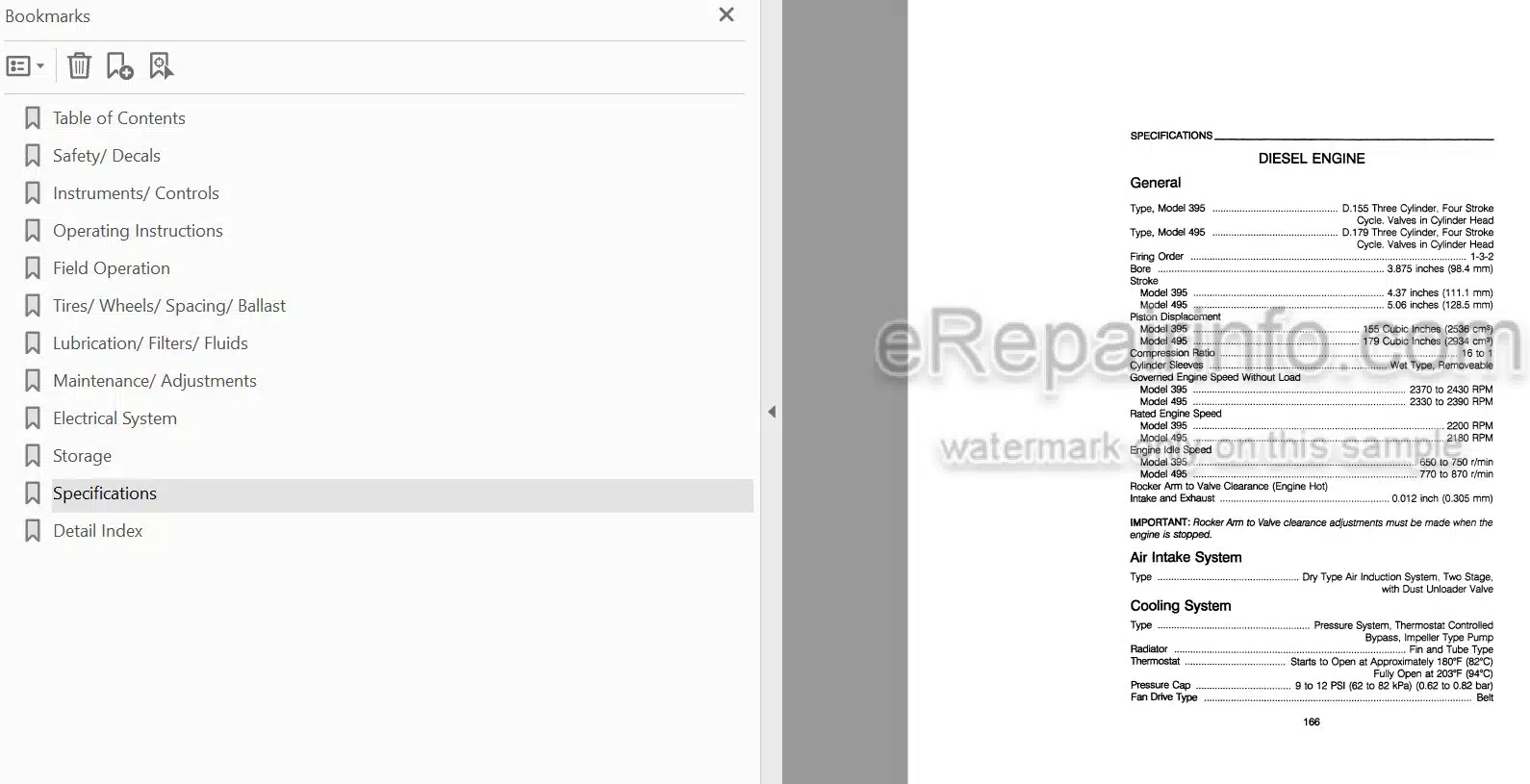

-SPECIFICATIONS
Approximate Overall Measurements
Maximum Recommended
Engine
General Machine
Travel Speeds
DETAIL INDEX

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
