Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 244
Number: 9-9861
Bookmarks: Yes
Model
Case IH Tractor
4894
Contents
TO THE OWNER
-SAFETY
Safety Rules
Before Starting
Operation
Service
HAND SIGNALS
DECALS
SERIAL NUMBERS

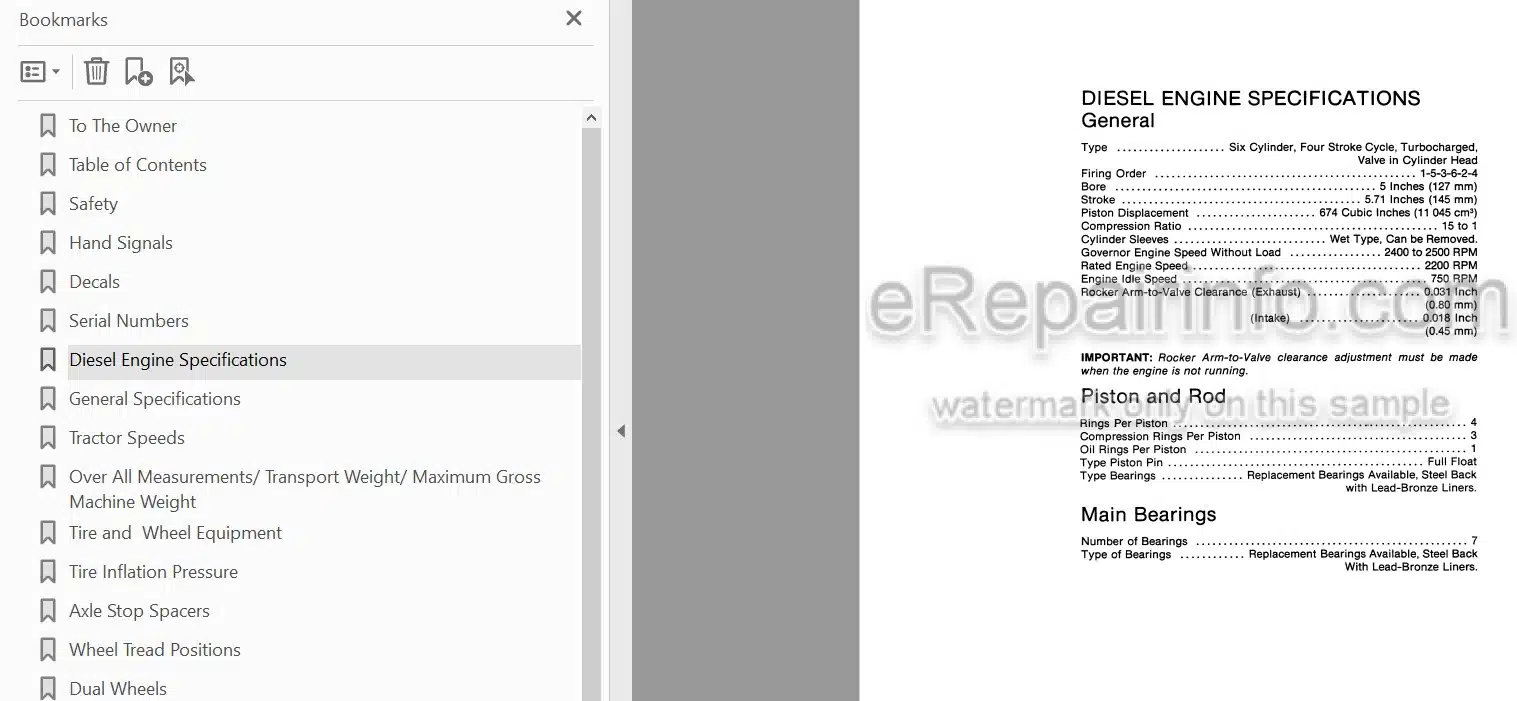

DIESEL ENGINE SPECIFICATIONS
GENERAL SPECIFICATIONS
TRACTOR SPEEDS
OVER ALL MEASUREMENTS
TRANSPORT WEIGHT
MAXIMUM GROSS MACHINE WEIGHT
TIRE AND WHEEL EQUIPMENT
TIRE INFLATION PRESSURE
AXLE STOP SPACERS
WHEEL TREAD POSITIONS
DUAL WHEELS
FUEL SPECIFICATIONS
FUEL CONDITIONER
-LUBRICATION
Engine Hourmeter
Engine Lubrication
Lubrication Chart
Engine Oil Change
Engine Oil Cleaner
Turbocharger Oil Filter
Rear Steering Valve Filter
Rear Steering Hydraulic Oil Filter
Transmission Oil Level
Check & Change

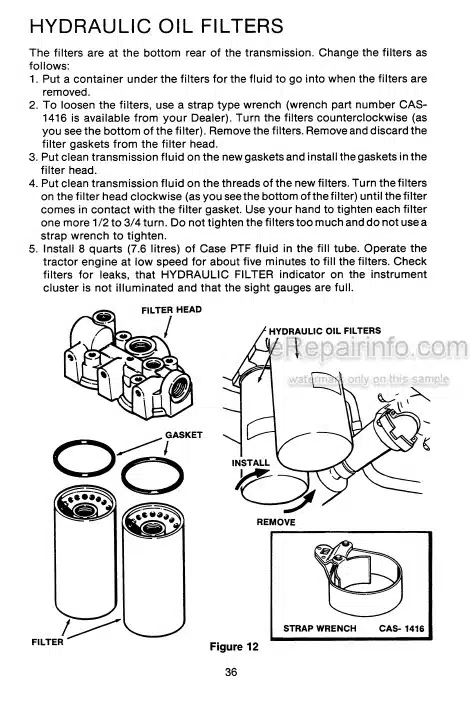

Hydraulic Oil Filters
Planetary Oil Level Check & Change
Differential Oil Level Check & Change
Tractor Brakes
TOWING
-OPERATING INSTRUCTIONS
Run-In Procedure
Before Starting the Engine
True Ground Speed Sensor
Digital Instrument Cluster
Operating Controls
Normal Starting Procedure
Stopping The Engine
Cold Temperature Operation
Preparing Tractor For Operating in Cold Temperatures
Cold Temperature Starting
Power Shift Transmission
Power Takeoff
Drawbar
Three Point Hitch System
Hitch System Adjustments
Hitch Operation
Hitch Coupler – Category III
Remote Hydraulic Control
Remote Cylinder
Hydraulic Cylinder Jack Pads
Wheel Mounting
Wheel Rim Adjustment & Mounting
Wheel Positions and Clamp Adjustment
Dual Wheel Mounting
Tire Mounting
Loads Matched to Tractor
Tractor Ballast
-PREVENTIVE MAINTENANCE
Hood and Side Panels
Cooling System
Fuel System
Air Induction System
Neutral Start Switch Service
Park Brake Adjustment
Electrical System
Batteries
Roll Over Protective Structure (ROPS)
Operators Cab
Valve Tappet Adjustment
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
Reviews
There are no reviews yet
