Case IH Farmall 105U 115U Operators Manual Tractor manuals in PDF

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 308; 304
Number: 47873733 (february 2016); 48073073 (december 2016)
Bookmarks: Yes
Searchable: Yes

Model

Case IH Tractor
Farmall 105U
Farmall 115U
PIN ZEJK14960 and above

Contents

-GENERAL INFORMATION
Note To The Owner
Proposition 65
Intended Use
Electromagnetic Compatibility (EMC)
Manual Scope And Required Training Level
Metric And Imperial Units Abbreviations
Identification Plates
Operator’s Manual Storage
Machine Orientation
Exhaust Gas Recirculation (EGR) System
-SAFETY INFORMATION
Safety Rules And Signal Word Definitions
Safety Rules – General Information
Safety Rules – Maintenance
Safety Rules – Wheels And Tires
Safety Rules – Fire Extinguisher
Safety Rules – Battery
Safety Rules – Instructor Seat
Safety Rules – Operator Presence System
Safety Rules – Power Take-Off (PTO)
Safety Rules – Reflectors And Warning Lights
Safety Rules – Seat Belts
Safety Rules – Operator Protective Structure
Safety Rules – HVAC System
Safety Rules – Personal Protective Equipment (PPE)
Safety Rules – “Do Not Use” Sign
Safety Rules – Hazardous Chemicals
Safety Rules – Near Utilities
Safety Rules – In The Event Of Electrical Storms
Safety Rules – Mounting And Dismounting The Machine
Safety Rules – Lifting And Overhead Loads
Safety Rules – Front End Loader
Ecology And The Environment
Towing The Tractor For Recovery
Tractor Jacking Points
Burn Prevention
Wheel Chocks
Safety Signs
-CONTROLS AND INSTRUMENTS
Access To Operator’s Platform
Operator’s Seat
Instructor’s Seat
Forward Controls
Left-Hand Side Controls
Right-Hand Side Controls
Exterior Controls
Display Settings
-OPERATING INSTRUCTIONS
Commissioning The Unit
Starting The Unit
Stopping The Unit
Moving The Unit
-TRANSPORT OPERATIONS
Road Transport
Recovery Transport
-WORKING OPERATIONS
General Information
Transmission

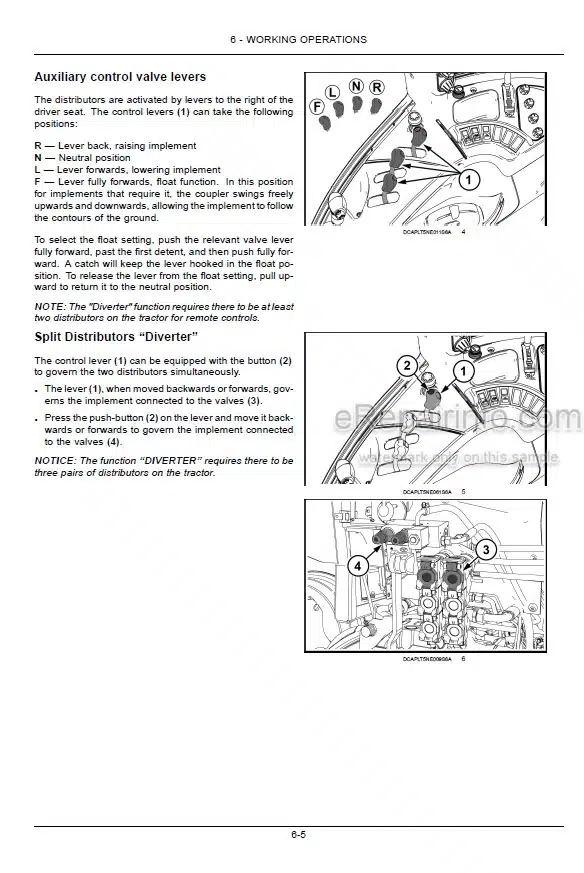

Remote Control Valves
Joystick For Control Valves
Rear Power Take-Off (PTO)
Front Power Take-Off (PTO)
Rear Hydraulic Lift
Front Hydraulic Lift
Rear Three-Point Hitch
Three-Point Hitch Front

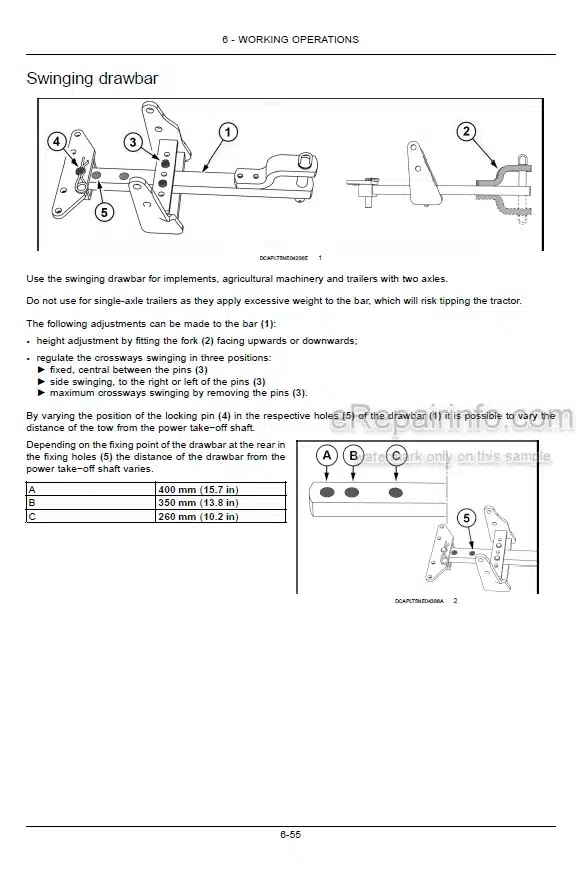

Towbar
Tires And Wheels
Tread And Fender Settings – Standard MFD Axles
Ballasting
Power Sockets
-MAINTENANCE
General Information
Maintenance Chart
As Required
At Warning Message Display
Every 10 Hours Or Daily
After The First 50 Hours Of Operation
Every 50 Hours
Every 100 Hours
Every 300 Hours
Every 600 Hours
Every 1200 Hours Or Annually
Every 1200 Hours Or Two Years
Every Two Years
Every 3600 Hours
Every 3600 Hours Or Four Years
Electrical System
Fuse And Relay Locations
Storage
PTO
-TROUBLESHOOTING
Fault Code Resolution
Symptoms
-SPECIFICATIONS
Dimensions And Weights
Maximum Permitted Loads On Front And Rear Axle
Consumables
Capacities
Engine Oil Temperature Chart – Recommended Engine Oil For Operating Temperature Ranges
16X16 Transmission Speed Table
32 X 32 Transmission Speed Table

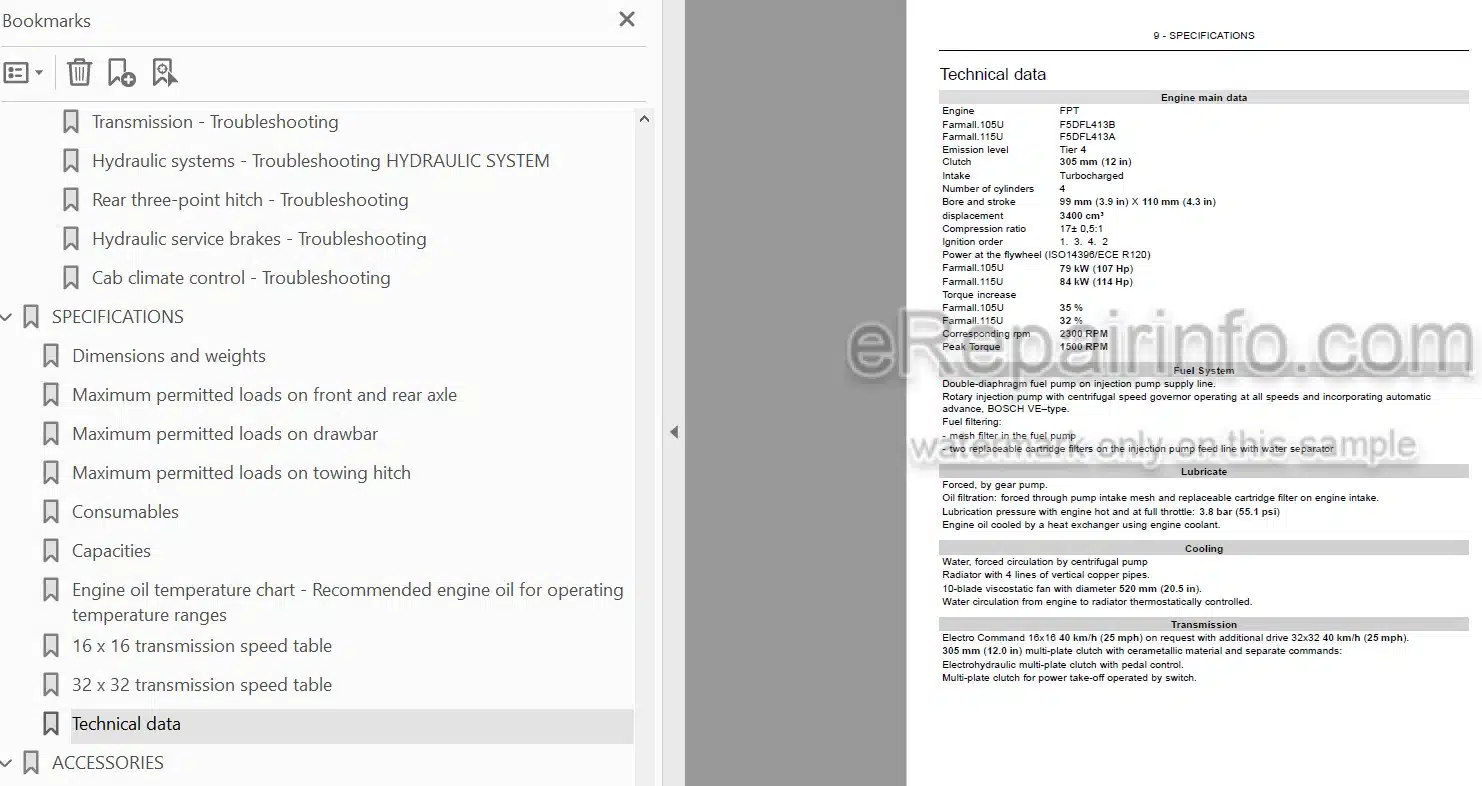

Technical Data
-ACCESSORIES
Front-End Loader Fixation Points
Radio

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
