Case IH Farmall 45C 55C Tier 4B Final Operators Manual Tractor 48115974 manuals in PDF

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 296
Number: 48115974 (july 2018)
Bookmarks: Yes
Searchable: Yes

Model

Case IH Tractor
Farmall 45C
Cab: PIN LSMF45CCxx0010001 and above
ROPS: PIN LSMF45CRxx0010001 and above

Farmall 55C
Cab: PIN LSMF55CCxx0010001 and above
ROPS: PIN LSMF55CRxx0010001 and above

Tier 4B Final

Contents

-GENERAL INFORMATION
Note To The Owner
Tractor Intended Use
Emissions Overview
Electro-Magnetic Compatibility (EMC)
Manual Scope
Product Identification Number (Pin)
Operator’s Manual Storage On The Machine – Roll Over Protective Structure (ROPS)
Operator’s Manual Storage On The Machine – Cab
Machine Orientation – Roll Over Protective Structure (ROPS)
Machine Orientation – Cab
-SAFETY INFORMATION
Safety Rules And Signal Word Definitions
Safety Rules
Do Not Operate Tag
Folding Roll Over Protective Structure (ROPS)
Starting Up The Machine Safely
Stopping The Machine Safely
Ecology And Environment
Safety Signs – Cab
Safety Signs – Roll Over Protective Structure (ROPS)
Instructional Signs – Cab
Instructional Signs – Roll Over Protective Structure (ROPS)
-CONTROLS AND INSTRUMENTS
Access To Operator’s Platform
Operator’s Seat

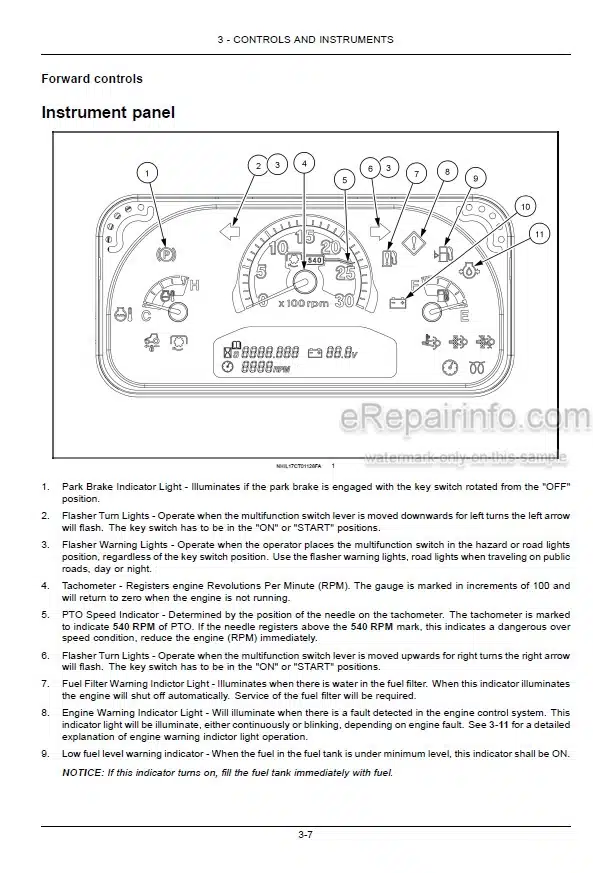

Forward Controls
Left-Hand Side Controls
Right-Hand Side Controls
Overhead Controls
Exterior Controls
-OPERATING INSTRUCTIONS
Commissioning The Unit
Starting The Unit
Stopping The Unit
Moving The Unit
Parking The Unit
-TRANSPORT OPERATIONS
Road Transport
Shipping Transport
Recovery Transport
-WORKING OPERATIONS
general Information
-MAINTENANCE
General Information
Maintenance Planning
Every 10 Hours Or Daily
After First 50 Hours
Every 50 Hours
Every 100 Hours
Every 300 Hours
Every 500 Hours
Every 600 Hours
Every 1000 Hours
Every 1500 Hours
General Maintenance

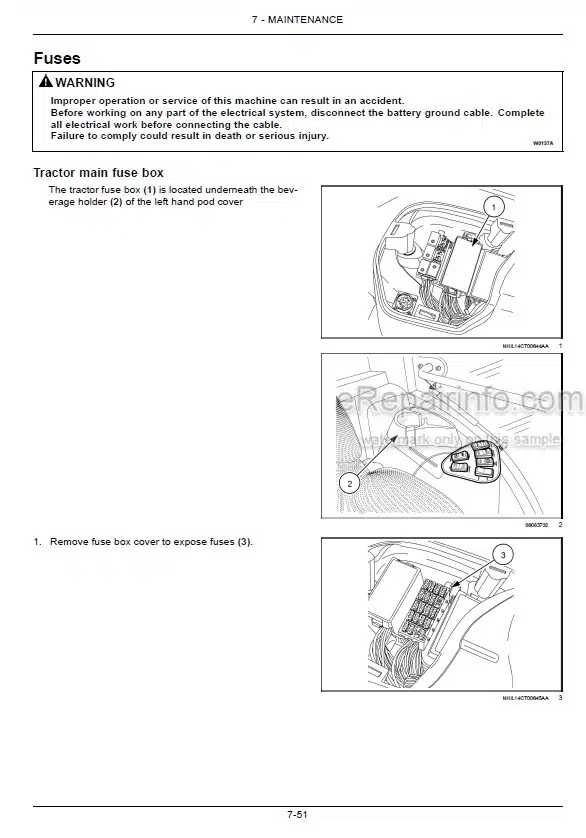

Fuse And Relay Locations
Storage
-TROUBLESHOOTING
Symptoms
-SPECIFICATIONS
Wheel Tread Settings
Tire Inflation Pressures
Liquid Ballast

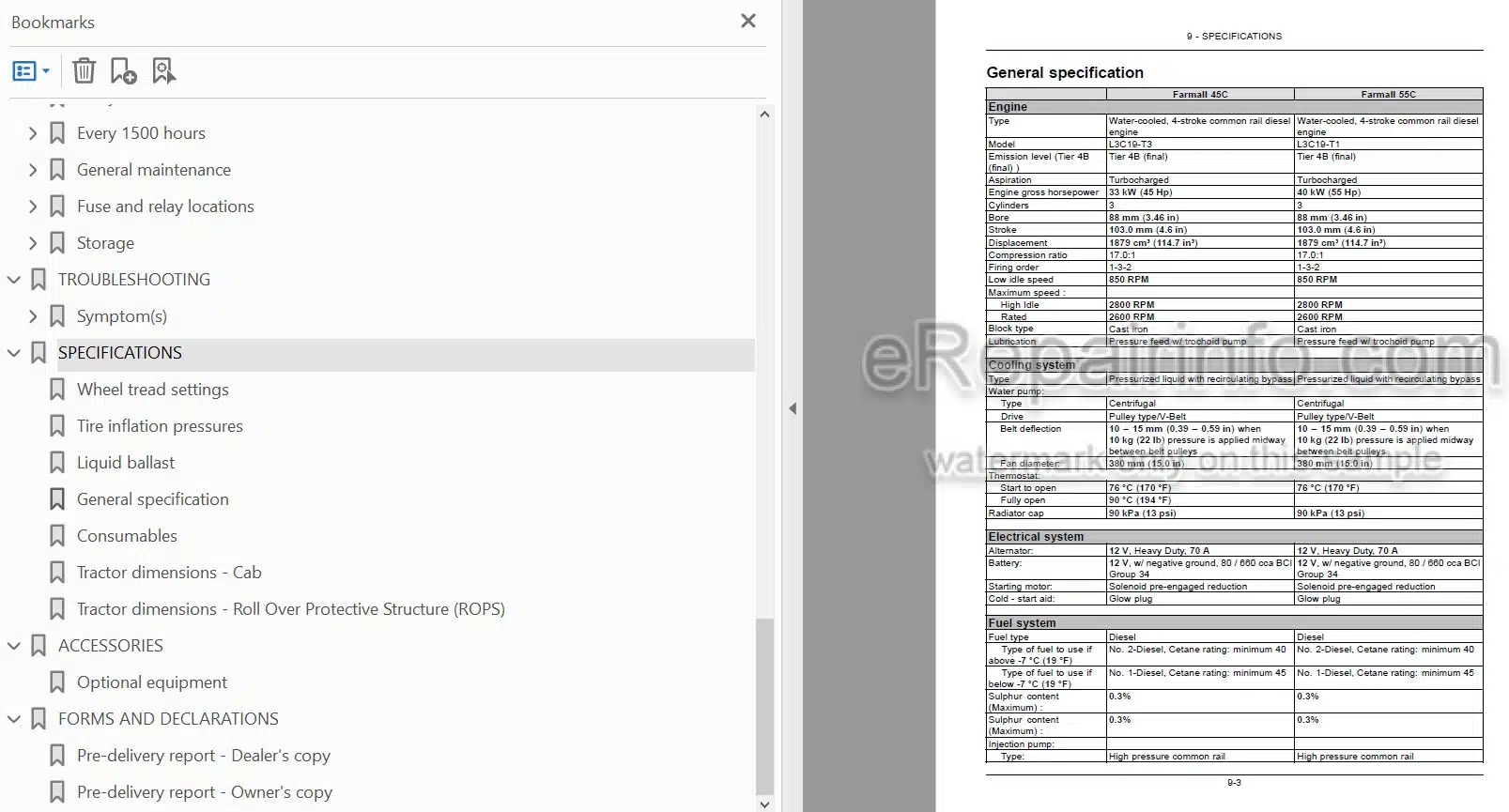

General Specification
Consumables
Tractor Dimensions – Cab
Tractor Dimensions – Roll Over Protective Structure (ROPS)
-ACCESSORIES
Optional Equipment
-FORMS AND DECLARATIONS
Pre-Delivery Report – Dealer’s Copy
Pre-Delivery Report – Owner’s Copy

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
