Case IH JX1060C JX1070C JX1075C Operators Manual Tractor manuals in PDF

$14.95

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Photo 8 - Case IH JX1060C JX1070C JX1075C Operators Manual Tractor
Case IH JX1060C JX1070C JX1075C Operators Manual Tractor $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 298; 226
Issued: july 2006; august 2006
Bookmarks: Yes
Searchable: Yes

Model

Case IH Tractor
JX1060C
JX1070C
JX1075C

Contents

-INTRODUCTION AND SAFETY MEASURES
General Information And Safety Measures

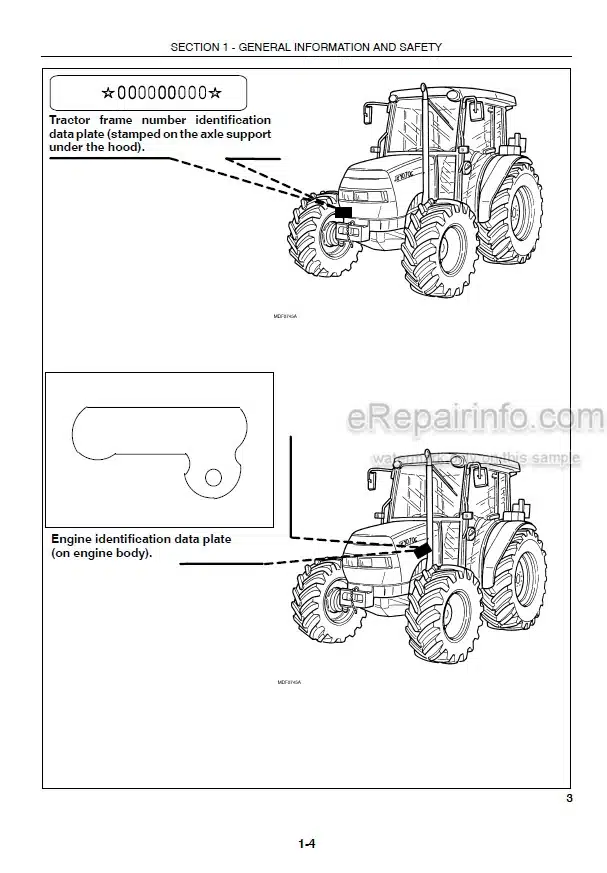

Tractor Identification Plates
Important Ecological Considerations
Always Work Safely
Working Safely
Safety Decals
Standard Symbols
Tractor Noise Level Information Sheet
-GENERAL INFORMATION, CONTROLS AND INSTRUMENTS
Controls, Instruments And Operation
Before Using The Tractor
Analog Control Panel
Control Panel With Digital Instrument
Analog Instrument Indicator Lights
Digital Instrument Indicator Lights
Electronic Module
Light Control Lever
Operation Controls
Seat
Steering Wheel Adjustment
Cab With Heating And Ventilation
Transmission With Range Gear And Mechanical Shuttle 1864/2485 mph (30/40 km/h) (8F+8R)
Transmission With Range Gear And Mechanical Shuttle 1864/2485 mph (30/40 km/h) (16F+16R)
Transmission With Creeper And Mechanical Shuttle 1864/2485 mph (30/40 km/h) (28F+16R)
Transmission With Range Gear, Mechanical Shuttle And Splitter 1864/2485 mph (30/40 km/h) (32F+16R)
Transmission With Creeper, Mechanical Shuttle And Splitter 1864/2485 mph (30/40 km/h) (44F+16R)
Transmission With Electrohydraulic Power Shuttle 1864/2485 mph (30/40 km/h) (32F+16R)
Transmission With Electrohydraulic Power Shuttle 1864/2485 mph (30/40 km/h) (44F+16R)
Transmissions 2485 mph (40 km/h)
-FIELD OPERATION
Starting And Stopping
Brakes
Transmission Clutch Pedal
Mechanically Engaged 4WD
Hydraulically Engaged 4WD
Differential Lock
Electrohydraulically Controlled Differential Lock
Independent Power Take-Off
Synchronized Power Take-Off
Mechanically Controlled Hydraulic Lit!
Electronically Controlled Rear Hydraulic Lift
Rear Remote Control Valves
Wheel Track Adjustment
Steering Angle Adjustment
Tyres
Tyre Pressures And Combinations
Ballast
Maximum Permitted Weights
-LUBRICATION AND MAINTENANCE
Tractor Refuelling
Access For Inspection And Maintenance
Lubrication And Maintenance Table
Flexible Maintenance
Instrument Panel Warning Lights
Every 10 Hours Of Work
Every 50 Hours Of Work
Every 300 Hours Of Work
Every 900 Hours Of Work
Every 1200 Hours Of Work Or Every Year
Every 1200 Hours Of Work Or Every 2 Years
General Maintenance
Electrical System
Calibrations
Recommendations For Bodywork Maintenance
Refuelling
TROUBLESHOOTING
-VEHICLE STORAGE
Prolonged Tractor Inactivity
-ACCESSORIES
Front PTO
Mechanically Controlled Front Hydraulic Lift
Electronically Controlled Front Hydraulic Lift
Front Three-Point Linkage
Quick Fit Implement Linkage
Towing Equipment
Joystick
Control Valve For Trailer Hydraulic Brakes (Not Available On All Markets)

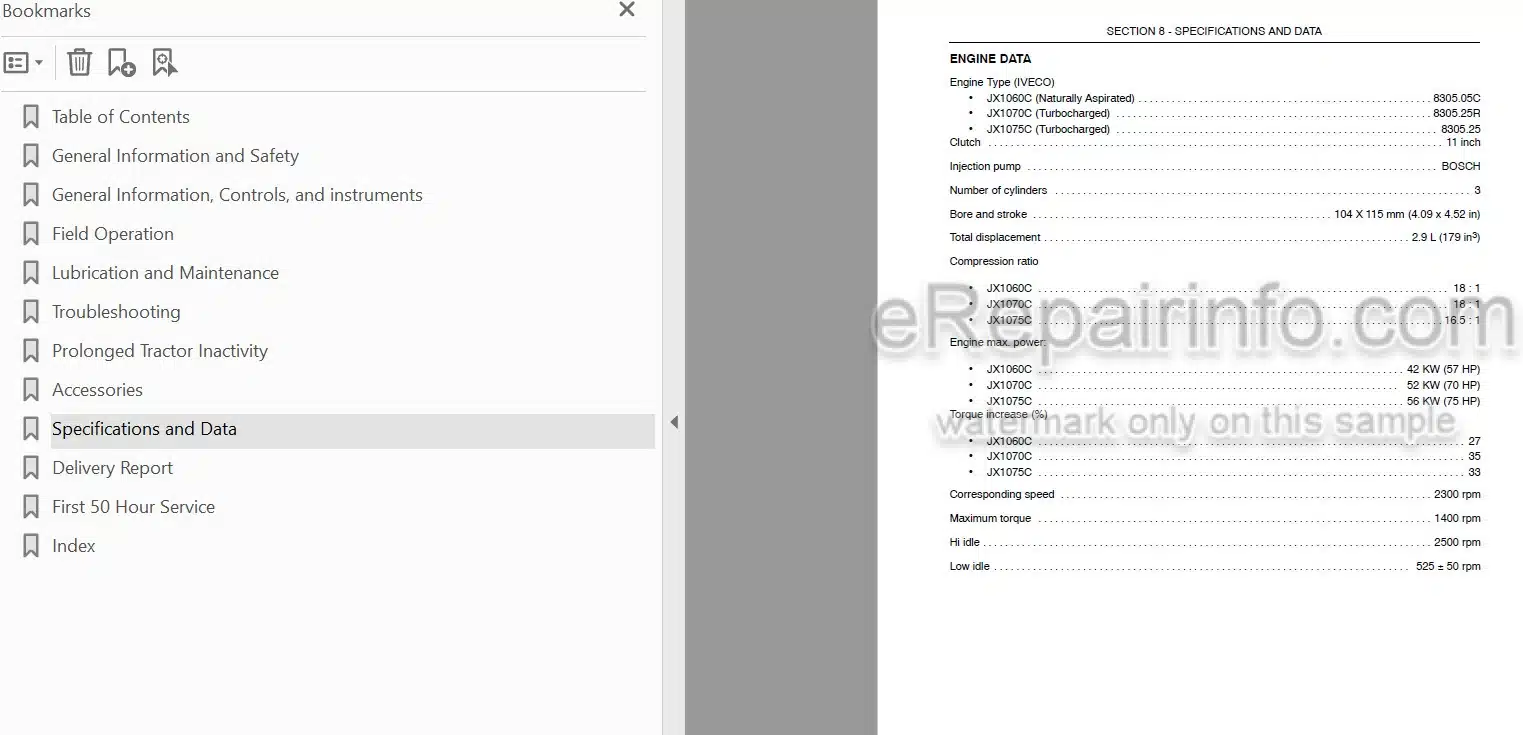

SPECIFICATIONS AND DATA
RUNNING-IN PERIOD
ALPHABETICAL INDEX

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
