Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 264
Issue: november 2006
Searchable: Yes
Model
Case IH Tractor
JX1060V
JX1070V
JX1075V
JX1095V
JX1070N
JX1075N
JX1095N
Contents
-INTRODUCTION AND SAFETY MEASURES
General Information And Safety Measures
Tractor Identification Plates
Important Ecological Considerations
Always Work Safely
Working Safely

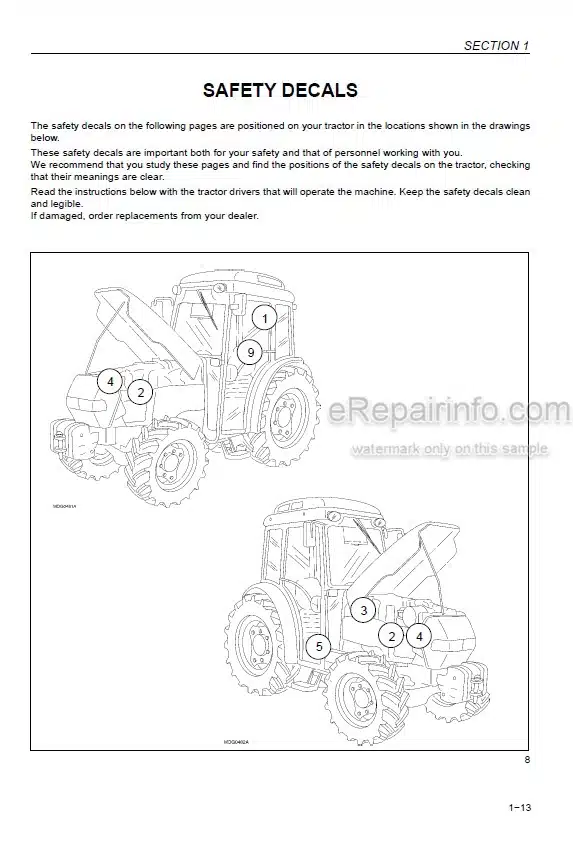

Safety Decals
Standardized Symbols
Tractor Noise Level Information Sheet
-GENERAL INFORMATION, CONTROLS AND INSTRUMENTS
Controls And Instruments
Controls
Cab
Air Conditioning System
Cab Air Conditioning Controls
Air Conditioning System Instructions For Use
Seat
Brakes
Instrument Panel
Digital Control Instrument Panel
Transmission With Range Gear And Mechanical Shuttle 30/40 km/h (18.64/24.85 mph) – 16F+16R
Transmission With Creeper Unit And Mechanical Shuttle 30/40 km/h (18.64/24.85 mph) – 28F+16R
Transmission With Range Gear, Mechanical Shuttle And Splitter 30/40 km/h (18.64/24.85 mph) – 32F+16R
Transmission With Creeper Unit, Mechanical Shuttle And Splitter 30/40 km/h (18.64/24.85 mph) – 44F+16R
Transmission With Electro-Hydraulic Hi-Lo / Power-Shuttle 30/40 km/h (18.64/24.85 mph) – 32F + 16R Or 44F+16R
Fast Mechanical Transmissions 40 km/h (2485 mph) (Four-Wheel Drive Models)
Electronically Controlled Hydraulic Four-Wheel Drive
Differential Lock
Power Take-Off
Mechanically Controlled Hydraulic Lift
Electronically Controlled Hydraulic Lift
-FIELD OPERATION
Power Take-Off
Mechanically Controlled Hydraulic Lift
Electronically Controlled Hydraulic Lift

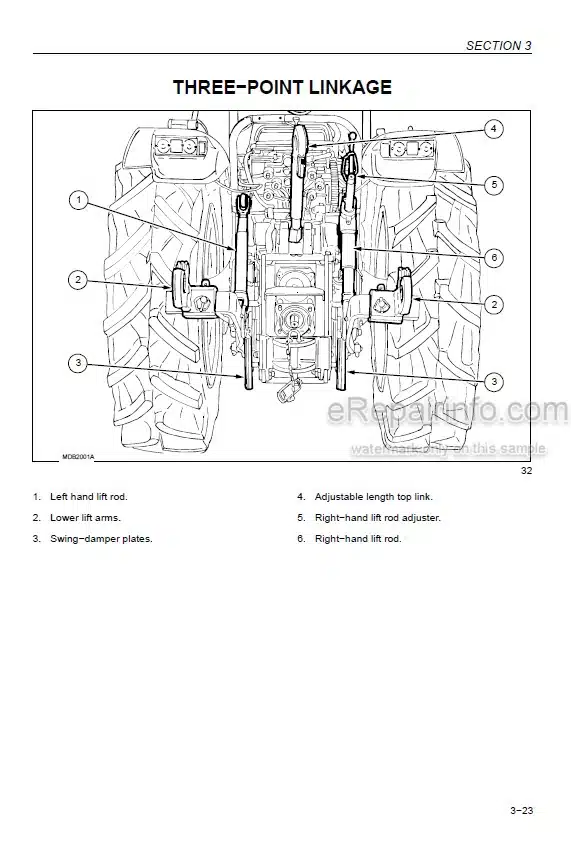

Three-Point Linkage
Three-Point Linkage
Rear Remote Control Valves
Tyres
Ballasting
Maximum Permitted Weights
-LUBRICATION AND MAINTENANCE
Lubrication And Maintenance
Running-In Period
Tractor Refuelling
Access For Inspection And Maintenance
Lubrication And Maintenance Table
Flexible Maintenance
When The Indicator Light Illuminates On The Dashboard
Every 10 Hours Of Work
Every 50 Hours Of Work
Every 300 Hours Of Work
Every 900 Hours Of Work
Every 1200 Hours Of Work Or Every Year
Every 1200 Hours Or Every 2 Years
General Maintenance
Electrical System
Calibration
Fuel And Lubrication Specifications
TROUBLESHOOTING
VEHICLE STORAGE
ACCESSORIES

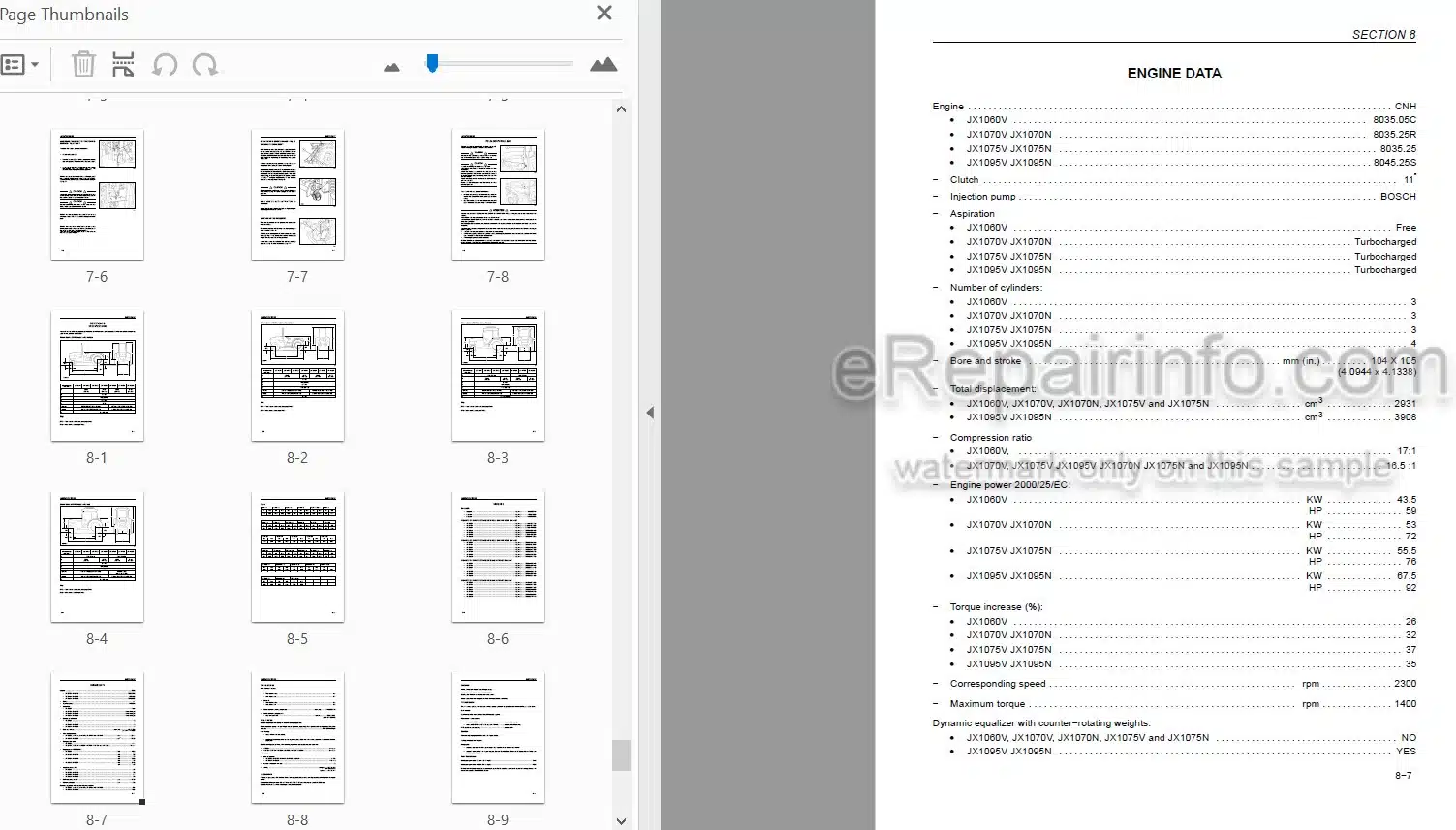

SPECIFICATIONS AND DATA
RUNNING-IN PERIOD
ALPHABETICAL INDEX
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
