Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 516
Issue: august 2008
Bookmarks: Yes
Searchable: Yes
Model
Case IH Tractor
Magnum 255 Series
After P.I.N. Number Z8RZ06001
Contents
-GENERAL INFORMATION
Personal Safety

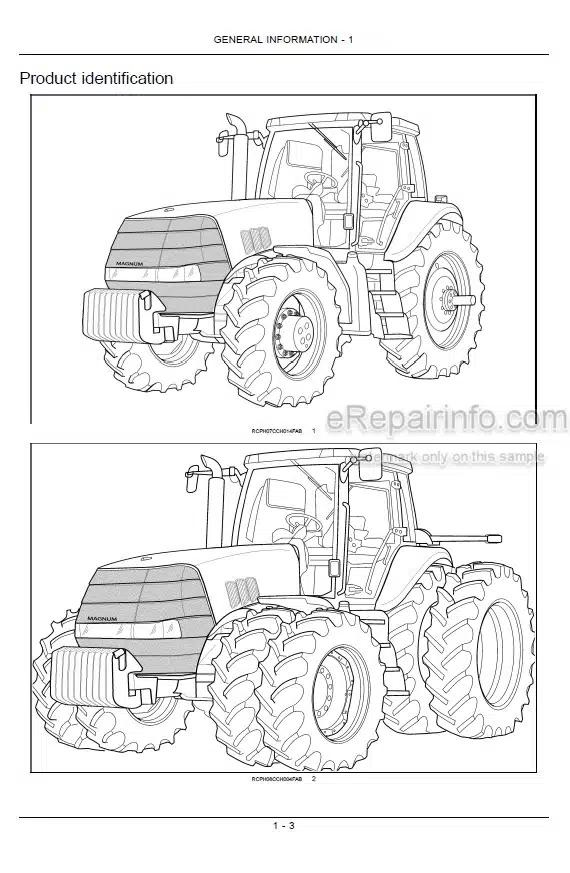

Product Identification
Note To The Owner
Tractor Intended Use
Manual Storage
Product Identification
Component Location
-SAFETY INFORMATION
Safety Rules
ROPS And CSF
Safety Decals
-CONTROLS/INSTRUMENTS
Access To Operator’S Platform
Operator’S Seat
Instructor’S Seat
Forward Controls
RH Side Controls
Rearward Controls
Overhead Controls
Exterior Controls
Instrument Cluster
-OPERATING INSTRUCTIONS
Commissioning The Unit
Starting The Unit
Stopping The Unit
Moving The Unit
-TRANSPORT OPERATIONS
Road Transport
Shipping Transport
Recovery Transport
-WORKING OPERATIONS
General Information
Rear PTO

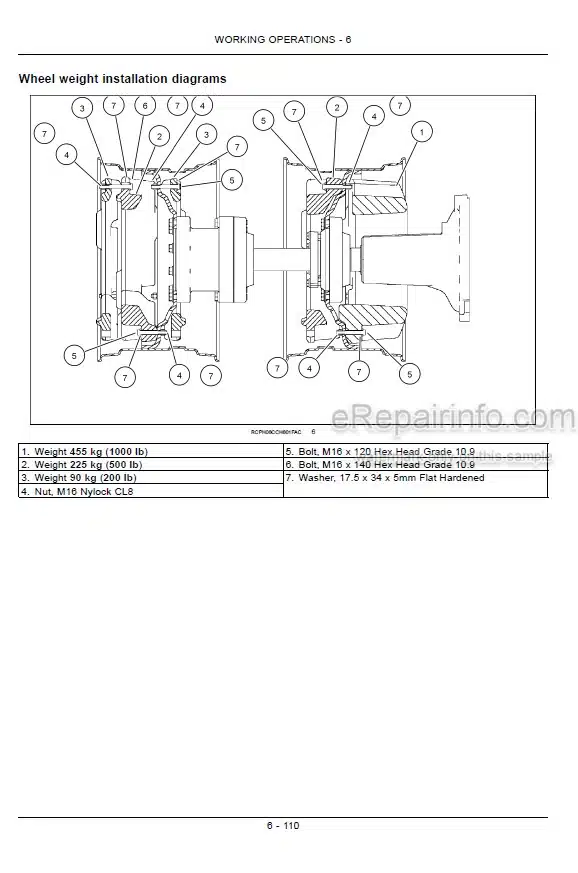

Three Point Hitch
Drawbars And Towing Attachments
Auxiliary Power Connections
Hydraulic Remote Control Valves
Ballasting The Tractor
Mechanical Front Drive (MFD) Axles
Rear Axle
-MAINTENANCE
General Information
Maintenance Chart
At Warning Message Display
First 10 To 50 Hours
Every 10 Hours Or Daily
Every 50 Hours
Every 300 Hours
Every 600 Hours
Every 1200 Hours Or Annually
Every 1500 Hours
Every 2100 Hours
Every 3000 Hours
As Required
Storage
Electrical System
-TROUBLESHOOTING
Alarm(S)
-SPECIFICATIONS

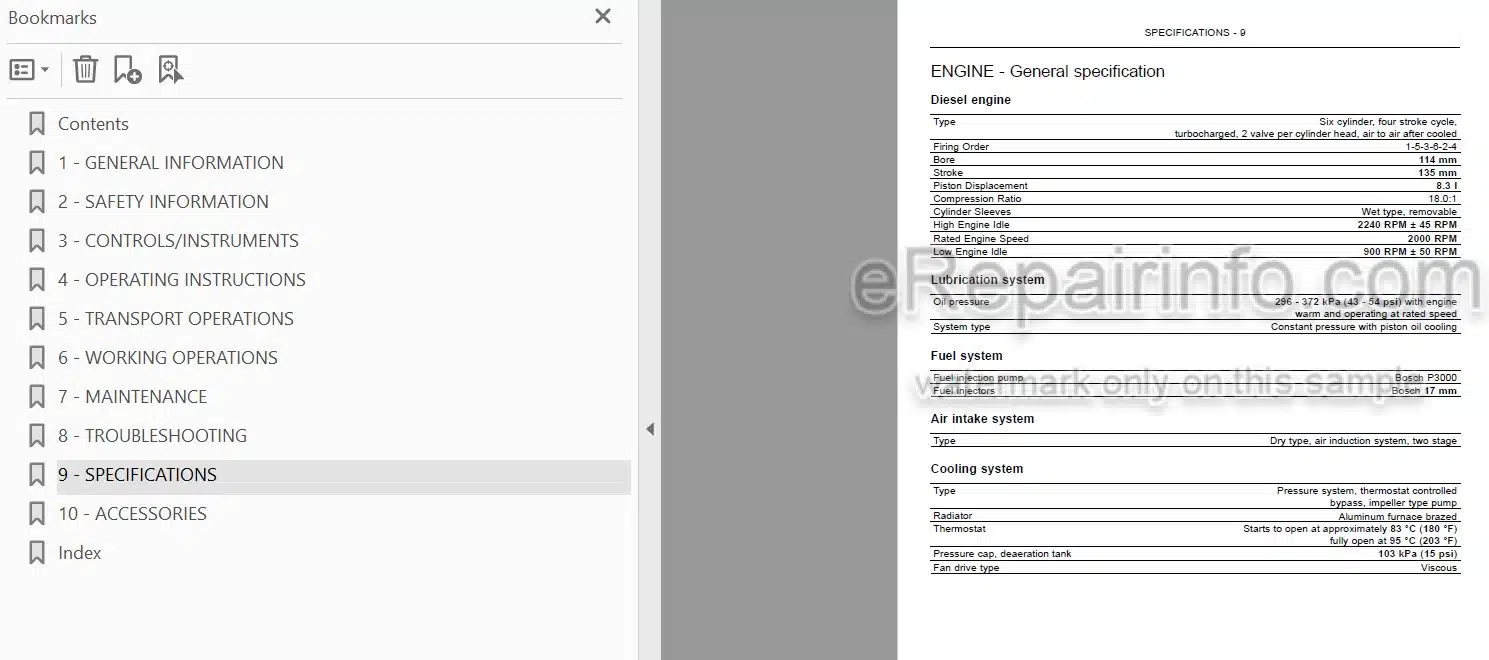

Engine – General Specification
Power Train – General Specification
Traveling – Speeds
Vehicle Dimensions And Shipping Weight
Maximum Operating Weight
-ACCESSORIES
Front Wheel Fenders
Farming System Displays
Chemical Tank Mounting
Loader Connection And Operation
Trailer Brake Connections
General Accessories
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
