Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 379
Issue: march 1995
Bookmarks: Yes
Model
Case IH Tractor
MX100
MX110
MX120
MX135
P.I.N. JJA0108301 and After
P.I.N. JJE0966253 and After
Contents
TO THE OWNER
-IDENTIFICATION NUMBERS/ MACHINE COMPONENTS
Machine Components
-SAFETY/DECALS
Safety
Hazardous Chemicals
Roll Over Protective Structure (ROPS)
-INSTRUMENTS/CONTROLS
Instruments And Controls

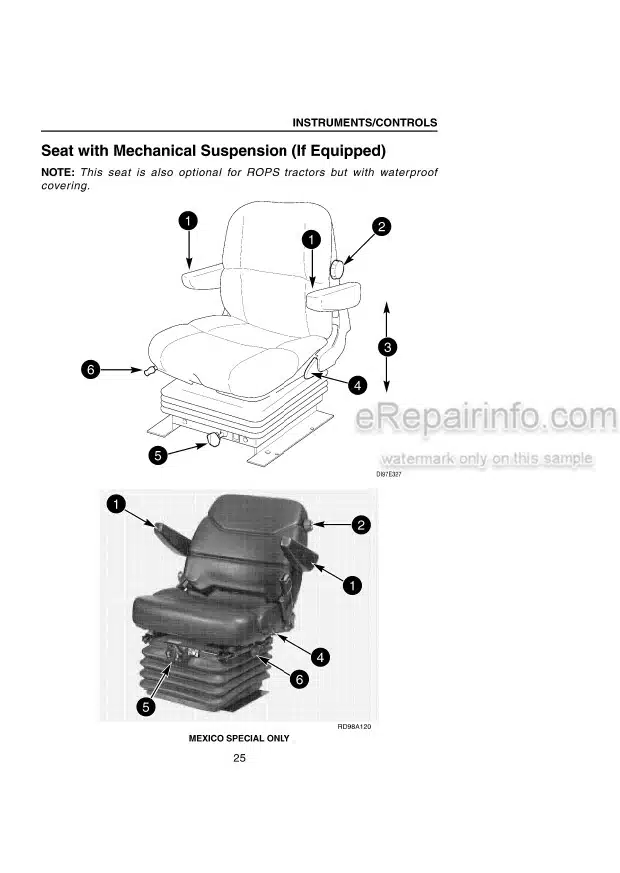

Operators Seat
Standard (Analog) Instrument Cluster
Deluxe (Digital) Instrument Cluster
Operating Controls
-OPERATING INSTRUCTIONS
Operating Instructions
Normal Starting Procedure
Parking The Tractor And Stopping The Engine
Operating The Transmission
Drawbar
Height Adjustable Trailer Hitch
Trailer Brake Couplings
Towing The Tractor
How To Transport The Tractor
-FIELD OPERATION
Field Operation
Wheel Slip Indicator
Programming The Instrument Cluster
Distance Function Operation
Area Function Operation
Rear Power Takeoff
Rear Three Point Hitch Preparation
Rear Three Point Hitch Operation
Rear Three Point Hitch Diagnostic Display
Differential Lock Control
Mechanical Front Drive (MFD) Operation
Front Hitch Preparation (If Equipped)
Front Hitch Operation
Remote Hydraulic Valves
Remote Hydraulics Operation
Implement Cable Access
Foldable ROPS Frame (If Equipped)
Loader Operation
-TIRES/WHEELS/SPACING/BALLAST
Tires, Wheels, Spacing And Ballast
Tire And Wheel Service
Instrument Cluster Programming For Tire Sizes
Front Axle And Front Tread Adjustments
Mechanical Front Drive (MFD) Tractors
Front To Rear Tire Size Combinations
MFD Front Wheel Fenders (If Equipped)
Rear Wheel Tread Adjustment

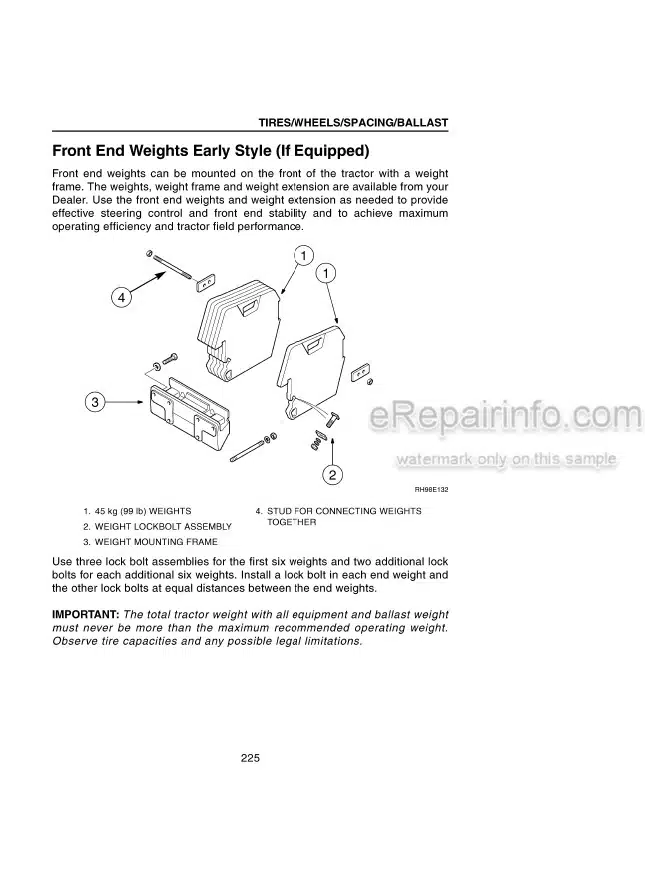

Tractor Ballast
-LUBRICATION AND MAINTENANCE
Lubrication And Maintenance
Hourmeter
Hood And Side Panels
Lubricants And Capacities
Lubrication And Maintenance Chart
-ELECTRICAL SYSTEM
Electrical System
Bulb And Lamp Replacement
Fuses
-MACHINE STORAGE
Putting The Tractor Into Storage
-TRAVEL SPEEDS
Travel Speeds – Prior To PIN
Travel Speeds – PIN And After

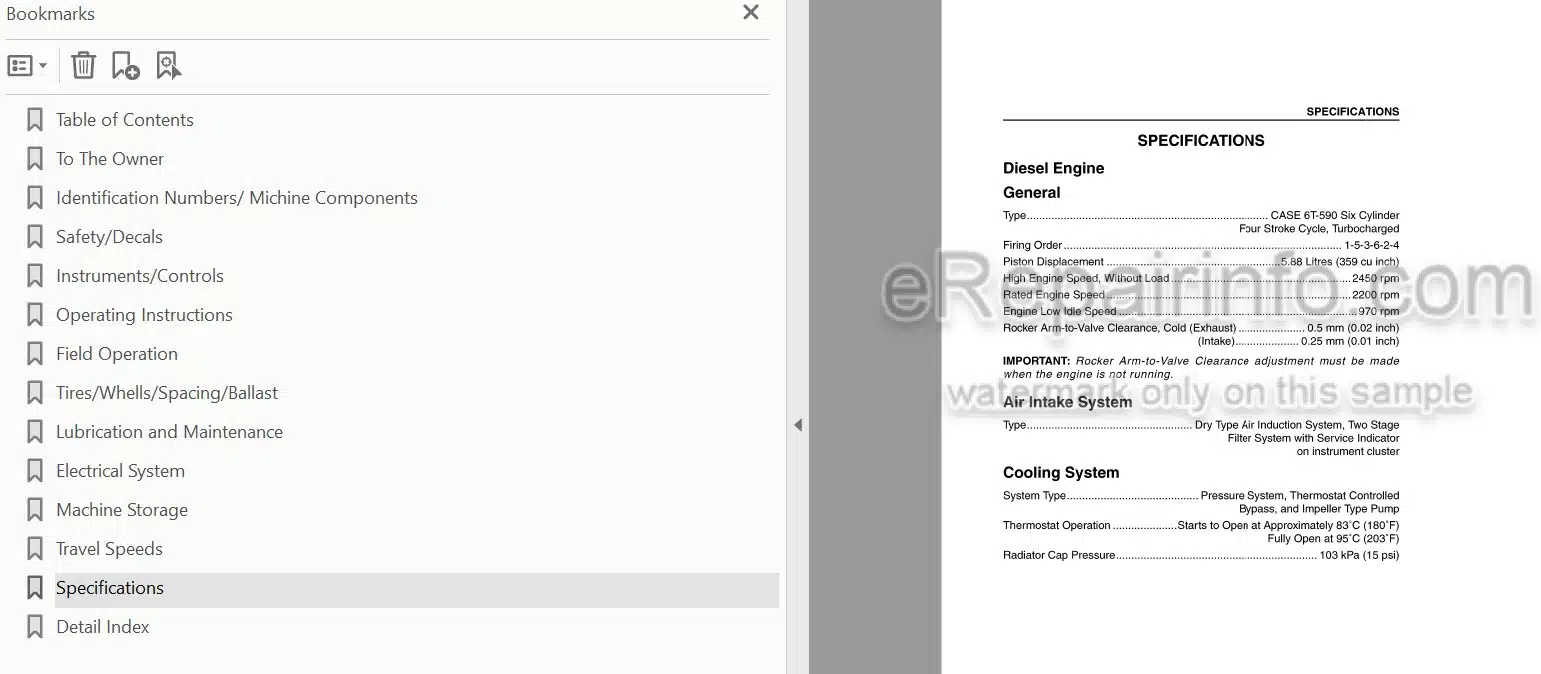

-SPECIFICATIONS
Specifications
General Machine
Approximate Tractor Dimensions
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
