Case IH MXU115 MXU130 Operators Manual Tractor manuals in PDF

$14.95

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Photo 8 - Case IH MXU115 MXU130 Operators Manual Tractor
Case IH MXU115 MXU130 Operators Manual Tractor $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.

Format: PDF
Language: English
Pages: 276
Issue: june 2006
Bookmarks: Yes
Searchable: Yes

Model

Case IH Tractor
MXU115
MXU130

Contents

-GENERAL INFORMATION AND SAFETY
Ecology and the Environment
Precautionary Statements
Personal Safety
Machine Safety
Information
Safety Precautions

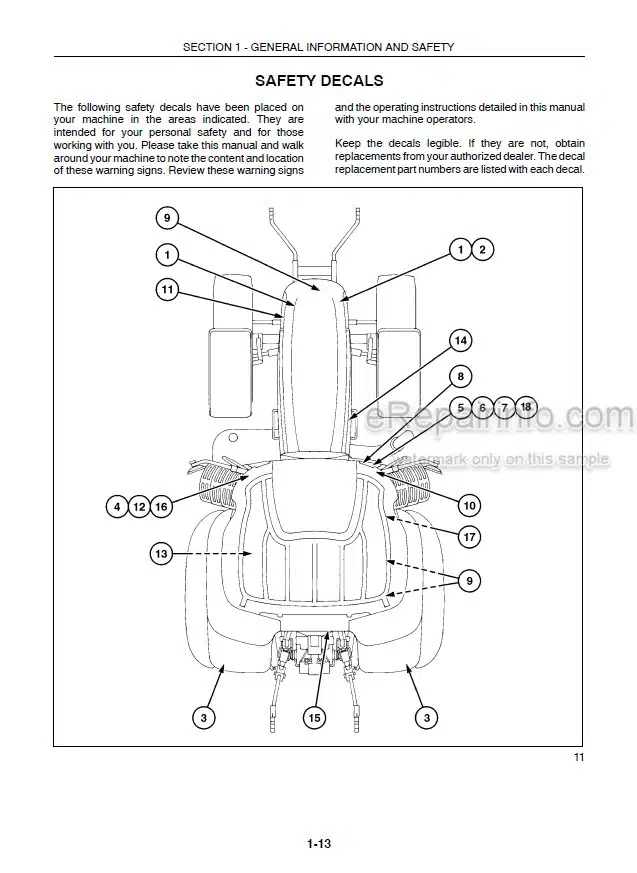

Safety Decals
Airborne Noise Emission
International Symbols
-CONTROLS, INSTRUMENTS AND OPERATION
Cab and Platform Controls
Platform Controls
Seats
Hand Brake, Throttle and Foot Pedals

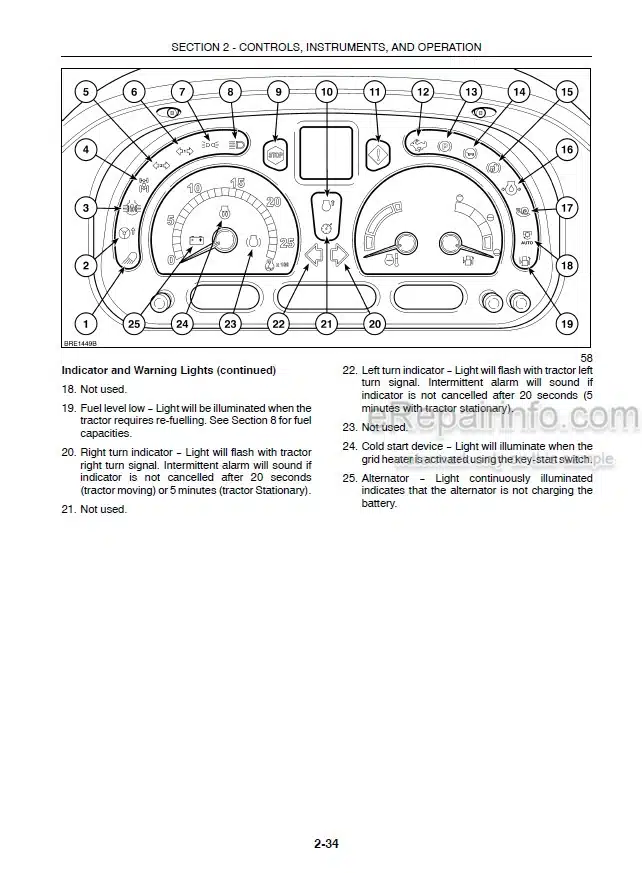

Instrument Console
Analog/Digital Instrumentation
Transmission Operation
Differential Lock
Four Wheel Drive (where fitted)
-FIELD OPERATION
Important Information
Starting the Engine
Rear Power Take-off
Mechanical Lower Link Sensing Hydraulics
Hydraulic Remote Control Valves
Additional Oil Supply For Remote Hydraulic Sen/ices (Power Beyond Port)
Three-point Linkage
Drawbars and Towing Attachments
Equipment Mounting Points
Front Wheel Track Adjustment
Rear Wheel Track Adjustment
Ballasting and Tires
-LUBRICATION AND MAINTENANCE
General Lubrication and Maintenance Information
Guards
Lubrication and Maintenance Chart
Lubricants and Coolants
When the Warning Lamp Lights
Every 10 Hours or Daily Maintenance (Whichever Comes First)
Every 50 Hours Maintenance
Every 100 Hours Maintenance
Every 300 Hours Maintenance
Every 600 Hours Maintenance
Every 1200 Hours or 12 Months Maintenance
Every 1200 Hours or 2 Years Maintenance
Every 1800 Hours Maintenance
Every 3 Years Maintenance
General Maintenance (To Be Performed When Required)
Fuse and Relay Locations
Protecting the Electronic and Electrical Systems During Battery Charging or Welding
-TROUBLESHOOTING
Error Codes
System Troubleshooting
VEHICLE STORAGE
ACCESSORIES
-TRACTOR SPECIFICATION
Tractor Specification
General Dimensions – MXU115 Aand MXU130A
Weight Specifications
Fluid Capacities Specifications

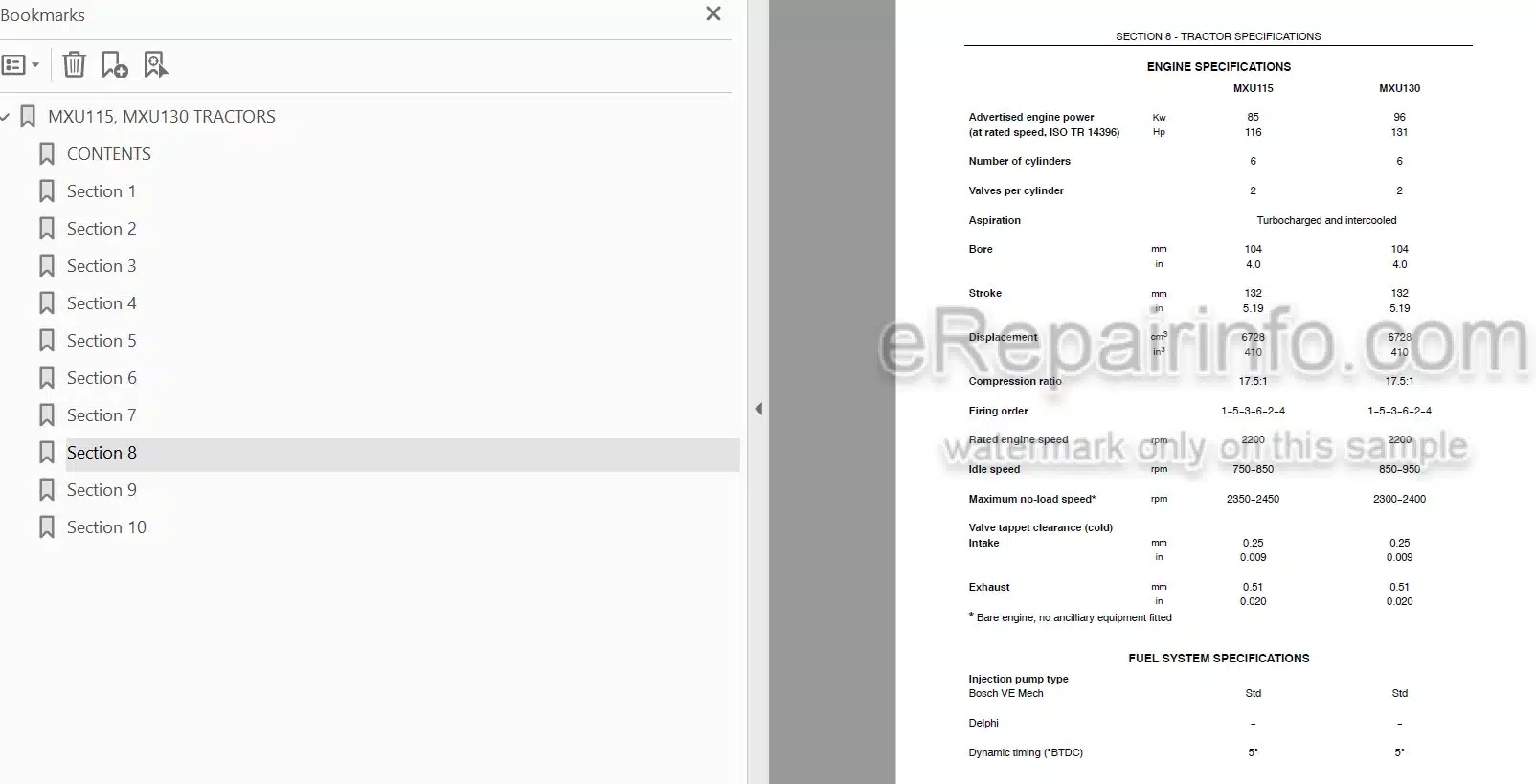

Engine Specifications
Fuel System Specifications
Cooling System Specifications
Transmission Specifications
Brakes Specifications
Rear Power Take Off Specifications
Maximum Operating Angle Specifications
Hydraulic System Specifications
Three Point Linkage Specifications
Remote Control Valves Specifications
Steering Specifications
Electrical Equipment Specifications
DELIVERY REPORT

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
