Factory Operators Manual For Case IH Tractor. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 448
Issue: july 2014
Bookmarks: Yes
Searchable: Yes
Model
Case IH Tractor
Rowtrac 400, 450, 500
Steiger 400, 450, 500, 550, 600
Quadtrac 450, 500, 550, 600
Tier 2
PIN ZEF303001 and above
Contents
-GENERAL INFORMATION
Note To The Owner
Tractor Intended Use
Electro-Magnetic Compatibility (EMC)
CNH Industrial America LLC Technical Manuals
Your Tractor
Manual Storage
Product Identification
Machine Orientation

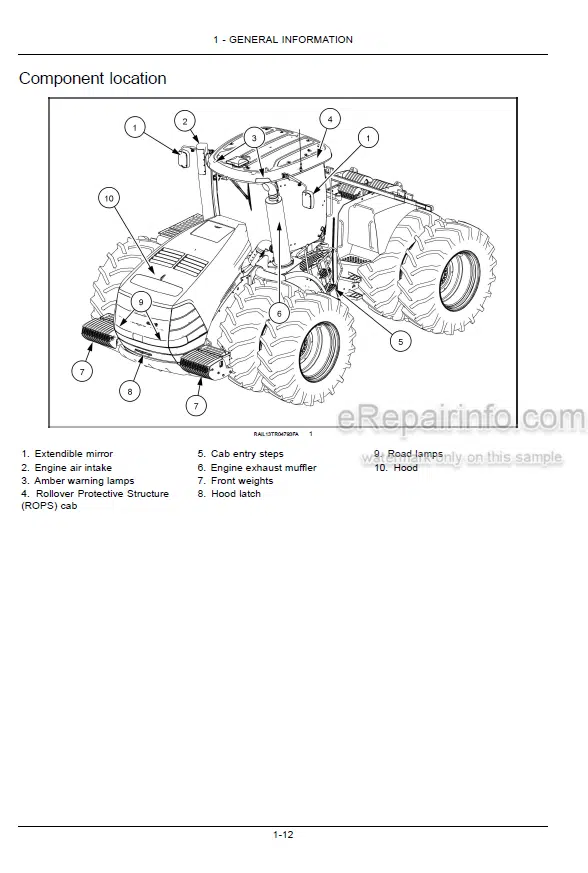

Component Location
-SAFETY INFORMATION
Safety Alert Symbol And Signal Word Definition
Safety Rules
Ecology And The Environment
Protective Structures
Emergency Exit
Safety Signs
Articulation Cylinder Locking Blocks
-CONTROLS AND INSTRUMENTS
Access To Operator’s Platform
Operator’s Seat
Instructor’s Seat
Forward Controls
Right-Hand Side Controls
Rearward Controls
Overhead Controls
Exterior Controls
Instrument Cluster
-OPERATING INSTRUCTIONS
Commissioning The Unit
Starting The Unit
Stopping The Unit
Moving The Unit
-TRANSPORT OPERATIONS
Road Transport
Shipping Transport
Recovery Transport
-WORKING OPERATIONS
General Information
Rear Power Take-Off (PTO)

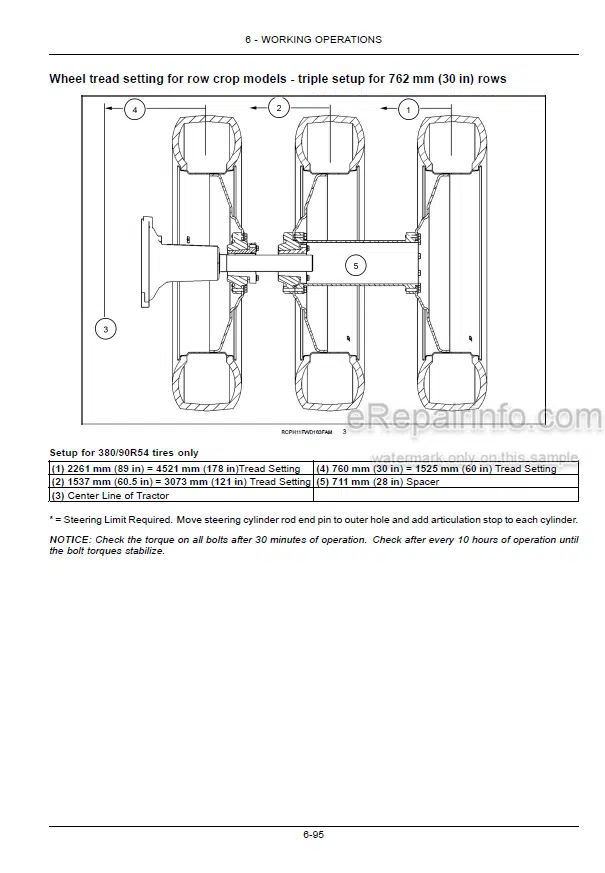

Three-Point Hitch
Drawbars And Towing Attachments
Trailer Brake Coupler
Auxiliary Power Connections
Hydraulic Remote Control Valves
Ballasting The Tractor
Front And Rear Axle
-MAINTENANCE
General Information
Maintenance Chart
At Warning Message Display
Every 10 Hours Or Daily
Every 50 Hours
First 100 Hours
Every 600 Hours
Every 1000 Hours Or Yearly
Every 1200 Hours
Every 1800 Hours
Every 2400 Hours
As Required
Storage
-TROUBLESHOOTING
Fault Code Resolution
Alarm(S)
-SPECIFICATIONS

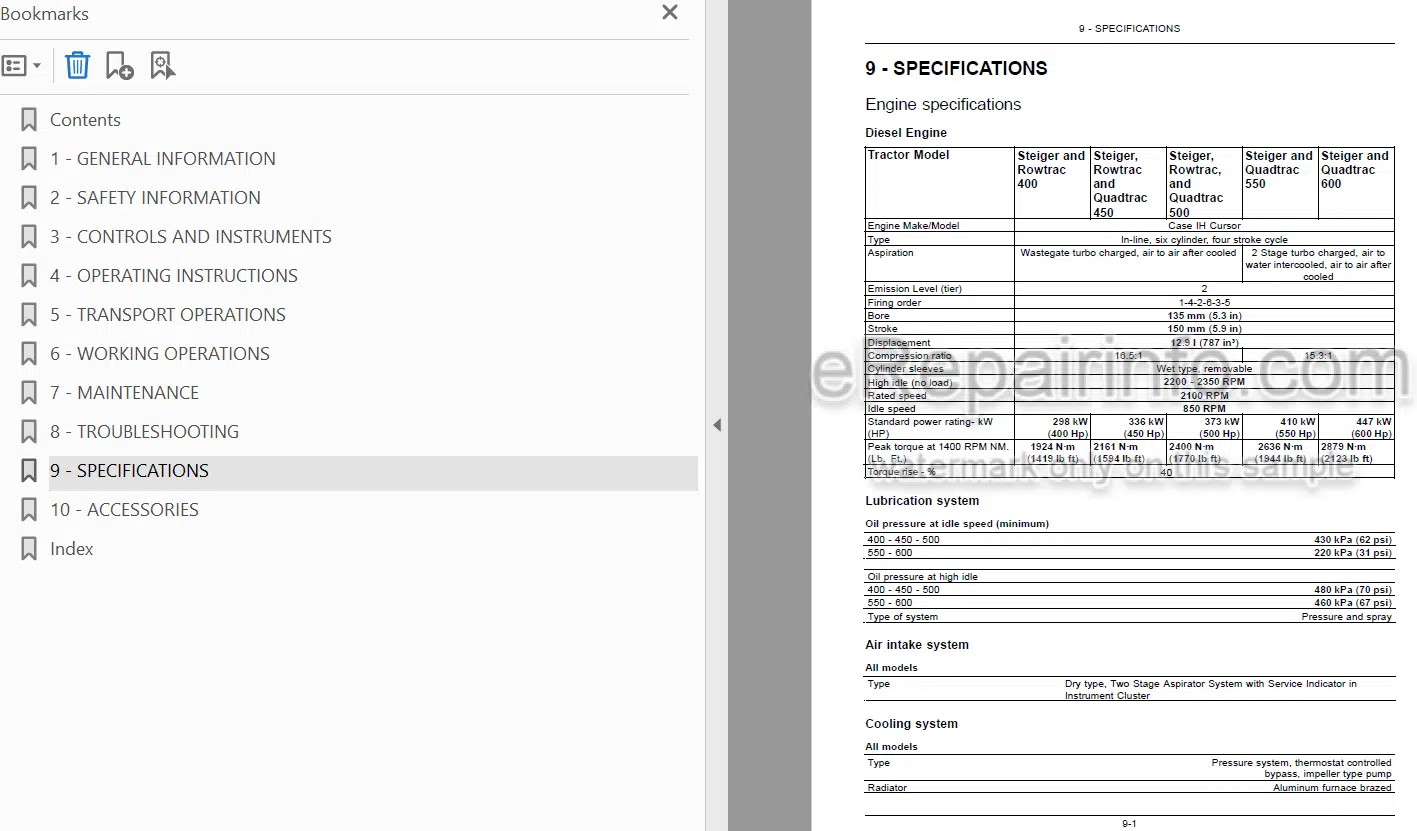

Engine Specifications
Power Train And Hydraulics
Lubricants And Capacities
Speed Charts
Vehicle Dimensions And Shipping Weight
Maximum Operating Weight
-ACCESSORIES
Farming System Displays
Chemical Tank Mounting
General Accessories
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
