Factory Shop Manual For Daewoo Solar 400LC-V Hydraulic Excavator. Illustrations, instructions, diagrams for step by step remove and install, assembly and disassembly, service, inspection, repair, troubleshooting, tune-ups.
Format: PDF
Language: English
Pages: 612
Number: 2023-7140AE
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Daewoo Hydraulic Excavator
Solar 400LC-V
Contents
-SAFETY
Track Excavator Safety
-SPECIFICATIONS
Specifications for Solar 400LC-VS
-GENERAL MAINTENANCE
General Maintenance Procedures
Standard Torques
-UPPER STRUCTURE
Cab
Counterweight
Fuel Tank
Fuel Transfer Pump

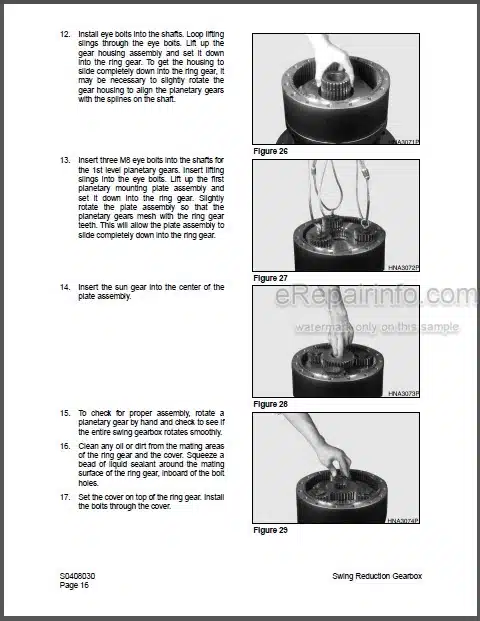

Swing Bearing
Swing Reduction Gearbox
-LOWER STRUCTURE AND CHASSIS
Track Assembly
-ENGINE AND DRIVE TRAIN
Air-Conditioner
Drive Coupling (Main Pump)
-HYDRAULICS
Hydraulic System Troubleshooting, Testing and Adjustment
Accumulator
Center Joint (Swivel)
Cylinders
Swing Motor
Travel Motor (With Gearbox)
Main Pump (With Regulator)
Main Control Valve (DX36-101)
Pilot Control Valve (Work Lever / Joystick)
Travel Control Valve
Travel Control Valve (Jeil Hydraulics)
Hydraulic Schematic (S400LC-V)
-ELECTRICAL SYSTEM
Electrical System
Electrical Schematic (S400LC-V)
-ATTACHMENTS
Boom and Arm
Bucket
