Factory Workshop Manual For Fiat Kobelco Skid Steer Loader. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 680
Number: 604.06.899.01 (july 2002)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Fiat Kobelco Skid Steer Loader
SL35B
SL40B
Contents
-GENERAL INFORMATION
Introduction
About Improvements
Company Policy
Parts and Accessories
Model Codes
Precautionary Statements
Safety Precaution Information
General Safety Information
Machine Model and Serial Number Location
Engine Model and Serial Number Location
Hardware Torque Specifications
Installation of Adjustable Fittings in Straight Thread O Ring Bosses
Standard Torque Data for Hydraulic Tubes and Fittings
Pipe Thread Fitting Torque
Lubricants and Coolants
Sealants
Properly Support a Raised Machine
Properly Support Boom on Boom Lock Pins
Raising Boom Without Hydraulic Oil Flow
Raising Boom Without Battery Voltage (12V)
Reattaching Cylinders After Repair with Boom Resting on Boom Lock Pins
Major Unit Overhaul
Cab and Boom Tilt Procedure
Craning the Skid Steer
Special Tools

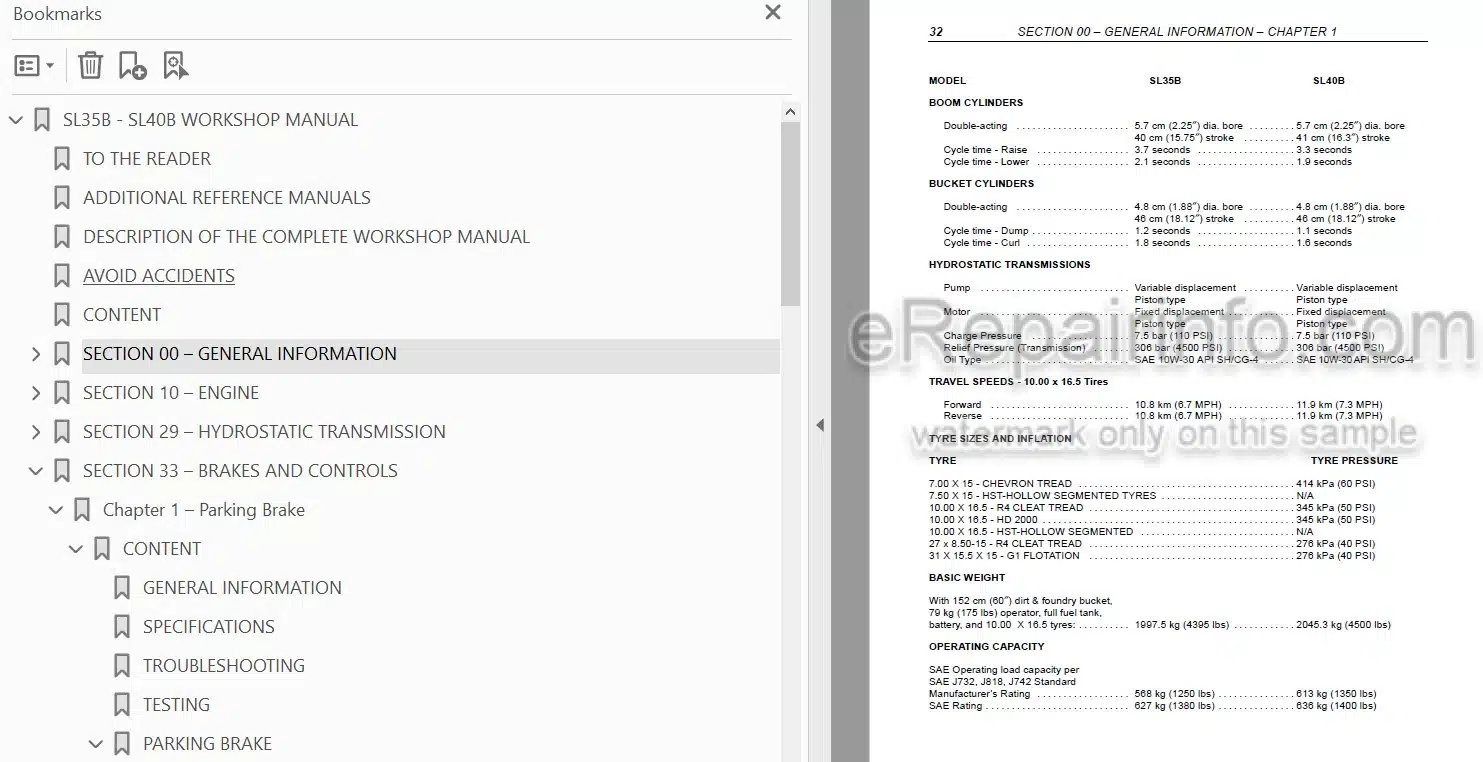

Specifications
Dimensions
-ENGINE-SL35B-N843, SL40B-N843H
General Engine Information
Engine Removal
Valve Seat
Cylinder Block
Piston and Piston Rings
Bearing Holder
Crankshaft
Flywheel and Ring Gear
Camshaft Assembly
Camshaft Gear and Bearing Assembly
Oil Pump
Oil Filter
Water Pump Assembly and Thermostat Housing
Thermostat
Governor
Engine Reassembly Sequence
Reinstallation of Engine into Skid Steer Frame
Fuel Injection Timing
-HYDROSTATIC TRANSMISSION
Neutralizer, Pumps, Motors
-BRAKES AND CONTROLS

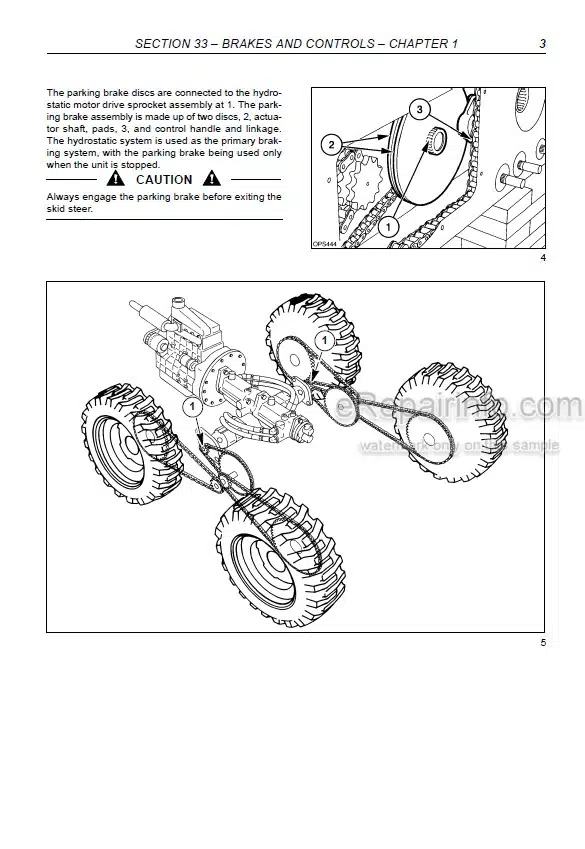

Parking Brake
-HYDRAULIC SYSTEM
Valves, Gear Pump, Cylinders, and Pedal Controls
-TOWING HOOKS AND BALLASTING
Rear Counterweights
-FRAMES
Lower Main, ROPS
-AXLES AND WHEELS
General Information
Axles
Axle Housing Assembly Removal
Axle Disassembly
Final Drive Removal
Tyres/Wheels
-CAB CLIMATE CONTROL
Heater/Defroster
-ELECTRICAL SYSTEM
Advanced Warning System

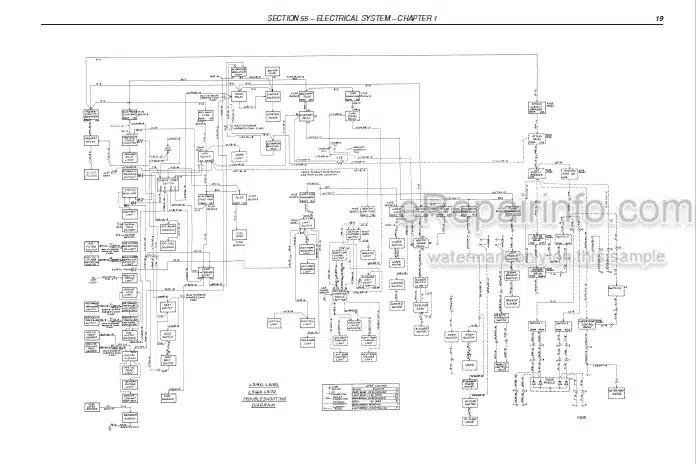

Circuits
Alternator
Starter
-FRONT LOADER (BOOM AND MOUNTING PLATE)
Buckets
-ACCESSORIES
General Information
Arm Pads For Cab Side Panels
Armrests for Deluxe Seat
Forearm Rests
Back-up Alarm
Block Heater (Engine)
Electric Power Supply (12 Volt, 15 Amp)
Exhaust (Engine)
Aspirator Precleaner Muffler
Hom
Shoulder Belt (Seat)
Slow-moving Vehicle (SMV) Sign Kit
Warning Light (Rotary Beacon)
Warning Lights (Four-way Flashers/Tum Signal/Horn)
-PLATFORMS, CAB, BODYWORK, AND DECALS
Cab and Seat
