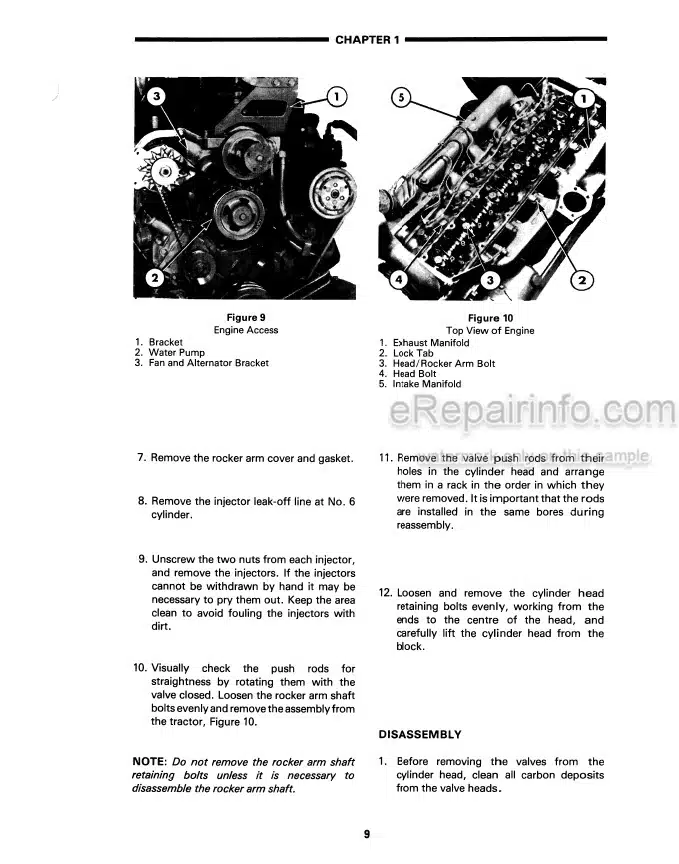

Factory Workshop Manual For Ford TW5, TW15, TW25, TW35, 8530, 8630, 8730, 8830 Tractor. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 1466
Number: 40000580
Bookmarks: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
Ford Tractor
TW5
TW15
TW25
TW35
8530
8630
8730
8830
Contents
-ENGINE SYSTEMS
Engine And Lubrication System
Turbocharger
Intercooler
Cooling System
Fan And Drive Assembly
Trouble Shooting
Specifications And Special Tools
-FUEL SYSTEM
Fuel System – General
Injectors
Fuel Injection Pump – In-Linetype
Trouble Shooting, Specifications, Test Plans And Special Tools
-ELECTRICAL SYSTEMS
Wiring, Lights, Switches And Instrumentation
Battery
Starting System
Charging System – Alternator With Integral Regulator
Trouble Shooting, Specifications, Special Tools And Wiring Diagrams
Electronic Instrument Panel
Performance Monitor
Wiring And Electrical System Changes After October 1985
Fuses And Wiring Diagram For Ford 8530,8630,8730 And 8830 Tractors
-CLUTCHES
Clutches
Servicing Clutch Associated Parts
Trouble Shooting, Specifications And Special Tools
-TRANSMISSION SYSTEMS
Seven And Eight Speed Transmissions
Dual Power Transmission
Low Pressure Hydraulic System
Trouble Shooting, Specifications And Special Tools
Ultra-Command Powershift Transmission Ford 8630, 8730 And 8830
Powershift Transmission Calibration,
Initial Tests And Limp Home, Wiring Circuits, Trouble Shooting, Pressure Testing, Specifications And Special Tools Ford 8630, 8730 And 8830
Low Pressure Hydraulic System Ford 8530, 8630, 8730 And 8830
Creeper Reduction Gearset Ford 8530, 8630, 8730 And 8830
-POWER TAKE-OFF
Servicing The Independent Power Take-Off
Trouble Shooting, Specifications And Special Tools
-REAR AXLE AND BRAKES
Servicing The Rear Axle Assembly And Brakes
Trouble Shooting, Pressure Tests, Specifications And Special Tools
Power Brakes Ford 8530, 8630, 8730 And 8830
Transmission Handbrake Assembly Two Wheel Drive 8530,8630,8730 And 8830 Models
-HYDRAULIC SYSTEM
Hydraulic System Circuit-Tractors Prior To April 1985
Hydraulic Power Lift Tractors Prior To April 1985
Component Overhaul Tractors Prior To April 1985
Trouble Shooting, Pressure Testing, Specifications And Special Tools Tractors Prior To April 1985
Upgraded Hydraulic System Circuit Tractors Post April 1985
Hydraulic Power Lift-Tractors Post April 1985
Component Overhaul-Tractors Post April 1985
Trouble Shooting, Pressure Testing, Specifications And Special Tools Tractors Post April 1985
-STEERING SYSTEM
Hydrostatic Steering System
Trouble Shooting, Specifications And Special Tools
-FRONT AXLE
Two Wheel Drive Front Axle
Front Wheel Drive Transfer Box For All Front Axle Types
Front Wheel Drive Axle Assembly
Ford Tw5 And Tw15 With Apl 345 Type Axle
Specification And Special Tools
Front Wheel Drive Axle Assemblies -Ford Tw5, Tw15, Tw25 And Tw35 With Apl 355 And 365 Type Axles
Specifications And Special Tools For Ford Tw5, Tw15, Tw25 And Tw35 With Apl 355 And 365 Axles And Associated Transfer Boxes
8530, 8630, 8730 And 8830 Tractors Installed With Dana Four Wheel Drive Axle
Carraro Transfer Box For 8530, 8630, 8730 And 8830 Tractors Installed With Dana Four Wheel Drive Axle
-FORD TRACTOR SAFETY CABS AND PLATFORMS
Ford Tractor Safety Cabs And Platforms Prior To November 1985 – Description And Serviceability
Ford Tractor Safety Cabs And Platforms Prior To November 1985 Removal And Replacement
Specifications And Special Tools Prior To November 1985
Ford Tractor Safety Cab Post November 1985
-SEPARATING THE TRACTOR
Component Removal
Specifications And Special Tools
-ACCESSORIES AND GENERAL
Air Conditioning Systems —Tractors Prior To November 1985
Cab Heating System — Tractors Prior To November 1985
Hydraulic Trailer Brake Valve
Air Conditioning Systems — Tractors Post November 1985
Cab Heating System — Tractors Post November 1985
