Gehl 192 222 Parts Manual Mini Excavator 908539 manuals in PDF

Factory Parts Manual For Gehl 192, 222 Mini Excavator. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 130
Number: 908539
Bookmarks: Yes
Searchable: Yes
Parts List: Yes
Parts Exploded view: Yes

Model

Gehl Mini Excavator

192
222

Contents

-UNDERCARRIAGE
Model 192 — Undercarriage
Model 222 — Undercarriage
Models 192-222 — Track Tension
Models 192-222 — Track Roller
Models 192-222 — Track Roller
-DOZER BLADE
Models 192-222 — Dozer Blade
Models 192-222 — Dozer Blade Extension
-CHASSIS

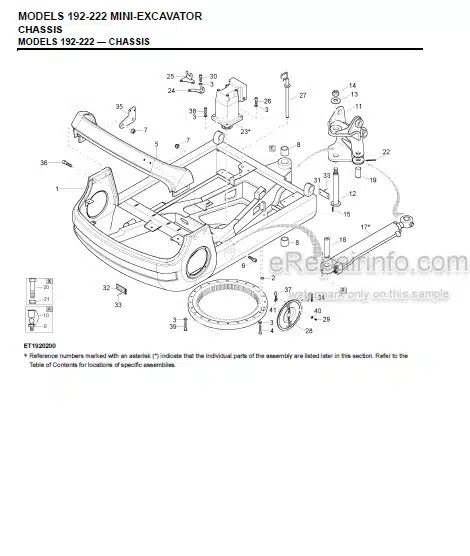

Models 192-222 — Chassis
Models 192-222 — Chassis Covers
Models 192-222 — Chassis Lubrication
Models 192-222 — Valve Bracket
Models 192-222 — Hood
-TILT FRAME
Models 192-222 — Tilt Frame
Models 192-222 — Isolation Mats
Models 192-222 — Tool Box
-BOOM
Models 192-222 — Boom
Models 192-222 — Stick
-CABIN
Models 192-222 — Cabin
Models 192-222 — Cabin Frame
Models 192-222 — Radio Kit
Models 192-222 — Cabin Cables
Models 192-222 — Windshield
Models 192-222 — Lower Front Windshield
Models 192-222 — Upper Front Windshield
Models 192-222 — Side Window
Models 192-222 — Rear Window
Models 192-222 — Cabin Door
Models 192-222 — Windshield Washer
Models 192-222 — Drivers Seat
Models 192-222 — Cab Heating
-DIESEL ENGINE
Models 192-222 — Diesel Engine
Models 192-222 — Engine Suspension
Models 192-222 — Cooling Water Radiator
Models 192-222 — Air Intake
Models 192-222 — Exhaust
Models 192-222 — Fuel Line
Models 192-222 — Accelerator
Models 192-222 — Diesel Tank
-HYDRAULIC SYSTEM
Models 192-222 — Hydraulic Pump
Models 192-222 — Hydraulic Oil Tank
Models 192-222 — Hydraulic Pump
Models 192-222 — Hydraulic Oil Cooler
Models 192-222 — Traveling Motors
Models 192-222 — Valve Angle
Models 192-222 — Control Valve
Models 192-222 — Pilot Oil Supply Unit
Model 192 — Swivel Joint
Model 222 — Swivel Joint
Models 192-222 — Turning Motor
Models 192-222 — Selection Valve
Models 192-222 — Control Levers
Model 222 — Lock Valve
Model 192 — Dozer Blade Valve
Model 222 — Dozer Blade Valve
Models 192-222 — Ball Valve
Models 192-222 — Dozer Blade Cylinder
Models 192-222 — Boom Offset Cylinder
Models 192-222 — Boom Cylinder
Models 192-222 — Stick Cylinder
Models 192-222 — Bucket Cylinder
Models 192-222 — Telescopic Cylinder
Model 222 — Tilt Cylinder
Models 192-222 — Dozer Blade Valve Installation
Models 192-222 — Hydraulic Oil Cooler Installation
Model 192 — Travelingmotor Installation
Model 222 — Travelingmotor Installation
Models 192-222 — Turning Motor Installation
Models 192-222 — Pilot Oil Supply Unit Installation
Models 192-222 — Boom Offset Cylinder Installation
Model 192 — Dozer Blade Cylinder Installation
Model 222 — Dozer Blade Cylinder Installation
Model 192 — Telescopic Cylinder Installation
Model 222 — Telescopic Cylinder Installation
Model 222 — Tilt Cylinder Installation
Models 192-222 — Boom Cylinder Installation
Models 192-222 — Auxiliary Hydraulics Installation
Models 192-222 — Hand Lever Installation
-ELECTRICAL SYSTEM
Models 192-222 — Electrical Installation
Models 192-222 — Electrical Installation
Models 192-222 — Battery Installation
Models 192-222 — Control Board
Models 192-222 — Relay Box
Models 192-222 — Headlights
Models 192-222 — Horn
-TOOLS
Models 192-222 — Tools
-DECALS
Model 192 — Decals
Model 222 — Decals
