Factory Parts Manual For Gehl 680 All Wheel Steer Loader. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Number: 918122
Bookmarks: Yes
Searchable: Yes
Parts List: Yes

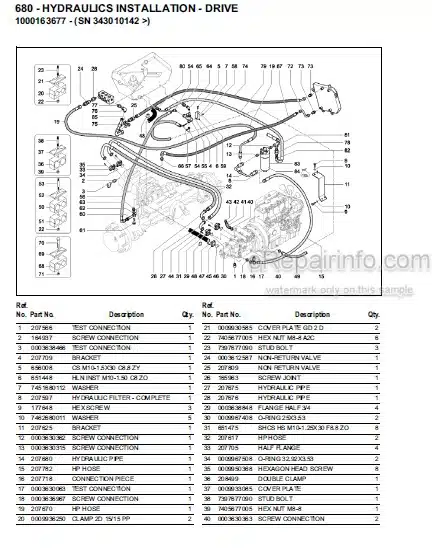

Parts Exploded view: Yes
Model
Gehl All-Wheel-Steer Loader
680
Contents
Introduction
Decal Locations
Engine Mounting
Cylinder Head
Engine Block
Engine Lubrication
Injection System
Engine Accessories
Air Filter
Exhaust Components
Fuel Tank
Throttle Pedal
Hydraulic Pump
Hydraulic Motor – 12.5 mph (25 km/h)
Hydraulic Motor – 25 mph (40 km/h)
Hydraulics Installation – Drive
Hydraulics Installation – High-Speed Gear
Oil Cooler
Oil Tank
Axles
Front Axle
Steering (Front Axle)
Locking Differential (Front Axle)
Axle Shaft (Front Axle)
Wheel Hub & Brakes (Front Axle)
Rear Axle
Steering (Rear Axle)
Locking Differential (Rear Axle)
Axle Shaft (Rear Axle)
Wheel Hub (Rear Axle)
Gearbox – 12.5 mph (20 km/h)
Gears – 12.5 mph (20 km/h)
Differential Lock – Hydraulics
Service Brake – Hydraulics
Parking Brake
Hydraulics Installation – Steering
Hydraulics Installation – Pilot Valve
Hydraulics Installation – Boom
Hydraulics Installation – Hose Burst
Auxiliary Control Circuit
Control Lever Console
Control Valve
Instrument Panel
Tilt Cylinder
Lift Cylinder
Pilot Valve – Float Position
Lights
Battery
Wiring Harnesses
Main Harness
Wiring Harness – Cab
Wiring Harness – Steering Column
Wiring Harness – Arm Rest
Wiring Harness – Arm Rest (Option)
Wiring Harness – Work Lights
Tires
Frame/Counterweights
Trim and Engine Cover
Wheel Covers – Trim
Loader Unit
Cabin
Cabin Door – Left
Cabin Door – Right
Cabin Trim
Quick Hitch Assembly
Operator’s Seat – Upper
Operator’s Seat – Lower
Operator’s Seat – Attachments
Heater
Air Conditioner
Tools
Buckets
Pallet Forks (48″)
Alphabetical Index
Numerical Index
