Gehl CB750 Service Parts Manual Forage Harvester 902762 manuals in PDF

Factory Service Parts Manual For Gehl CB750 Forage Harvester. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 60
Number: 902762
Parts List: Yes

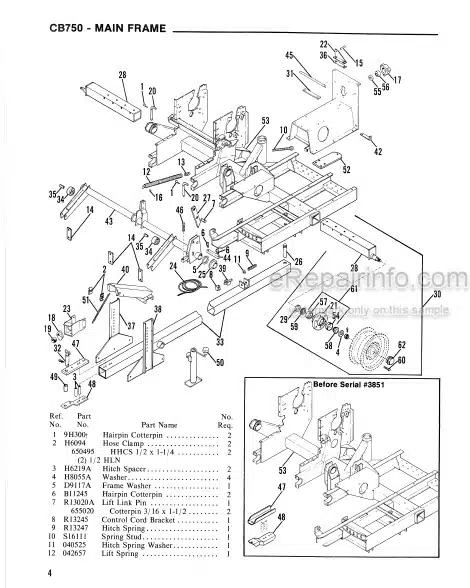

Parts Exploded view: Yes

Model

Gehl Forage Harvester

CB750

Contents

Introduction
Table of Contents
Decal Locations
Main Frame
Implement Drive Line
Blower & Drive
-CYLINDER & CUTTING MECHANISM
Used After Serial #3850
Used Before Serial #3851
GUARDS, SHIELDS & COVERS
-FEED ROLLS
Stationary & Supporting Parts
Rolls, Sheets & Roll Drives
SHIFTER (SAC) TRANSMISSION
BEVEL GEARBOX
DEFLECTOR & CAP
CONTROL BOX
-UNIVERSAL DRIVES
Tubular Drive (35 Series)
Tubular Drive (55 Series)
Cylinder Drive
Telescoping Drive (35 Series for 540 RPM)
Telescoping Drive (35 Series for 1000 RPM)
Telescoping Drive (55 Series for 540 RPM)
Telescoping Drive (55 Series for 1000 RPM)
HITCHJACK
TOOLBOX SUPPLIES
-OPTIONS
Manual Deflector, Cap & Shifter Transmission Controls (Used After Serial#3850)
Manual Deflector & Cap Controls (Used Before Serial#3851)
Hydraulic Deflector Control, Manual Cap & Manual Shifter Transmission Controls (Used After Serial)#3850)
Hydraulic Deflector & Manual Cap Controls (Used Before Serial #3851)
Electric Deflector, Cap & Shifter Transmission Controls (Used After Serial#3850)
Hydraulic Deflector & Electric Cap Controls (Used Before Serial #3851)
Manual Touch-up Knife Sharpener
Wheel Sets
-ACCESSORIES
Horizontal Deflector Extension Kits 316ft & 5l/6ft (Used After Serial #3850)
Horizontal Deflector Extension Kits 3ft & 5ft (Used Before Serial #3851)
Tripod Kit
1 Ft Vertical Deflector Extension (Used After Serial #3850)
1 Ft Vertical Deflector Extension (Used Before Serial #3851)
2 Ft Vertical Deflector Extension (Used After Serial #3850)
Electric Remote 3-Switch Control Box (Used After Serial #3850)
Electric Control, Wiring & Mounting Hardware (Used Before Serial #3851)
Deflector Liner Kit
Hydraulic Lift Cylinder & Hose Kit
Hydraulic Deflector Cylinder & Hose Kit
Slotted Screen Kit
Square-Holed Screens
Square-Holed Screen Mounting Kit
One Knife Counter Balance Kit
Cylinder Knife Set
5/16″Length-of-Cut Kit
1/8″ Length-of-Cut Kit
Power Cord Extension
Torque Wrench
NUMERICAL INDEX
STANDARD HARDWARE TORQUE SPECIFICATIONS
ATTACHING HARDWARE TABLE

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
