Gehl DL Series Dynalift DL7 DL9 DL11 DL12 Parts Manual Telescopic Handlers 913272 manuals in PDF

Factory Parts Manual For Gehl DL Series Dynalift- DL7, DL9, DL11, DL12 Telescopic Handlers. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 348
Number: 913272
Bookmarks: Yes
Searchable: Yes
Parts List: Yes

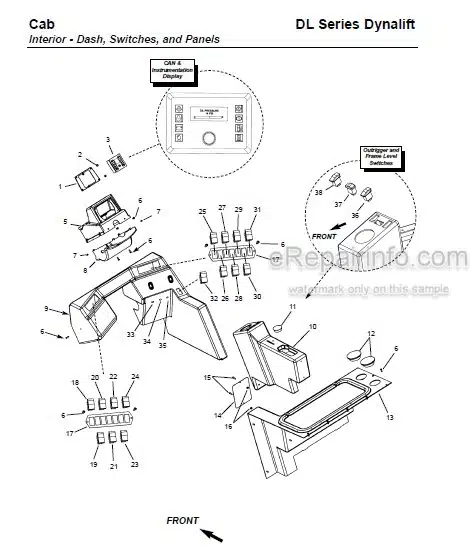

Parts Exploded view: Yes

Model

Gehl DL Series Dynalift

DL7
DL9
DL11
DL12

Contents

-INTRODUCTION
Locator Reference
Table of Contents
-FILTERS
Filters
Analysis Kits (Fluid Analysis)
-CAB
Standard
Options
Front Window
Wiper – Front
Top Window and Wiper
Window – Left
Window – Rear
Door – Upper
Door – Lower
Interior – Dash, Switches, and Panels
Heater (No Air Conditioning)
Air Conditioner and Heater
Air Conditioner – Condenser
Air Conditioner – Hoses, Compressor, and Dryer
Steering Column Group
Steering Column – Tilt Assembly
Pedals – Brake and Throttle
Seat
Cab Components
-PERSONNEL WORK PLATFORM SYSTEM
Personnel Work Platform – 3 -Section Boom Components
Personnel Work Platform – 4 -Section Boom Components
Radio Remote Components
-CHASSIS
Rear Door
Hood – Engine and Transmission
Battery Group
Hydraulic Tank Group
Fuel Tank Group
Outriggers
Table of Contents DL Series Dynalift
-ENGINE
External Engine Components Group
Radiator and Cooler Group
Air Cleaner Group
Exhaust Group
-TRANSFER CASE
External Components
Assembly Group
-TRANSMISSION
External Components, Electronics and Driveshafts
Electronic Controller and Display
Converter Housing Group
Case Group
Torque Converter
Charge Pump
Pump Drive
Gears and Shaft – Forward Low/High
Gears and Shaft – Reverse/ st
Gears and Shaft – 2nd
Gears and Shaft – Input
Gears and Shaft – Output
Drive Plate Group
Control Valve Group
Control Valve Assembly
-AXLES
Front and Rear – External Components
Front and Rear – Housing
Front and Rear – Swivel Housing and Steer Cylinder
Front – Ring Gear and Pinion
Rear – Ring Gear and Pinion
Front and Rear – Differential
Front and Rear – Axle Shaft
Front and Rear – Wheel Hub and Planetary
Front and Rear – Brakes
Parking Brake Caliper Assembly
-BOOM
Boom – Three-Section High
Front – Boom Chain-Drive Assembly
Rear – Boom Chain-Drive Assembly
Outer Boom – Rear Section
Outer Boom – Side Cover
Outer Boom – Front Section
Intermediate Boom – Rear Section
Intermediate Boom – Front Section
Intermediate Boom – Chain Group
Intermediate Boom – Hose Tray
Boom – Four-Section High
Outer Boom – Rear Section
Outer Boom – Front Section
First Intermediate Boom – Rear Section
First Intermediate Boom – Front Section
Second Intermediate Boom – Rear Section
Second Intermediate Boom – Front Section
Inner Boom – Rear Section
Boom – Three- and Four-Section High
Inner Boom – Front Section
Dynacarrier® Bracket (Standard)
Dynacarrier® Bracket (Hydraulic Option)
Dynattach® Bracket
Boom – Four-Section Low
Outer Boom – Rear Section
Outer Boom – Front Section
First Intermediate Boom – Rear Section
First Intermediate Boom – Front Section
Second Intermediate Boom – Rear Section
Second Intermediate Boom – Front Section
Inner Boom – Rear Section
Inner Boom – Front Section
Dynacarrier® Bracket (Standard)
Dynacarrier® Bracket (Hydraulic Option)
Dynattach® Bracket
-BOOM HYDRAULICS
Boom Lift Cylinder Group
Boom Slave Cylinder Group
Tilt Cylinder Group – Three-Section High Boom
Tilt Cylinder Group – Four-Section High Boom
Tilt Cylinder Group – Four-Section Low Boom
Boom Extend Cylinder Group – Three-Section High Boom
Boom Extend Cylinder Group – Four-Section High Boom
Boom Extend Cylinder Group – Four-Section Low Boom
Boom Auxiliary Hydraulics Group – Three-Section High Boom
Boom Auxiliary Hydraulics Group – Four-Section High Boom
Boom Auxiliary Hydraulics Group – Four-Section Low Boom
-HYDRAULICS
Hydraulic Pump, Accumulator and Hoses
Hydraulic Pump and Hoses – Outrigger
SAHR and Accumulator
Steer Select Group
Axle – Steering and Brake Lines Group
Chassis – Steering and Brake Lines Group
Parking Brake Intensifier Group
Brake Valve and Hoses
Steer Motor and Hoses
Frame Level Valve and Hoses
Main Control Valve and Hoses
Tri-Function (Four-Button) Manifold – Standard Hydraulics
Tri-Function (Four-Button) Manifold – w/Auxiliary Hydraulics
Tri-Function (Four-Button) Manifold – Radio Remote Option
Dual-Function (Two-Button) Manifold – Standard Hydraulics
Dual-Function (Two-Button) Manifold – w/Auxiliary Hydraulics
Dual-Function (Two-Button) Manifold – Radio Remote Option
Dual-Function (Two-Button) Manifold – Radio Remote w/Aux Hyd
Outrigger Valve and Hoses
Outrigger Manifold and Hoses
Tri-Function (Four-Button) Controller
Dual-Function (Two-Button) Controller
Frame Level Cylinder Group
Frame Stabilizer Cylinder Group
-HYDRAULIC COMPONENTS
Flow Divider Valve
SAHR Valve
Steer Select Valve
Frame Level Valve
Main Control Valve
Auxiliary Hydraulic Valve Section
Pilot Manifold – Dual-Function (Two-Button)
Pilot Manifold – Tri-Function (Four-Button) Joystick Option
Radio Remote Manifold
Outrigger Valve
Outrigger Manifold
Tri-Function (Four-Button) Controller
Dual-Function (Two-Button) Controller
Frame Stabilizer Manifold
-CYLINDERS
Dynacarrier® Bracket – Hydraulic Lock Cylinder
Frame Level Cylinder
Frame Stabilizer Cylinder
Boom-Lift Cylinder
Slave Cylinder
Tilt Cylinder
Boom Extend Cylinder – Three-Section Boom
Boom Extend Cylinder – Four-Section Boom
Outrigger Cylinder
Swing-Carriage Cylinder
Rotate-Carriage Cylinder
Fork-Shift-Carriage Cylinder
Grapple Cylinder
-ATTACHMENTS
Carriage Forks
-Dynattach® Attachments
Standard Carriage
Rotating Carriage
Swing Carriage
Log/Pipe Carriage
Fork-Shift Carriage
Bucket,1.3-cubic-yard
Truss Boom and Winch
-Dynacarrier® Attachments
Standard Carriage
Rotating Carriage
Log/Pipe Carriage
Truss Boom and Winch
Bucket,1.3-cubic-yard
Bucket,3.0-cubic-yard
-WORK PLATFORM
Work Platform
-DECALS
General Information and Application
Cab
Frame and Boom
Personnel Work Platform System
Various
-INDEX
Numerical Index
Subject Index
