Gehl RS6-42 RS8-42 RS8-44 Parts Manual Telescopic Handler 913273 manuals in PDF

Factory Parts Manual For Gehl RS6-42, RS8-42, RS8-44 Telescopic Handler. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 292
Number: 913273
Bookmarks: Yes
Searchable: Yes
Parts List: Yes
Parts Exploded View: Yes

Model

Gehl Telescopic Handlers

RS6-42
RS8-42
RS8-44

Contents

-INTRODUCTION
Table of Contents
Filter Reference
-CAB

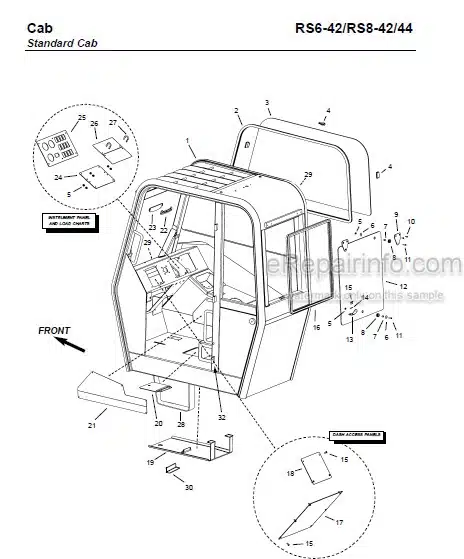

Standard Cab
Front and Rear Window (Enclosed Cab)
Wipers – Front and Rear Window (Enclosed Cab)
Top and Left Window (Enclosed Cab)
Cab Door (Enclosed Cab)
Instrument Panel and Switches
Fuses, Wire Harnesses and Electrical
Front and Rear Lights
Heater
Steering Column Components
Seat
Tri-Function Cab Components (Option)
Brake Valve
Brake and Accelerator Pedals
Cab Mounts
Chassis, Covers and Tanks
Outrigger
Hoods and Covers
Fuel Tank and Battery
Hydraulic Tank
-PWP (PERSONNEL WORK PLATFORM)
Personnel Work Platform Group
Radio Remote – Transmitter and Receiver
-ENGINE
External Components – 115 H.P Engine
External Components – 99 H.P Engine
Air Intake – 115 H.P Engine
Air Intake – 99 H.P Engine
Exhaust
Radiator and Coolers (115 H.P Engine)
Radiator and Coolers (115 H.P Engine)
-TRANSMISSION
External Components and Driveshafts
Torque Converter Housing
Case and Plate
Torque Converter
Gear Assembly
Drive Pump
Charge Pump
Reverse Idler
Forward and Reverse
Third Shaft
First and Second Shaft
Output Shaft
Electronic Controllers
Drive Plate
Modulation Valves
-AXLES
External Components
Brake and Steering Hydraulic Circuit
Tie Rods, Steer Cylinder and Center Housing (Front and Rear)
Differential (Front and Rear)
Outer End (Front and Rear)
Brakes (Front)
Brakes (Rear)
-BOOM COMPONENTS
Outer Boom (Front)
Outer Boom (Rear)
Outer Boom Side Cover
Intermediate Boom (Front)
Intermediate Boom (Rear)
Intermediate Boom Hose Tray
Intermediate Boom Chain
Inner Boom (Front)
Inner Boom (Rear)
Dynattach® Assembly
-BOOM HYDRAULICS
Boom Extend / Retract
Tilt
Slave (Compensation)
Boom Up/Down
Auxiliary Hydraulics Circuit
-CHASSIS HYDRAULICS
Frame Level
Frame Stabilizer
-HYDRAULICS
Hydraulic Pump
Steering
Main Valve
Main Valve – Dual Controls
Main Valve – Tri-Function Controller
Main Valve – Tri-Function Controller (w/Auxiliary Hydraulics)
Main Valve – Tri-Function Controller (w/PWP)
Main Valve – Tri-Function Controller (w/PWP and Auxiliary Hydraulics)
Main Valve – Radio Remote Control Option
Dual Controls (Standard)
Dual Controls (w/Auxiliary Hydraulics)
Dual Controls (w/Outriggers)
Dual Controls (All Options except PWP)
Dual Controls (w/PWP Only)
Dual Controls (w/PWP and Outriggers)
Dual Controls (w/PWP and Auxiliary Hydraulics)
Dual Controls (w/PWP, Outriggers and Auxiliary Hydraulics)
Dual Controls (Radio Remote)
Dual Controls (Radio Remote – w/Outriggers)
Dual Controls (Radio Remote – w/Auxiliary Hydraulics)
Dual Controls (Radio Remote – w/Auxiliary Hydraulics and Outriggers)
Tri-Function Controller (No Options)
Tri-Function Controller (w/Outriggers)
Tri-Function Controller (w/PWP)
Tri-Function Controller (w/PWP and Outriggers)
Tri-Function Controller (Radio Remote)
Tri-Function Controller (Radio Remote – w/Outriggers)
Outrigger Main Valve / Controller
-HYDRAULIC CYLINDERS
Frame Level
Stabilizing
Boom Lift
Boom Extend
Slave (Compensation)
Tilt
Outrigger
Rotate Carriage
Swing Carriage
Fork Shift
Axle Steer
-HYDRAULIC COMPONENTS
Hydraulic Pump
Master Cylinder Brake Valve
Power Steer Motor
Steer Select Valve
Priority Flow Divider Valve
Joystick Relief – Flow Divider
Pilot Apply Valve – Tri-Function Controller (Option)
PWP Manifold
Stabilizing Valve
Radio Remote Manifold
Main Valve
Main Valve – Auxiliary Hydraulics Work Section
Outrigger Control Valve
Controller – Tilt / Frame Level (Standard)
Controller – Boom Lift/Extend (Standard)
Controller – Outrigger (Option)
Controller – Auxiliary Hydraulics (Standard) – Frame Level (Tri-Function)
Controller – Tri-Function (Option)
-ATTACHMENTS
Carriage Forks
Standard Carriage
Fork Shift Carriage
Rotate Carriage
Swing Carriage
O Swing Carriage
O Manual Swing Work Platform
Log/Pipe Carriage
Truss Boom and Winch
Bucket
Work Platform
-DECALS
Decal Application and Paint
Decal Locations
Numerical Index
Index
