Factory Parts Manual For Gehl SL4640, SL4840, SL5640, SL6640, SL4640E, SL4840E, SL5640E, SL6640E, SL4640EU, SL4640E-EU, SL4840EU, SL4840E-EU, SL5640EU, SL5640E-EU, SL6640EU, SL6640E-EU Skid-Steer Loader. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 350
Number: 917000
Searchable: Yes
Parts List: Yes

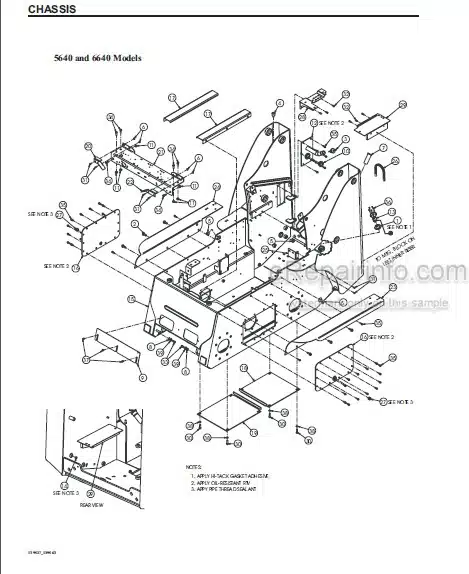

Parts Exploded View: Yes
Model
Gehl Skid-Steer Loaders
SL4640
SL4840
SL5640
SL6640
SL4640E
SL4840E
SL5640E
SL6640E
SL4640EU
SL4640E-EU
SL4840EU
SL4840E-EU
SL5640EU
SL5640E-EU
SL6640EU
SL6640E-EU
Contents
-MAIN LOADER COMPONENTS
Chassis and Control Covers
Wheel Drives
Engine
Air Cleaner and Muffler
Coolers
Hydrostatic System – Drive Motors
Hydraulics – Chassis
Hydraulics – Lift Arm
Hydraulics – Auxiliary
Controls – Auxiliary Hydraulics
Controls – Lift and Tilt
Controls – Traction
Controls – Engine
Lift Arm
All-Tach™ and Power-A-Tach™ Attachment Bracket
ROPS and Interior
Seat and Seat Belt Options
Restraint Bar
Grille and Engine Covers
Electrical – Chassis
Electrical – ROPS
Electrical – Lights
Ignition Switch (Earlier Models)
Electrical – Control
Sound Suppression
Tires
Decals
-HYDRAULIC COMPONENTS
Lift Cylinder
Tilt Cylinder
Drive Motors – Single and Two-Speed
Tandem Pump
Gear Pump – Single
Gear Pump – Double
Self-Level Valve
Solenoids – Lift and Tilt
Solenoids – Brake
Main Control Valve
Manifold – Hydraglide™ Ride Control
High-Flow Valve
-KITS, ACCESSORIES AND FILTERS
Filter Chart, Analysis Kits, Kits Listing
Back-up Alarm Kit
Horn Kit and the Rearview Mirror Kit
AM/FM Radio Kit
Power-A-Tach™ Kit
Front Door Kit
Seat Belt Kits
Seat Kits – Suspension
Side Window Kit
3-Point Restraint-Seat Belt
Pre-Cleaner Kit and the Strobe Light Kit
Counterweight Kit
Crossmember Auxiliary Tube Kit
Cab Heater Kit
Dual Flasher Kit
Servo Bypass Plumbing Kit
Impact-Resistant Front Door Kit
Four-Point Lift Kit
Remote Oil Filter Kit
Single-Point Lift Kit
Cab Heater Rework Kit (Factory) (Field) Heaters
Interior Console Kit
Power-A-Tach™ Actuator Kit
HVAC Kit
Cab – HVAC Combination Kit Service Parts Assemblies
Cab Sound Suppression Kit
Dual Glow Upgrade Kit
Remote Battery Terminal Kit and the Engine Pan Heater Kit
Backup Alarm Kit for Dual Joystick and the Cab Sound Suppression Kit
Radio, AM-FM-WB Kit
Hydraulic Dampening Kit
Four-Point Lift Kit
Hydraulic Power All-Tach™ Kit
14-Pin Connector for Auxiliary Attachments Kit
Other Available Accessories
-SCHEMATICS
Hydrostatic/Hydraulic Schematic – Non-Dual and Dual Joystick Controls
Electrical Schematics – ROPS and Chassis
Heater Schematic
HVAC Schematic
Electrical Auxiliary Hydraulics Schematic – Dual Joystick
Electrical Auxiliary Schematic – -Pin Connector
Electrical Schematic – Door Kit
NUMERICAL INDEX
O-RING TABLE, COUPLING & ADAPTER TORQUE TABLE
TORQUE SPECIFICATIONS TABLE
