Factory Supplement And Operators Manual For Grove Crane. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: ENG; ESP; POR
Quantity of Manuals: 3
Pages: 178; 172; 168
Number: CTRL495-00 (june 2014)

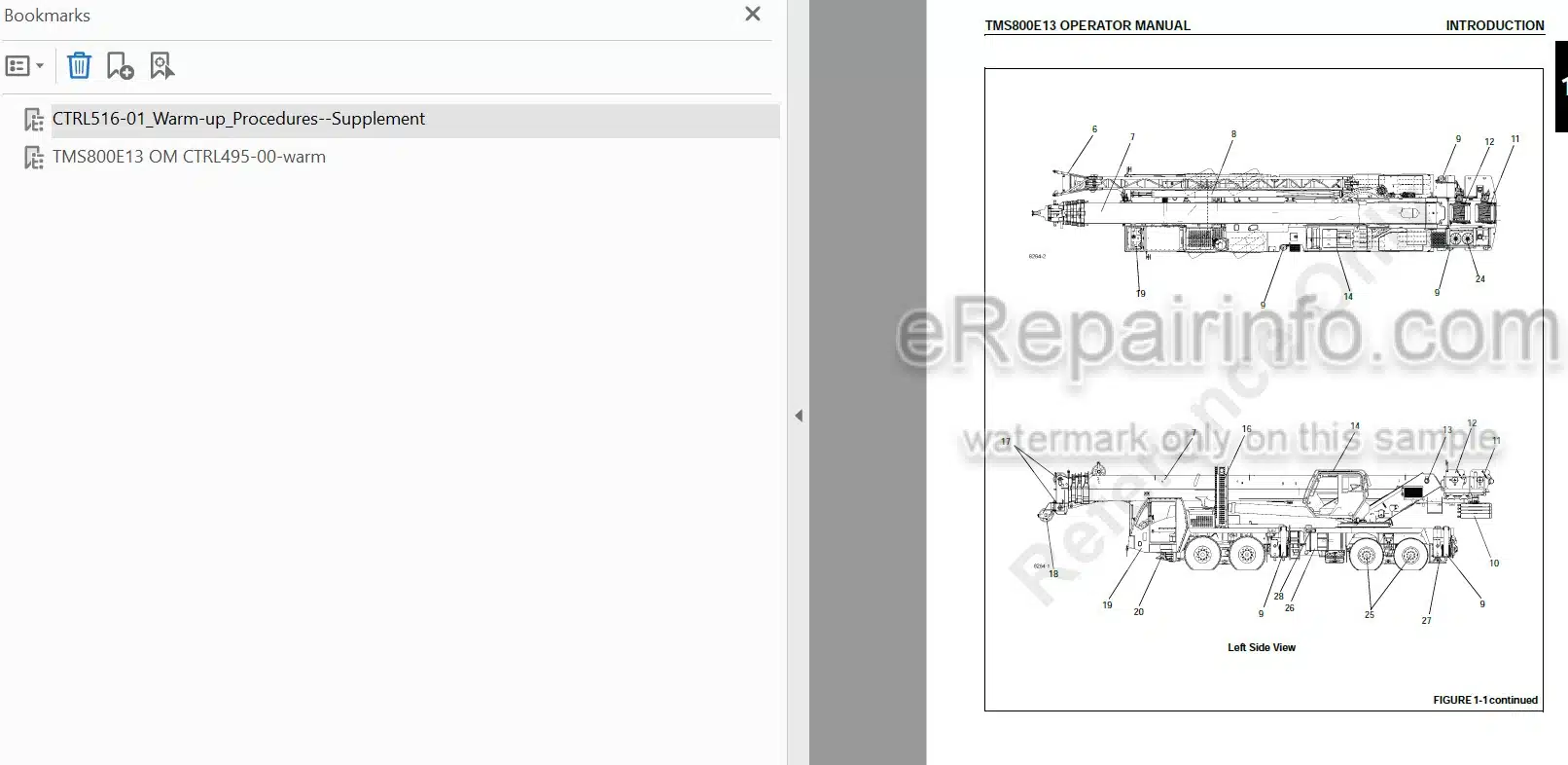

Bookmarks: Yes
Searchable: Yes

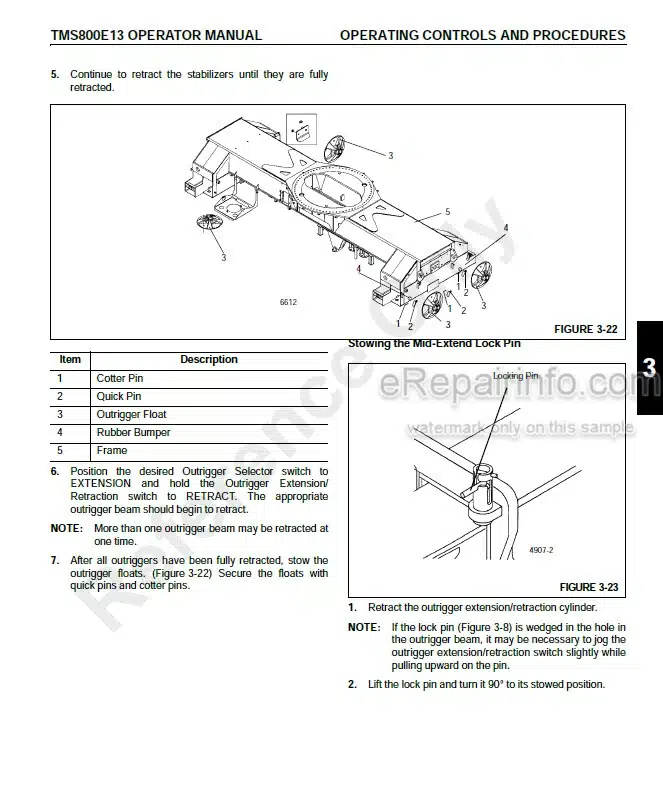

Model
Grove Crane
TMS800E13
Contents
-SUPPLEMENT
Crane Warm-up Procedures
-INTRODUCTION
General
New Owner
-SAFETY INFORMATION
Safety Messages
General
Accidents
Operator’s Information
Operator’s Qualifications
Operational Aids
Crane Stability/Structural Strength
Electrocution Hazard
Personnel Handling
Environmental Protection
Maintenance
Transporting the Crane
Travel Operation
Work Practices
Boom Extension
Parking and Securing
Shut-Down
Cold Weather Operation
Temperature Effects on Hook Blocks
Temperature Effects on Hydraulic Cylinders
Model Specific Information
Overload Inspection
-OPERATING CONTROLS AND PROCEDURES
Carrier Cab
Superstructure Cab
Operating Procedures
Trailing Boom (Optional)
Pile Driving and Extraction
Stowing and Parking
-SET-UP AND INSTALLATION
General
Installing Cable On The Hoist
Cable Reeving
Dead-End Rigging/Wedge Sockets
Removable Counterweight
Installing the Bi-Fold Manual Jib
Jib Erecting and Stowing Procedure
Removing the Bi-Fold Manual Jib
Installing/Removing 49 m (16 ft) Sections
Jib (Additional Equipment)
Assembly Of Jibs
Auxiliary Single-Sheave Boom Nose (Additional Equipment)
Rigging the Auxiliary Single-Sheave Boom Nose
Raising And Setting Down The Main Boom With Rigged Lattice Extension
Telescoping With Rigged Lattice Extension
Operating with the Lattice Extension
Monthly Maintenance Work
-LUBRICATION
General
Environmental Protection
ALL Weather Package & Lubricants
Standard Lubricants Package
Lubrication Points
Carrier Lubrication
Superstructure Lubrication
Boom, jib, and Boom Accessories Lubrication
Wire Rope Lubrication
-MAINTENANCE CHECKLIST
General
Instructions
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
