Hitachi Zaxis 200LC To 240 Parts Catalog Excavator PIG6-1-7 manuals in PDF

Factory Parts Catalog For Hitachi Zaxis Excavator. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 872
Number: PIG6-1-7 (december 2003)
Bookmarks: Yes
Parts List: Yes

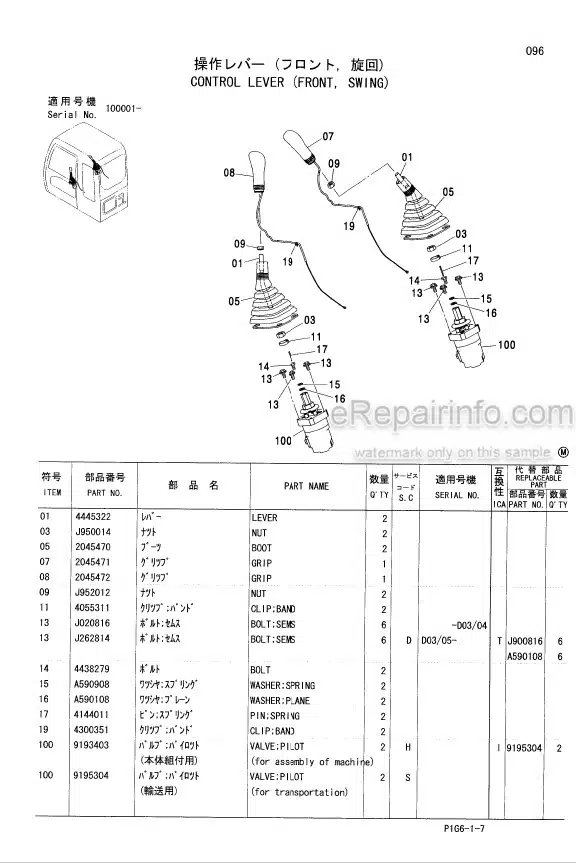

Parts Exploded View: Yes

Model

Hitachi Zaxis Excavator
200
200LC
200E
200LCE
210
210LC
210H
210LCH
210K
210LCK
210N
240

Serial No. 100001-

Contents

-UPPERSTRUCTURE
Frame
Boom Foot Pin
Center Joint Parts (Upperstructure)
Counterweight
Engine
Engine Support
Oil Filter Piping
Inter Cooler Piping
Inter Cooler Net
Radiator
Radiator Support
Radiator Cover
Reserve Tank
Air Cleaner
Air Cleaner Support
Air Cleaner Parts
Muffler
Fuel Tank
Fuel Tank Support
Fuel Piping
Fuel Feed Pump
Fuel Double Filter
Pump Device
Pump Device Support
Swing Device
Swing Device Support
Oil Tank
High Performance Filter Kit
Suction Piping
Delivery Piping
Return Piping
Drain Piping
Main Piping
Boom Bottom Piping
Frame Parts (Boom Damping)
Boom Damping System
Side Branch Piping
Swing Reactionless Valve
Auto. Engine Control
Engine Control Motor
Engine Stop Cable
Manual Engine Control
Manual Engine Control Parts
Control Lever
Lock Lever
Control Valve
Control Valve Support
Solenoid Valve
Pilot Piping
Console
Console Cover
Right Cover
Radio (Am/Fm)
Radio Less Parts
Control Unit
Electric Parts
Switch Box
Satellite Data Communicator Parts
Front Head Lamp
Rear Head Lamp
Rotating Beacon
Fuse
Boom Light Harness
Boom Light
Horn
Swing Motion Alarm
Travel Motion Alarm
Over Load Alarm Device
Air Conditioner
Air-Con. Unit
Air Conditioner
Condenser Net
Heater Piping
Car Heater
Heater Unit
Duct
Rear Box (Air-Con. Heater)
Power Unit (12V)
Cab Group
Cab
Cab Guard
Window Guard
Cab Mirror
Power Window
Power Window Parts
Window Washer
Sunshade
Sunvisor
Floor Parts
Floor Parts (Heater Less)
Floor Plate
Seat
Suspension Seat
Air-Suspension Seat (With Heater)
Heater Seat Parts
Seat Belt
Seat Stand
Cover
Tropical Cover
Door Lock
Weather Strip
Engine Cover
Tool Cover
Undercover
-UNDERCARRIAGE
Track Frame
Track Guard
Full-Length Track Guard
Step
Additional Step
Swing Bearing
Swing Bearing Parts
Travel Device
Travel Device Support
Front Idler
Adjuster
Upper Roller
Lower Roller
Track-Link
Pad Crawler B600
Center Joint
Center Joint Support (Track)
Travel Piping
Travel Motor Cover
-FRONT-END ATTACHMENTS (MONO BOOM)
Std. Boom
Boom
K Boom
Arm
Harm
Link
Front Piping (Mono Boom)
Boom Cylinder
Arm Cylinder
Bucket Cylinder
Lubricate Piping (Mono Boom)
Auto. Lubricate Device
Auto. Lubricate Piping
Bucket
Side-Pin Type Bucket
Ripper Bucket
One-Point Ripper
Slope-Finishing Blade
V-Type Bucket
Hose Rupture Valve Piping
-FRONT-END ATTACHMENTS (2P-BOOM)
2P-B00M
Arm
Front Piping (2P-Boom)
Arm Cylinder (2P-Boom)
Positioning Cylinder (2P-Boom)
Lubricate Piping (2P-Boom)
Control Pedal (2P-Boom)
Pilot Piping
Main Piping (2P-Boom)
Hose Rupture Valve Piping
-RIVER MAINTENANCE FRONT [15 TYPE]
Boom Bottom Piping (River Maintenance)
Boom
Arm
Bucket
Ditch Cleaning Bucket
Front Piping
Lubricate Piping
-BREAKER & CRUSHER PARTS
Control Pedal (Breaker & Crusher)
Pilot Piping (Breaker & Crusher)
Main Piping (Breaker & Crusher)
Boom Piping (Breaker & Crusher)
Arm Piping (Breaker & Crusher)
Arm Piping
NPK Common Piping (Breaker & Crusher)
HSB Common Piping (Breaker & Crusher) [Mono Boom]
HSB Breaker Piping (Breaker & Crusher)
HSB Common Piping (Breaker & Crusher)
Pilot Piping (Flow Rate Selector)
Electric Parts
Line Filter
-TRAVEL HEAT PARTS
Travel Heat Parts
Travel Heat Article
Pilot Piping
-ASSIST PIPING
Main Piping (PTO)
Pilot Piping
Add. Gear Pump
Electric Type Control Parts
Quickhitch Piping
Assist Piping
Quickhitch/Assist Common Parts
Clamshell Piping
-ETC.
2 Way Multi Lever
2 Way Multi Lever Piping
4 Way Multi Lever
4 Way Multi Lever Piping
Filter Kit
TOOLS
NAME-PLATE
PARTS INDEX
