Iseki SF224F SF235F Parts Catalog Riding Mower 832-097-100-0A manuals in PDF

Factory Parts Catalog For Iseki Riding Mower. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 229
Number: 832-097-100-0A (october 2017)
Searchable
Parts List

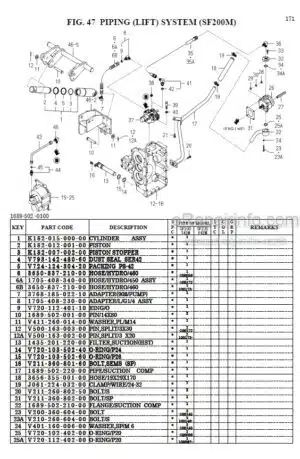

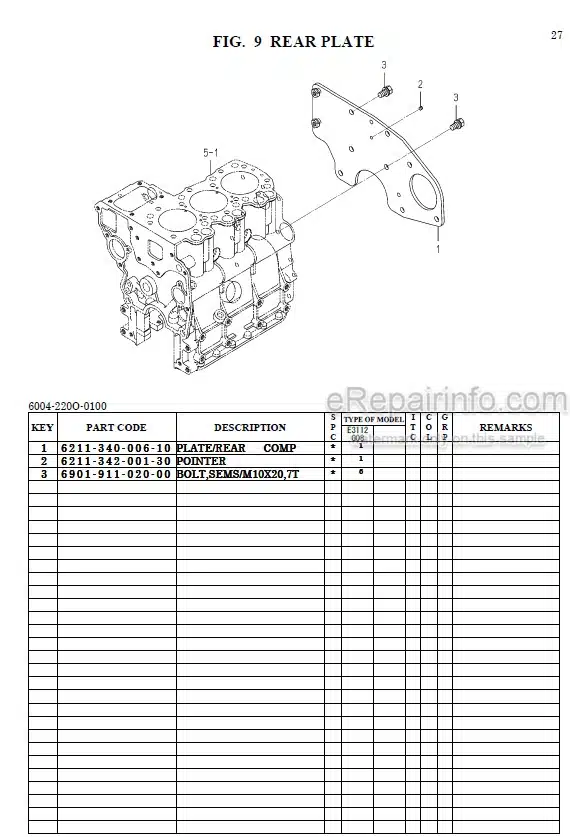

Parts Exploded View
Wiring Diagrams

Models

Iseki Riding Mower
SF224F
SF235F

Contents

– ENGINE (E3112-G08)
Short Block Engiassy
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts
– ENGINE (E3CD-VG04)
Short Block Engiassy
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing, -Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Electric
Repair Parts (Option)
Component Parts
– CHASSIS
Bracket
Radiator System
Muffler System
Cleaner (Air) System
Piping (Fuel) System
Tank (Fuel) System
Battery System
Lever (Accelerator) System
Cable (Accelerator) System
Shaft (Input) Set System
Case (Transmission) System
Metal (H St) System
Gear (Input) System
HST System
Case (Differential) System
Diff-Lock System
Pedal (Diff-Lock) System
Metal (PTO/Blower) System
Drive (PTO/Side) System
Drive (PTO/Blower) System
Cover (PTO/Side) System
Link (HST) System
Pedal (HST) System
Case (Chain) System
Shaft (Wheel/Front) System
Brake System
Pedal (Brake) System
Brake (Parking) System
Wheel (Front) System
Wheel (Steering) System
Column (Steering) System
Controller (Steering) Set System
Cylinder (Steering) System
Frame System (B Type)
Frame System (Except B Type)
Cover (Side) System
Mud Guard System
Lever (4Wd) System
Auto (4Wd) System
Housing (Axle/Rear) System
Rod (Tie) System
Wheel (Rear) System
Control System
Cylinder (Lift) System
Piping (Pump) System
Piping (Control) System
Piping (HST) System
Link (Lift) System
Hood System
Cover (Steering) System
Fender System
Seat System
Floor System
Light System
Panel (Switch) System
Switch (Safety) System
Harness System
Controller System
Frame (Main) System
Frame (Upper) System
Blower System (B Type)
Ornament
Label (Control)
Label (Caution)
Label (CE)
Weight Set System
– OPTIONAL PARTS
Plate (Bumper) & Bolt System
Weight (15) Set (Option)
– COMPONENT PARTS
Component Parts
