Factory Operation And Service Manual For Iseki Mower Deck. Manual For Owners And Operators. It Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Description Of Possible Faults / Problems And Their Solution.
Format: PDF
Language: English
Pages: 72
Number: 1007-01-XXX
Searchable
Model
Iseki Mower Deck
SSM54
SSM60
SMM54
SRM54
For TM3265, TM3245, TM3215 [E4F]
Contents
INTRODUCTION
-FOR SAFE OPERATION
How To Be A Safe Operator
Before Starting The Tractor
Operation Of The Tractor
Operation On A Slope
Mounting And Dismounting Of The Mower Drive Shaft
Inspection And Maintenance
-GENERAL INFORMATION
Machine Identification
SPECIFICATIONS

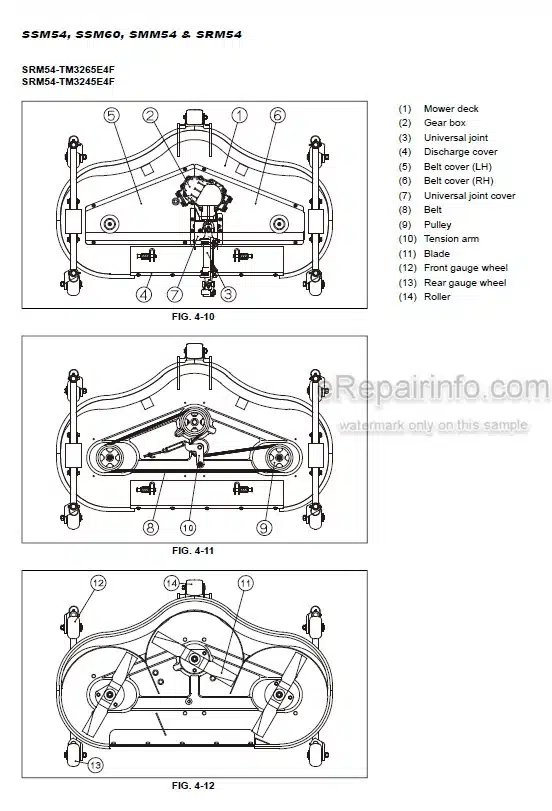

NAME OF MAJOR COMPONENTS

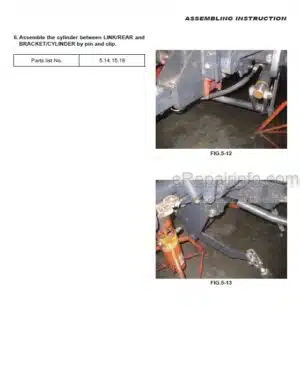

ASSEMBLING INSTRUCTION
-MOWER OPERATION
Before Operation
Height Adjust System
Starting Mowing Operation
-INSPECTION AND SERVICE OF EACH PART
Inspection And Replacement Of The Gear Box
Inspection And Replacement Of The Drive Belt
Inspection And Replacement Of The Blades
Inspection Of Gauge Wheels
Inspection Of Rollers
Cleaning Under The Belt Cover
LUBRICATION AND GREASING POINTS
-DISASSEMBLY AND REASSEMBLY
Gear Box
Backlash Adjustment
STORING OF THE MOWER DECK
TROUBLESHOOTING
PACKING PARTS LIST
What you get
You will receive PDF file with high-quality manual on your email immediately after the payment.
