Iseki SXG15H Parts Catalog Lawn And Garden Tractor 1782-095-200-00 manuals in PDF

Factory Parts Catalog For Iseki Lawn And Garden Tractor. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 126
Number: 1782-095-200-00
Searchable
Parts List

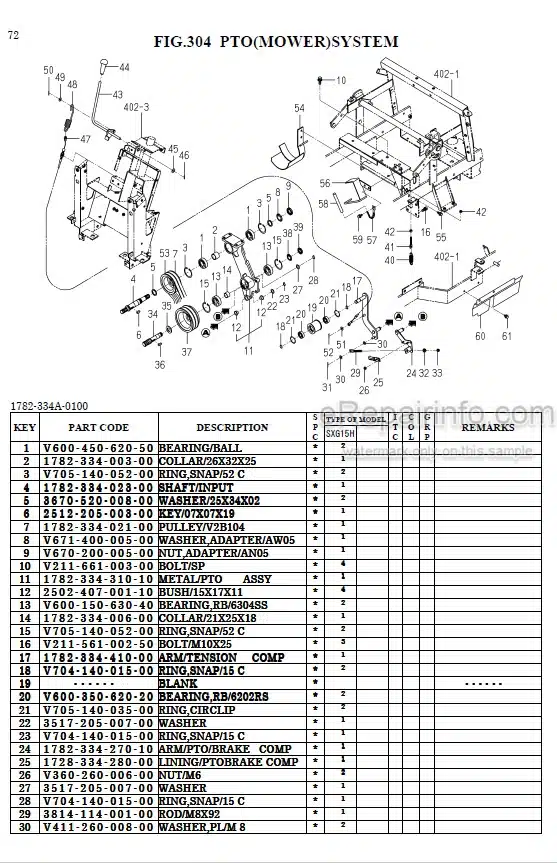

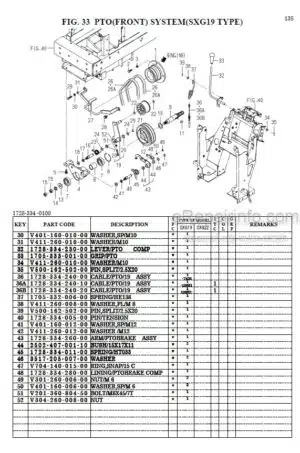

Parts Exploded View
Wiring Diagrams

Models

Iseki Mower
SXG15H

Contents

– ENGINE (E269G)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Filter
Fuel Pipe
Adapter
Electric
Short Block Assembly
Bearing/Undersize (Option)
Piston/Oversize (Option)
Repair Parts (Option)
Component Parts

– CHASSIS
Bracket (Engine) System
Radiator System
Muffler System
Cleaner (Air) System
Fuel Pump System
Fuel Tank System
Battery System
Accelerator Lever System
Input Shaft System
Counter Metal System
M3Sson (HST) System
HST Mount System
HST Link System
HST Pedal System
Brake Pedal System
Parking Brake System
Rear Wheel System
Mower PTO System
Steering Shaft System
Frame System
Under Cover System
Front Axle System
Spindle (Knuckle) System
Tie Rod System
Front Wheel System
Mower Link System
Lift Lever System
Hood System
Grille System
Cover System
Fender System
Seat System (SE42C Type)
Floor System
Headlamp System
Instrument Panel System
Main Harness System (F Type)
Main Harness System (C Type)
Chuter System
Ornament
Control Label
Caution Label

– OPTIONAL PARTS
Muffler Support (Repair)
HST Tension (Repair)
HST Support (Repair)

– COMPONENT PARTS
Component Parts
WIRING DIAGRAM

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
