Iseki TG6507 TG6507H Parts Catalog Tractor 1816-097-100-0A manuals in PDF

Factory Parts Catalog For Iseki Tractor. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 376
Number: 1816-097-100-00 (september 2020)
Searchable
Parts List

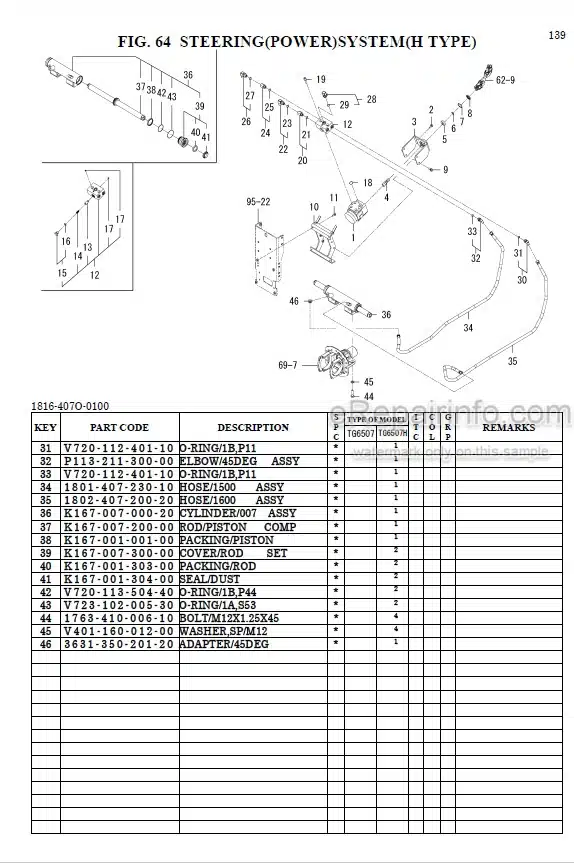

Parts Exploded View
Wiring Diagrams

Models

Iseki Tractor
TG6507
TG6507H

Contents

-TG6507, TG6507H-ENGINE (E4FH-TDEB01, TDEB03)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Turbo Charger
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Rear Plate
Timing Gear Case
Hanger (Option)
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Filter
Fuel Pipe
Electric
Label/Name
Muffler

-CHASSIS
Tool (Hood) System
Radiator System
Radiator (Plate) System
Pipe (Tail) System
Cleaner (Air) System
Piping (Cooler/Fuel) System
Tank (Fuel) System
Stay (Tank) System
Lever (Throttle) System
Pedal (Accelerator) System (Except H Type)
Pedal (HST) System (H Type)
Damper (Input) System
Pedal (Clutch) System (Except H Type)
Case (Transmission) System (H Type)
Case (Transmission) System (Except H Type)
HST System (H Type)
Gear (H/L) System (Except H Type)
Pump (Gear) System (H Type)
Gear (PTO) System
Case (Transmission/Mid) System (H Type)
Gear (Main) System
Gear (Reverse) System (Except H Type)
Gear (Sub) System (H Type)
Gear (Sub) System
Gear (4Wd) System
Gear (PTO) System
PTO (Mid) System
Case (Transmission/Rear) System
Fork (Shift/Change/Main) System
Fork (Shift/PTO) System
Lever (Reverse/Guide) System
Lever (Main) System (Except H Type)
Lever (Sub) System
Lever (PTO) System
Pinion (Drive) System
Case (Differential/Rear) System
Housing (Axle) System
Pedal (Diff-Lock) System
Brake System
Pedal (Brake) System (Except H Type)
Pedal (Brake) System (H Type)
Lever (Brake/Parking) System
Wheel (Steering) System
Column (Steering) System
Steering (Power) System
Bracket (Axle) System
Shaft (Drive) System
Case (Bevel) System
Housing (Axle) System
Case (Gear/Final) System
Rod (Tie) System
Case (Cylinder) System
Control (Position) System
Piping (Main) System
Piping (Sub) System
Joystick System
Valve (Remote/2R) System
Link (3P) System (H Type)
Rod (Lift) System (H Type)
Rod (Lift) System (Except H Type)
Bracket (Link/Top) System
Draw Bar System
Hood (Long) System
Grille System
Cover (Side) System
Guide (Lever) System
Guide (Rh) System (H Type)
Guide (Lever) System (Except H Type)
Mount System
Floor (Front) System
Elc (Front) System
Panel System
Elc (Cabin) System
Control System
Roof (Cabin) System
Fender (Over) System (Except D Type)
Glass (Front/Cabin) System
Glass (Front/Cabin/Repair) System
Frame (Cabin) System
Door (Cabin) System
Glass (Side/Cabin) System
Glass (Rear/Cabin) System
Interior (Cabin) System
Air Conditioner
Ornament
Label

-OPTIONAL REPAIR PARTS
Valve (Check/Relief) System
Cover (Iq Shift) System
Wheel
Plate (Bumper) System (Option)
Wheel (Front/95 16) Assy (Option)
Cylinder (Sub/Lh) Set (H Type) (Option)
Plug (M18) Assy (H Type) (Option)
Lamp (Head) Assy
Harness (Seat/Grammer) Assy (Option)
Cover Assy (Repair)
Dial (Lift Positioning) Set (Except H Type)
Hook Set (Option)
Weight (15) Set (Option)

-COMPONENT PARTS
Component Parts
WIRING DIAGRAM

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
