Iseki TG6620H TG6670H Parts Catalog Tractor 1817-097-100-00 manuals in PDF

Factory Parts Catalog For Iseki Tractor. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 223
Number: 1817-097-100-00 (may 2015)
Searchable
Parts List
Parts Exploded View
Wiring Diagrams

Models

Iseki Tractor
TG6620H
TG6670H

Contents

-TG6620H, TG6670H-ENGINE(N4LDI-TA4501, JA4502)
Cylinder Block/Oil Pan
Crankshaft/Piston
Flywheel/Rear Plate/Starter
Cylinder Head/Rocker Arm
Head Cover
Exhaust Manifold/Turbo Charger/OMS
Oil Pump/Water Pump/Thermostat Case/Alternator
Timing Gear Case/Camshaft
Injector/HP Pump/Fuel Filter
EGR
DOC
Balancer
Harness Wire
Accessory Parts
-CHASSIS
Engine (Parts) System
Radiator System
Pipe (Tall) System
Cleaner (Air) System
Intercooler System
Tank (Fuel) System
Bracket (Filter) System
Piping (Cooler/Fuel) System
Accelerator System
Pedal (HST) System
Damper (Input) System
Case (Transmission) System
HST System
Pump (Gear) System
Gear (PTO) System
Case (Transmission) System
Gear (Main) System
Gear (Sub) System
Gear (4Wd) System
Gear (PTO) System
PTO (Mid) System
Case (Transmission) System
Fork (Shift/Sub) System
Shift (4Wd) System
Fork (Shift) System
Lever (Reverse) System
Lever (Shift/Sub) System
Lever (4Wd) System
Lever (PTO) System
Pinion (Drive) System
Case (Differential/Rear) System
Housing (Axle) System
Clutch (Difflock) System
Brake System
Pedal (Brake) System
Lever (Brake/Parking) System
Wheel (Steering) System
Column (Steering) System
Steering (Power) System
Bracket (Axle) System
Shaft (Drive) System
Case (Bevel) System
Housing (Axle) System
Case
Rod (Tie) System
Case (Cylinder) System (L/2)(2/2)
Control (Position) System (L/2)(2/2)
Piping (Main) System (L/2)(2/2)
Piping (Sub) System (L/3)-(3/3)
Joystick Valve System
Valve (Remote/2) Set (L/2)(2/2)
Link (3P) System
Rod (Lift) System
Bracket (Link/Top) System
Draw Bar System
Hood System
Grille System
Cover (Side) System
Guide System
Mount System
Floor (Front) System
Floor (Rear) System
ELC (Front) System
ELC (Main) System (L/2)(2/2)
ELC (Floor) System (L/2)(2/2)
Panel System
ELC (Cabin) System
Control System (L/2)(2/2)
Harness (Socket/7P) System
Roof System
Flame System
Fender (Over) System (Except D Type)
Glass (Front) System
Door System
Lock (Door) System
Glass (Side) System
Glass (Rear) System
Interior System

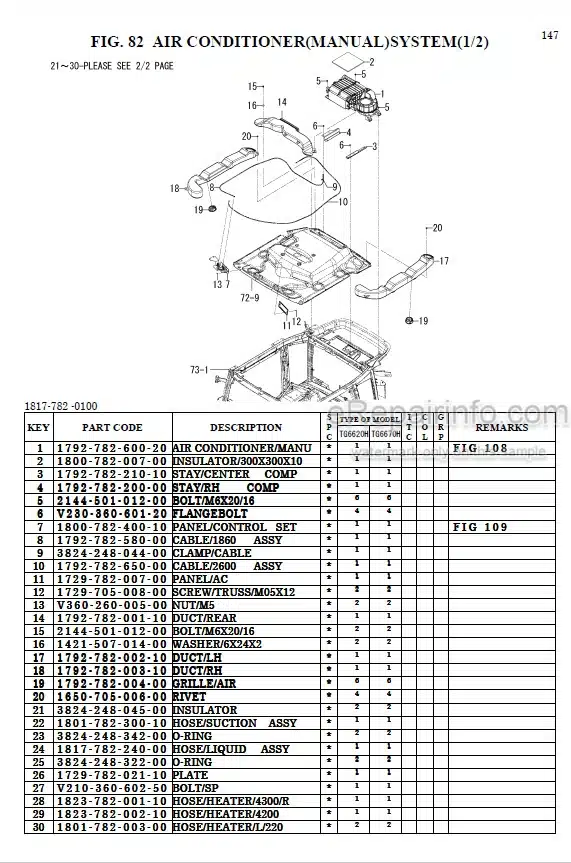

Air Conditioner
Ornament
Label
Tools
-OPTIONAL PARTS
Wheel Assy
Wheel
Bumper Hitch System
Wheel (Front/16Xw8) Assy (Option)
Plug (M18) Assy (Option)
ELC (Cabin) System (Option)
Hook, Mirror (Cabin) Set (Option)
Visor (Sun) Assy (Option)
Weight (15) Set (Option)
-COMPONENT PARTS
Component Parts

WIRING DIAGRAMS

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
