Iseki TH4295 TH4335 Parts Catalog Tractor manuals in PDF

Factory Parts Catalog For Iseki Tractor. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Quantity of Catalogs: 2
Pages: 417; 417
Number: 1772-097-100-00; 1772-097-100-10
Searchable
Parts List

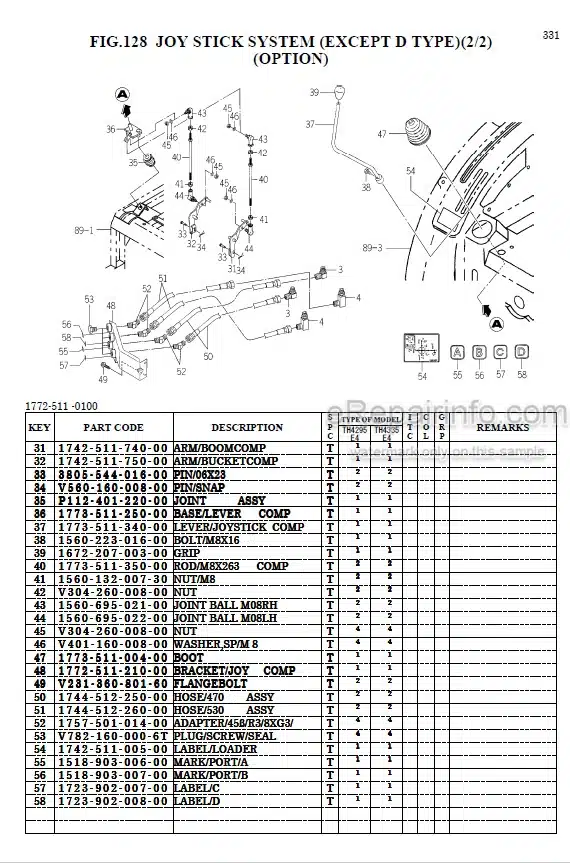

Parts Exploded View
Wiring Diagrams

Models

Iseki Tractor
TH4295
TH4335

Contents

-TH4295(K-TYPE)-ENGINE(E3CDWB01)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts
-TH4295(EXCEPT K-TYPE)-ENGINE(E3CDWB03)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts
-TH4335(K-TYPE)-ENGINE(E3CDWB)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts
-TH4335(EXCEPT K-TYPE)-ENGINE(E3CDWB02)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts
-CHASSIS
Radiator System
Muffler System
Cleaner (Air) System
Fuel System
Throttle System
Clutch (Main) System
Pedal (Clutch) System
Case (Transmission/Front) System
Gear (Input) System
Gear (PTO) System (K Type)
Gear (Main) System
Gear (Sub) System
Gear (4Wd) System
Gear (PTO) System
Cover (Mid PTO) System
Mid PTO System (M Type)
Cover (Creep) System (Except S Type)
Case (Transmission/Rear) System
Fork (Shift/Reverse) System
Fork (Shift/Main) System
Fork (Shift/Sub) System
Arm (Shift/4Wd) System
Fork (Shift/PTO) System
Lever (Reverse) System
Lever (Main) System
Lever (Sub) System
Lever (4Wd) System
Lever (PTO) System
Pinion (Drive) System
Differential Gear System
Housing (Axle) System
Shaft (Wheel/Rear) System
Diff-Lock System
Brake System
Pedal (Brake) System
Brake (Parking) System
Wheel (Steering) System
Column (Steering) System
Steering (Power) System
Bracket (Axle) System
Bumper Hitch System
Front Hitch (Bumper) System
Front Axle Set
Shaft (Drive) System
Tie Rod System
Stopper (Housing) System (M Type)
Cylinder Case System
Mechanical Link (Position) System
Mechanical Link (Draft) System
Cover (Valve) System
Hyd System (Main) (Except K Type)(1/2)(2/2)
Cover (Relief Metal) System
Hyd System (Main) (K Type)(1/2)(2/2)
Cover (Fender) System
Valve (Remote/1R) System
Valve (Remote/2R) System
3P Link System
Lift Rod System
Top Link Bracket System
Shield Cover System (A Type)
Hitch (Draw Bar) System (R Type)
Hood System
Grille System
Cover (Side) System
Mirror System
Mount System
Dashboard System
Floor (Rear) System
Elc System (Front)
Elc System (Main)
Elc System (Rear)
Meter Panel System
Control (PTO) System
7P Socket System
Frame (Rear) System
Frame (Mid) System (A Type)
Ornament
Label
-OPTIONAL PARTS
Gear (Creep) System (S Type)
Rear Wheel System
Front Wheel System
Joy Stick System
Valve (Remote/Plus) System
Hitch (Trailer) System (Option)
-COMPONENT PARTS
Component Parts
WIRING DIAGRAMS

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
