Iseki TH4295 TH4335 TH4365 Parts Catalog Tractor 1772-097-100-3E manuals in PDF

Factory Parts Catalog For Iseki Tractor. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Pages: 723
Number: 1772-097-100-3E
Searchable
Parts List

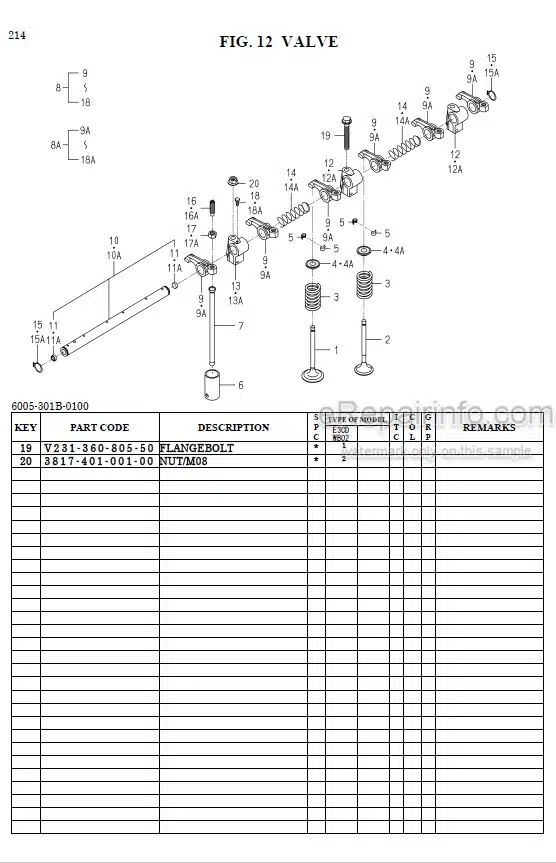

Parts Exploded View

Models

Iseki Tractor
TH4295
TH4335

Contents

-TH4365-ENGINE (E3CG-WB08)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts

-TH4335, TH4295 (H-TYPE) – ENGINE (E3CD-WB25, WB27)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts

-TH4335 (K-TYPE) – ENGINE (E3CD-WB)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts

-TH4295 (K-TYPE) – ENGINE (E3CD-WB01)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts

-TH4335 (EXCEPT H, K-TYPE) – ENGINE (E3CD-WB02)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Electric
Repair Parts (Option)
Component Parts

-TH4295 (EXCEPT H, K-TYPE) – ENGINE (E3CD-WB03)
Short Block Engine Assy (Option)
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts (Option)
Component Parts

-CHASSIS
Radiator System (
Muffler System (
Cleaner (Air) System
Fuel System
Throttle System
Clutch (Main) System
Pedal (Clutch) System
Case (Transmission/Front) System
Gear (Input) System
Unit System (H Type)
Gear (PTO) System
Case (Transmission/M3D) System
Gear (Main) System
Gear (Sub) System
Cover (Creep) System (
Gear (4Wd) System
Gear (PTO) System
PTO (Mid) System
Cover
PTO (Mid) System
Case (Transmission/Rear) System
Stopper (Stay/Shift) System
Fork (Shift/Reverse) System
Metal (Trunnion) System (H Type)
Shift (Main) System
Shift (Sub) System
Arm (Shift/4Wd) System
Shift (PTO) System
Lever (Reverse) System (S Type)
Lever (Main) System (Except H Type)
Lever (Sub) System
Lever (4Wd) System
Lever (PTO) System (Except C Type)
Link (PTO) System (C Type)
Pedal System (H Type)
Auto Cruise System
Cable (Pedal/HST) System
Pinion (Drive/Rear) System
Case (Differential Gear/Rear) System
Housing (Axle/Rear) System
Shaft (Wheel/Rear) System
Shaft (Wheel/Rear) System
Pedal (Clutch/Differential Gear) System
Clutch (Differential Gear) System
Brake System
Pedal (Brake) System
Lever (Brake/Parking) System
Wheel (Steering) System
Cover (Column/Steering) System
Controller (Steering) System
Bracket (Axle) System
Plate (Bumper) System
Hitch (Front) System
Axle (Front) System
Shaft (Drive/Front) System
Case (Differential Gear/Front) System
Metal (Pivot) System
Housing (Axle/Front) System
Case (Gear/Final) System
Rod (Tie) System
Stopper (Housing) System
Cover (Cylinder) System
Case (Cylinder) System
Lever (Position) System
Lever (Draft) System (A Type)
Cover (Case/Cylinder/Side) System
Piping (Main) System
Cover (Valve/Relief) System
Piping (Main) System
Piping (Sub) System
Joystick System
Cap (Fender) System
Valve (Rem0Te/1R) System
Valve (Remote/2R) System
Link (3P) System
Rod (Lift) System
Bracket (Link/Top) System
Cover (Shaft/PTO) System (A Type)
Bracket (Link/Top) System (D Type)
Draw Bar System
Hood System
Grille System
Cover (Side) System
Seat System
Mirror System
Mount (Frame) System
Panel (Dash) System
Floor (Rear) System
Plate (Registration) System
Elc (Front) System
Harness (Alternator) System
Elc (Front) System
Elc (Main) System
Elc (Rear) System
Panel (Instrument) System
Control (PTO) System
Connector (Control/PTO) System
Harness (S0Cket/7P) System
Frame (Rear/Under) System
Frame (Rear/Upper) System
Frame (Mid) System (A Type)
Frame (Rear

/Upper) System (Mr Type)
Ornament
Label
-OPTIONAL PARTS
Gear (Creep) Set
PTO (Mid) Set
Wheel System
Plug (M1S) Assy
Joystick (E4) Set
Valve (Remote/Lst) Set
Valve (Remote/2Nd) Set
Valve (Remote/2R) Set
Bracket (Link/Mower) Set
Lamp (Head) Assy
Weight (15) Set (Except H Type) (Option)
-COMPONENT PARTS
Component Parts
