Iseki TM3200 TM3240 Parts Catalog Tractor manuals in PDF

Factory Parts Catalog For Iseki Tractor. Detailed Illustrations and Parts Lists.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 370; 486
Number: 1750-097-100-00; 1750-097-100-10
Searchable
Parts List

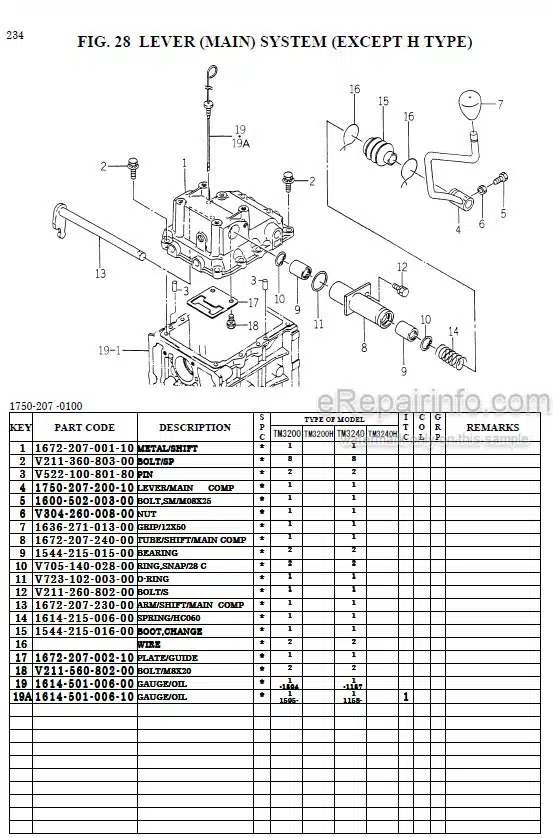

Parts Exploded View
Wiring Diagrams

Iseki Tractor
TM3200
TM3240

Contents

-TM3200-ENGINE(E3112B13)
Short Block Engiassy
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts(Option)
Component Parts
-TM3200H-ENGINE(E3112B14)
Short Block Engiassy
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts(Option)
Component Parts
-TM3240-ENGINE(E3112B15)
Short Block Engiassy
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts(Option)
Component Parts
-TM3240H-ENGINE(E3112B16)
Short Block Engiassy
Cylinder Head
Cylinder Head Cover
Inlet Manifold
Exhaust Manifold
Cylinder Block
Cylinder Block
Bearing/Under Size (Option)
Oil Pan
Rear Plate
Timing Gear Case
Hanger
Valve
Cam Shaft
Piston
Piston/Over Size (Option)
Crank Shaft
Oil Pump
Water Pump
Cooling Fan
Injection Nozzle
Injection Pump
Fuel Pipe
Adapter
Electric
Repair Parts(Option)
Component Parts
-CHASSIS
Radiator System
Muffler System
Air Cleaner System
Filter System
Fuel Tank System
Battery System
Accelerator Pedal System
Accelerator System
Main Clutch System (Except H Type)
Clutch Housing System (H Type)
Pedal (Clutch) System
Input Shaft System
Case (Transmission) System
HST System (H Type)
Gear (Input) System
Gear (Drive) System
Pinion (Drive) System
Gear (Reverse) System
Gear (4Wd) System
Lever (Main) System (Except H Type)
Plug System (Except H Type)
Lever (Sub) System
Change (4Wd) System
Change (Sub) System
Change (Main/Sub) System
Gear (PTO) System
Shaft (PTO) System
Lever (PTO) System
Shield Cover System
Mid PTO System
Lever (Mid PTO) System
Link (HST) System
Pedal (HST) System
Cruise System
Shaft Cover System
Piping System
Diff Case System
Rear Axle Housing System
Shaft (Wheel) System
Pedal (Diff-Lock) System
Lever (Diff-Lock) System (H Type)
Brake System
Pedal (Brake) System
Wheel (Steering) System
Steering System
Cylinder System
Piping System
Bracket (Axle) System
Hitch (Front) System
Shaft (Drive) System
Pinion (Drive) System
Housing (Axle) System
Gear (Final) System
Final Drive Shaft System
Rod (Tie) System
Cylinder Case System
Arm (Lift) System
Cylinder System
Control System
Cover (Valve) System
Piping (Main) System (Except H Type)
Piping System (H Type)
Link (3P) System
Hitch (Draw Bar) System
Hood System
Grille System
Steering Cover System
Seal (Noise) System
Fender System
Seat Base System
Seat System
Frame System
Step System
Number Plate System
Head Lamp System
Lamp System
Lamp Bracket System (Except R Type)
Panel System
Switch System
Harness System
ROPS System (R Type)
Ornament
Label
Tools
-OPTIONAL PARTS
Mid PTO Set
Rear Wheel System
Hitch (Front) Set
Front Wheel System
Valve (Aux/Sol) Set (Option)
Hitch (Crevice) Set (Option)
Hitch (Draw Bar) Set
ROPS Set (Except R Type-Option)
Weight (Bumper) System (Option)
-COMPONENT PARTS
Component Parts
WIRING DIAGRAM

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
