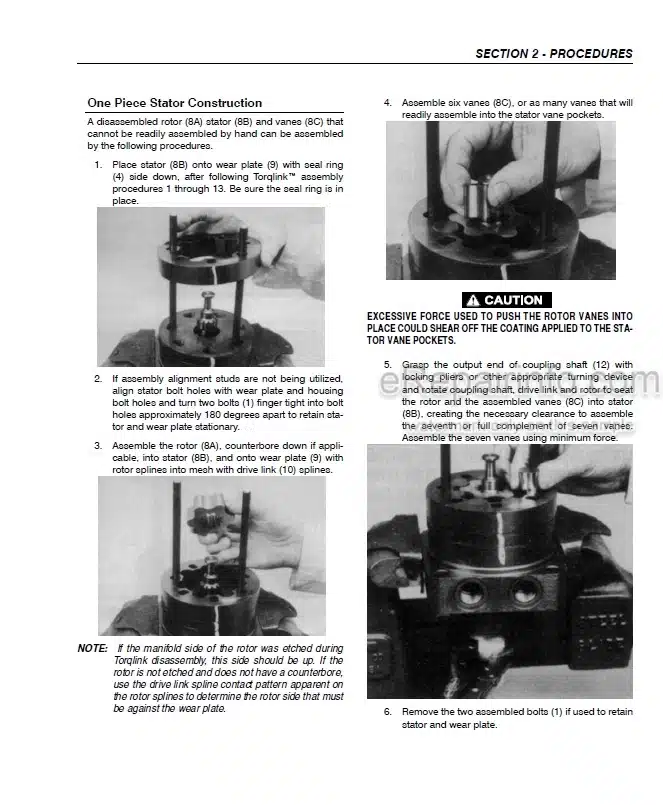

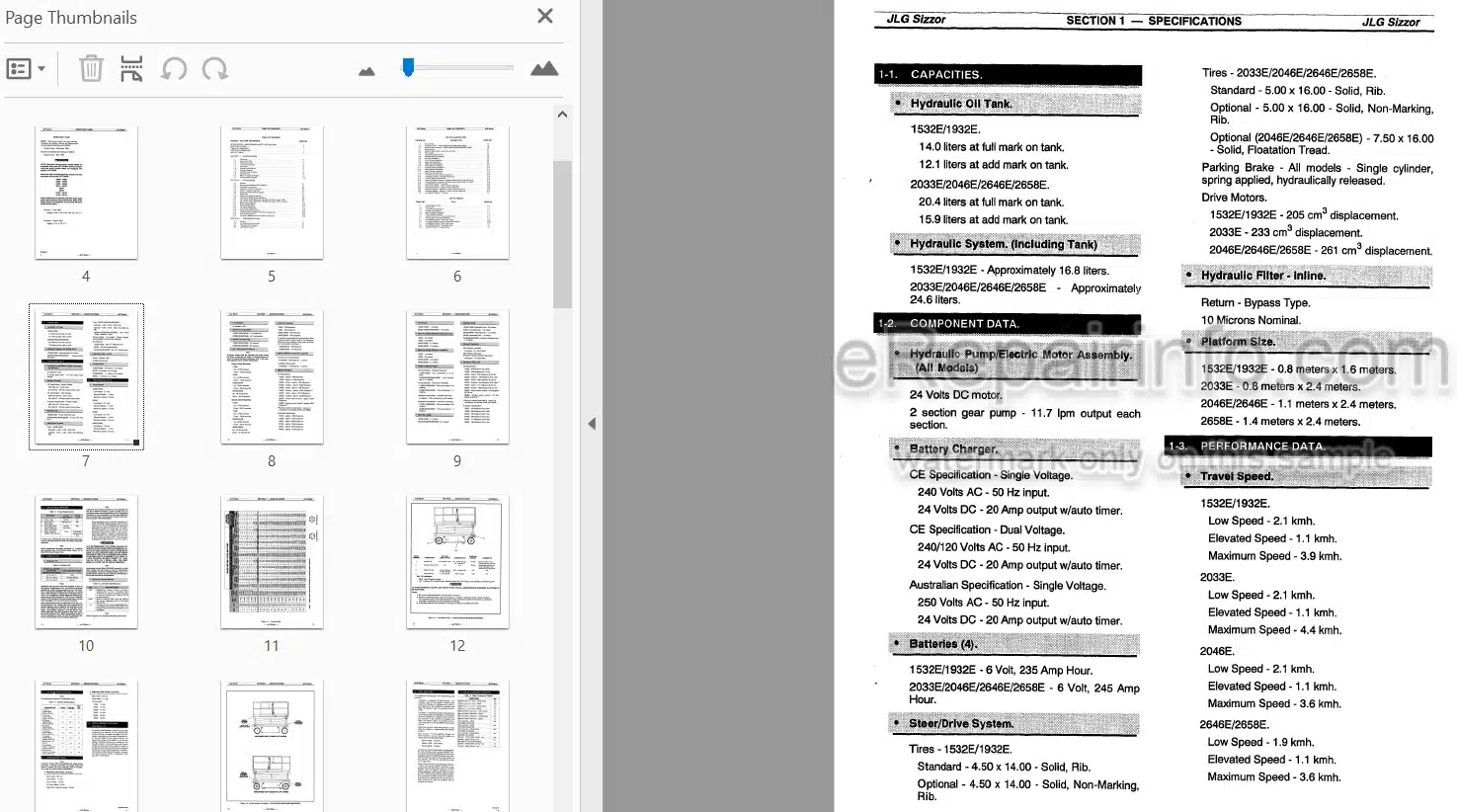

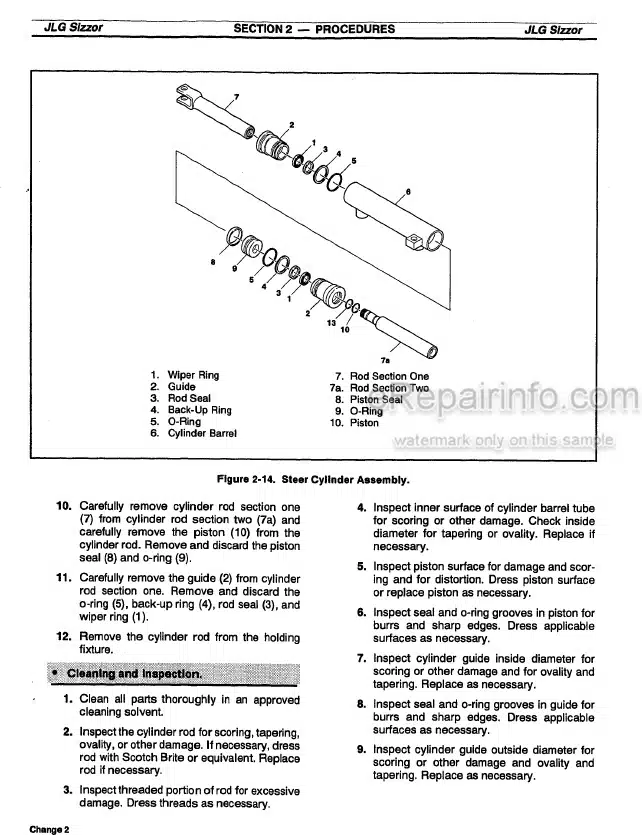

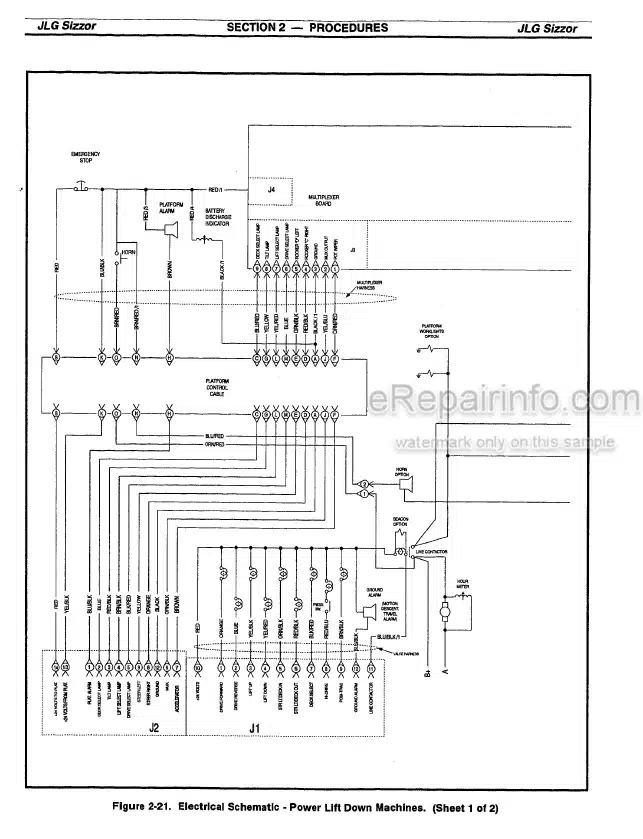

Factory Service And Maintenance Manual For JLG Vertical Mast. Manual Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 58; 56
Issue: march 1998; august 1997
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
JLG Scissor Lift
1532E
1932Е
2033Е
2046Е
2646Е
2658E
Contents
INTRODUCTION – MAINTENANCE SAFETY PRECAUTIONS
EFFECTIVITY PAGE
UST OF ILLUSTRATIONS
UST OF TABLES
-SPECIFICATIONS
Capacities
Component Data
Performance Data
Torque Requirements
Lubrication
Serial Number Locations
Cylinder Specifications
Pressure Settings
Limit Switches
Major Component Weights
Critical Stability Weights
-PROCEDURES
General
Servicing And Maintenance Guidelines
Lubrication Information
Cylinders – Theory Of Operation
Valves – Theory Of Operation
Component Functional Description
Wear Pads
Cylinder Checking Procedures
Lift Cylinder Removal And Installation
Lift Cylinder Repair (Machines Manufactured Before August 1996)
Lift Cylinder Repair (Machines Manufactured August 1996 To Present)
Brake Cylinder Repair
Steer Cylinder Repair
Tilt Switch Adjustment
Limit Switch Adjustment
Pressure Setting Procedures
Pothole Protection System Limit Switch Adjustment
Jlg Smart System
Drive Motor Repair (Eaton)
Preventive Maintenance And Inspection Schedule
-TROUBLESHOOTING
General
Troubleshooting Information
Hydraulic Circuit Checks
Jlg Smart System
