Factory Service And Maintenance Manual For JLG Vertical Mast. Manual Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 62; 62
Issue: may 2002
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
JLG Scissor Lift
1532E3
1932E3
2033E3
2046E3
2646E3
2658E3
Contents
-INTRODUCTION – MAINTENANCE SAFETY PRECAUTIONS
General
Hydraulic System Safety
Maintenance

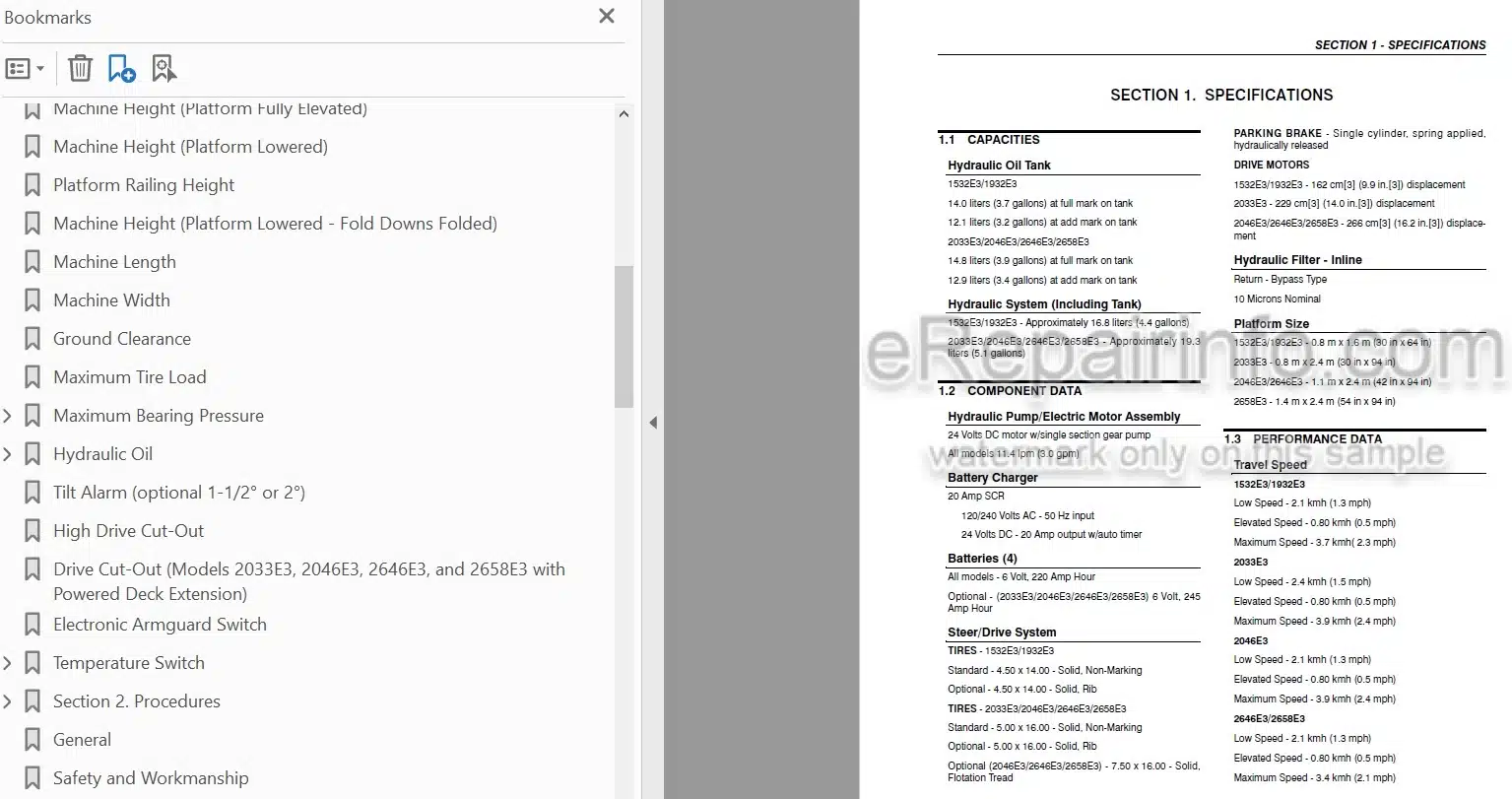

-SPECIFICATIONS
Capacities
Component Data
Performance Data
Torque Requirements
Lubrication
Serial Number Locations
Cylinder Specifications
Pressure Settings
Limit Switches
Critical Stability Weights
-PROCEDURES
General
Servicing and Maintenance Guidelines
Lubrication Information
Cylinders – Theory of Operation
Valves – Theory of Operation
Component Functional Description
Wear Pads
Cylinder Checking Procedures
Arm Assembly Maintenance
Lift Cylinder Removal and Installation
Lift Cylinder Repair
Lift Cylinder Repair
Brake Cylinder Repair
Steer Cylinder Repair
Tilt Switch Adjustment (If Equipped)
Limit Switch Adjustment
Pressure Setting Procedures

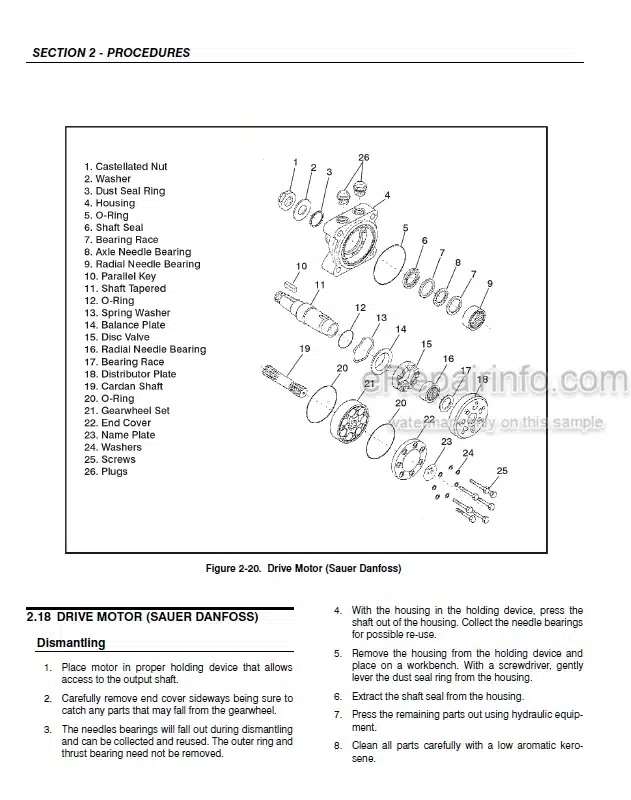

Drive Motor (Sauer Danfoss)
pothole protection system limit switch
JLG SMART System Analyzer Kit Instructions
Machine Personality Settings
Machine Model Default Settings
Machine Configuration Information
Jig Smart System Help Messages and Flash Codes
Analyzer Menu Structure
Preventive Maintenance and Inspection Schedule
-TROUBLESHOOTING
General
Troubleshooting Information
Hydraulic Circuit Checks

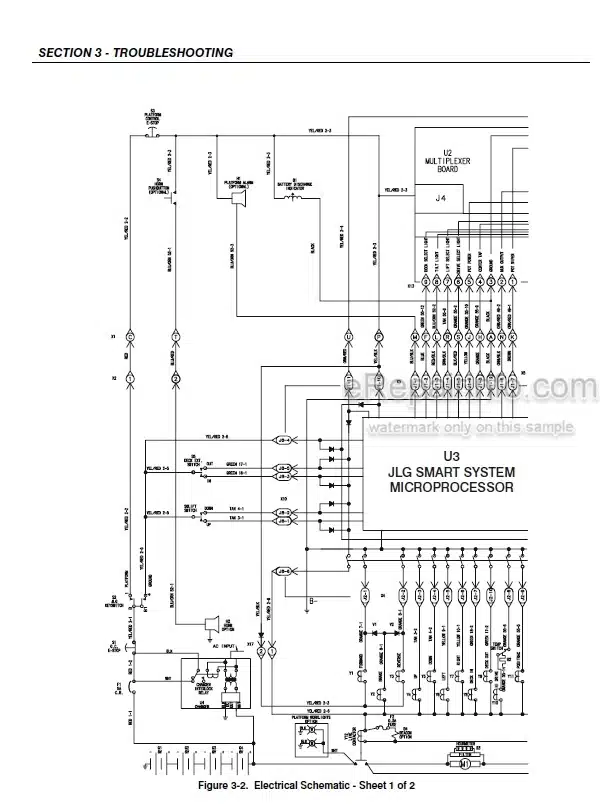

JLG SMART System
