JLG 15AMI 19AMI Illustrated Parts Manual Vertical Mast 3120759 manuals in PDF

$14.95

Factory Illustrated Parts Manual For JLG Vertical Mast. Detailed Illustrations and Parts Lists.

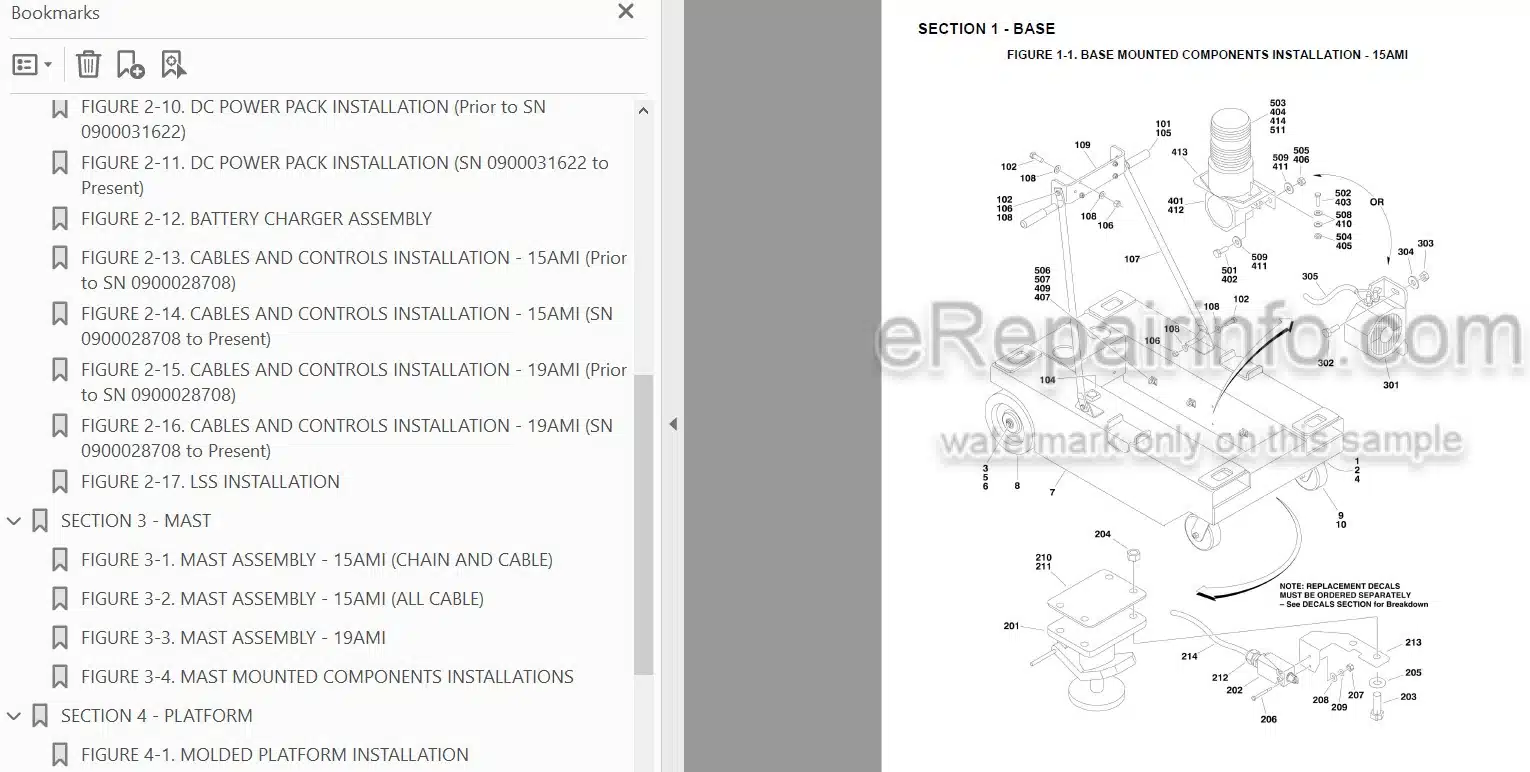

Photo 7 - JLG 15AMI 19AMI Illustrated Parts Manual Vertical Mast 3120759
JLG 15AMI 19AMI Illustrated Parts Manual Vertical Mast 3120759 $14.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Illustrated Parts Manual For JLG Vertical Mast. Detailed Illustrations And Parts Lists.

Format: PDF
Language: English
Pages: 158
Number: 3120759 (october 2018)
Bookmarks: Yes
Searchable: Yes
Parts List: Yes
Parts Exploded View: Yes
Hydraulic Diagrams: Yes

Model

JLG Vertical Mast
15AMI
19AMI

Contents

-BASE
Base Mounted Components Installation
-CONTROLS
AC Power Components Installation
AC Junction Box Assembly
AC Motor/Pump Assembly
DC Power Components Installation
DC Motor/Pump Assembly
DC Power Pack Installation
Battery Charger Assembly
Cables And Controls Installation
LSS Installation
-MAST
Mast Assembly
Mast Mounted Components Installations
-PLATFORM
Molded Platform Installation
Quick-Change Platform Installation
Optional Platform Component Installations
-CYLINDER
Lift Cylinder Assembly
-HYDRAULIC
Hydraulic Diagram
-ELECTRICAL
Electrical Diagram List
-DECALS
Decal Installation
-RECOMMENDED SERVICE PARTS STOCK
15AMI/19AMI Recommended Service Parts Stock
SPECIAL OPTIONS
PART NUMBER INDEX
