JLG 1930ES 2030ES 2630ES 2646ES 3246ES Illustrated Parts Manual Scissor Lift 3121275 SN4 manuals in PDF

Factory Illustrated Parts Manual For JLG Scissor Lift. Detailed Illustrations And Parts Lists.

Format: PDF
Language: English
Pages: 222
Number: 3121275 (february 2018)
Bookmarks: Yes
Searchable: Yes
Parts List: Yes
Parts Exploded View: Yes

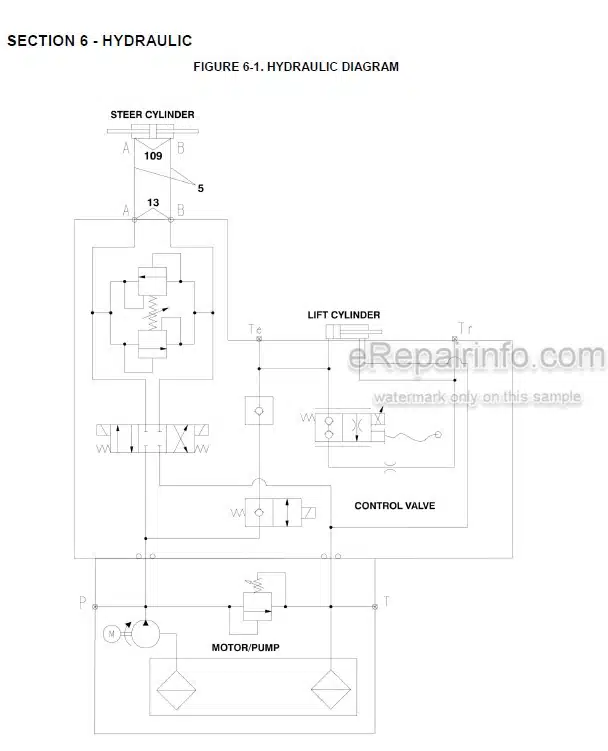

Hydraulic Diagrams: Yes

Model

JLG Scissor Lift
1930ES
SN 0200198014 To 0200239381
SN B200000100 To B200020296

2030ES
2630ES
SN 0200198014 To Present
SN B200000100 To Present

2646ES
3246ES
SN 0200198014 To 0200239381
SN B200000100 To B200020296

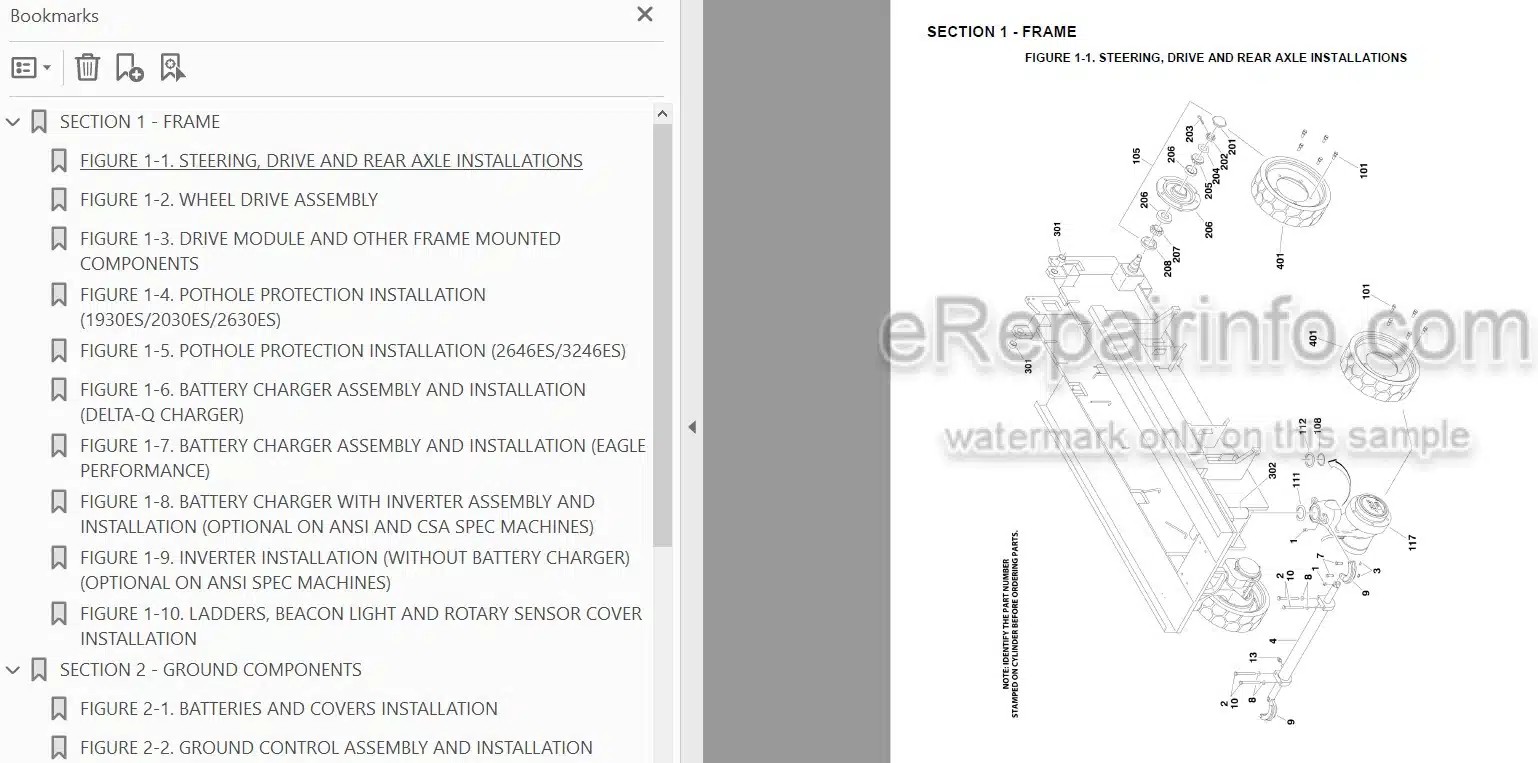

Contents

-FRAME
Steering, Drive And Rear Axle Installations
Wheel Drive Assembly
Drive Module And Other Frame Mounted Components

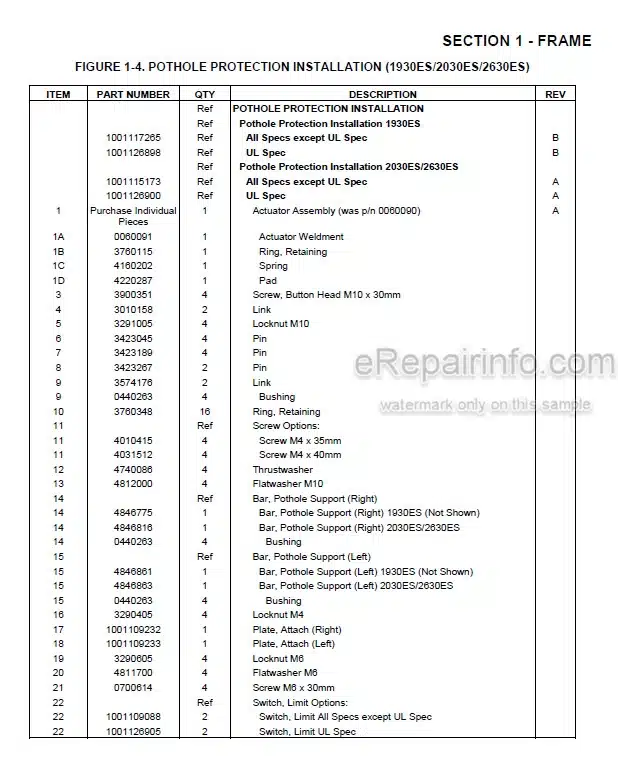

Pothole Protection Installation
Battery Charger Assembly And Installation
Battery Charger With Inverter Assembly And Installation
Inverter Installation (Without Battery Charger)
Ladders, Beacon Light And Rotary Sensor Cover Installation
-GROUND COMPONENTS
Batteries And Covers Installation
Ground Control Assembly And Installation
Brake Disconnect/Release And MDI (Multifunction Digital Indicator) Gauge Installations
-SCISSOR ARMS
Scissor Arms Installation
-PLATFORM
Platform Installation
Rail (Fixed) Installation
Rail (Fold-Down) Installation
Rail Installation
Platform Console Box Installation
Drive/Steer Controller Assembly
Workstation Installations
Package Installation
Panel Installations
Quick Welder Installation
-CYLINDER
Lift Cylinder Assembly
Steer Cylinder Assembly
-HYDRAULIC
Hydraulic Diagram
-ELECTRICAL
Electrical Components Installation
-DECALS
Decal Installation
-RECOMMENDED SERVICE PARTS STOCK
Model ES Standard Parts
Model ES Variable Parts
Model ES Maintenance Kits
SPECIAL OPTIONS
PART NUMBER INDEX

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
