Factory Service And Maintenance Manual For JLG Boom Lift. Manual Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.
Format: PDF
Language: English
Pages: 114
Issue: august 1989

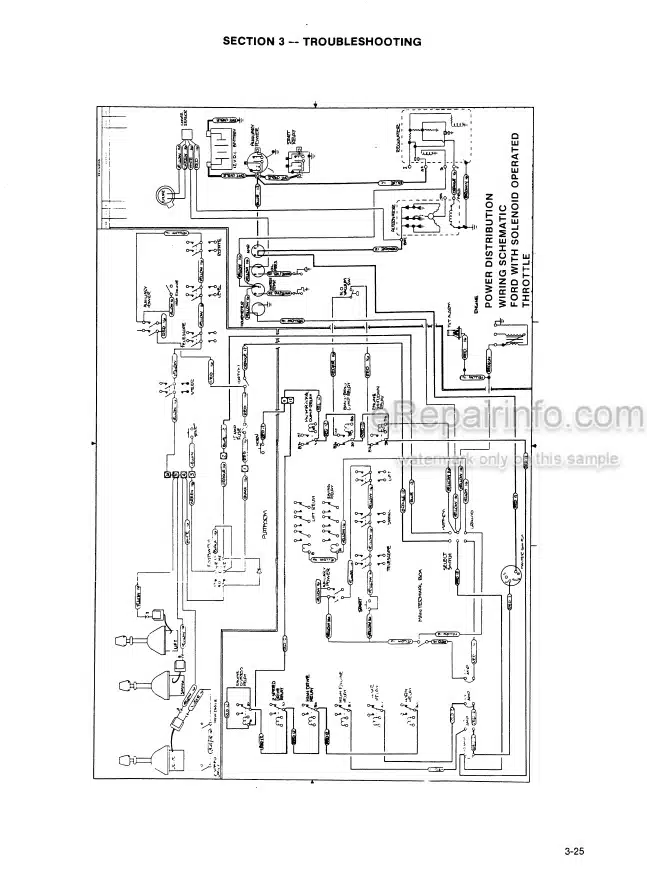

Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Model
JLG Boom Lift
60HT
60HTH
Contents
LIST OF ILLUSTRATIONS AND TABLES

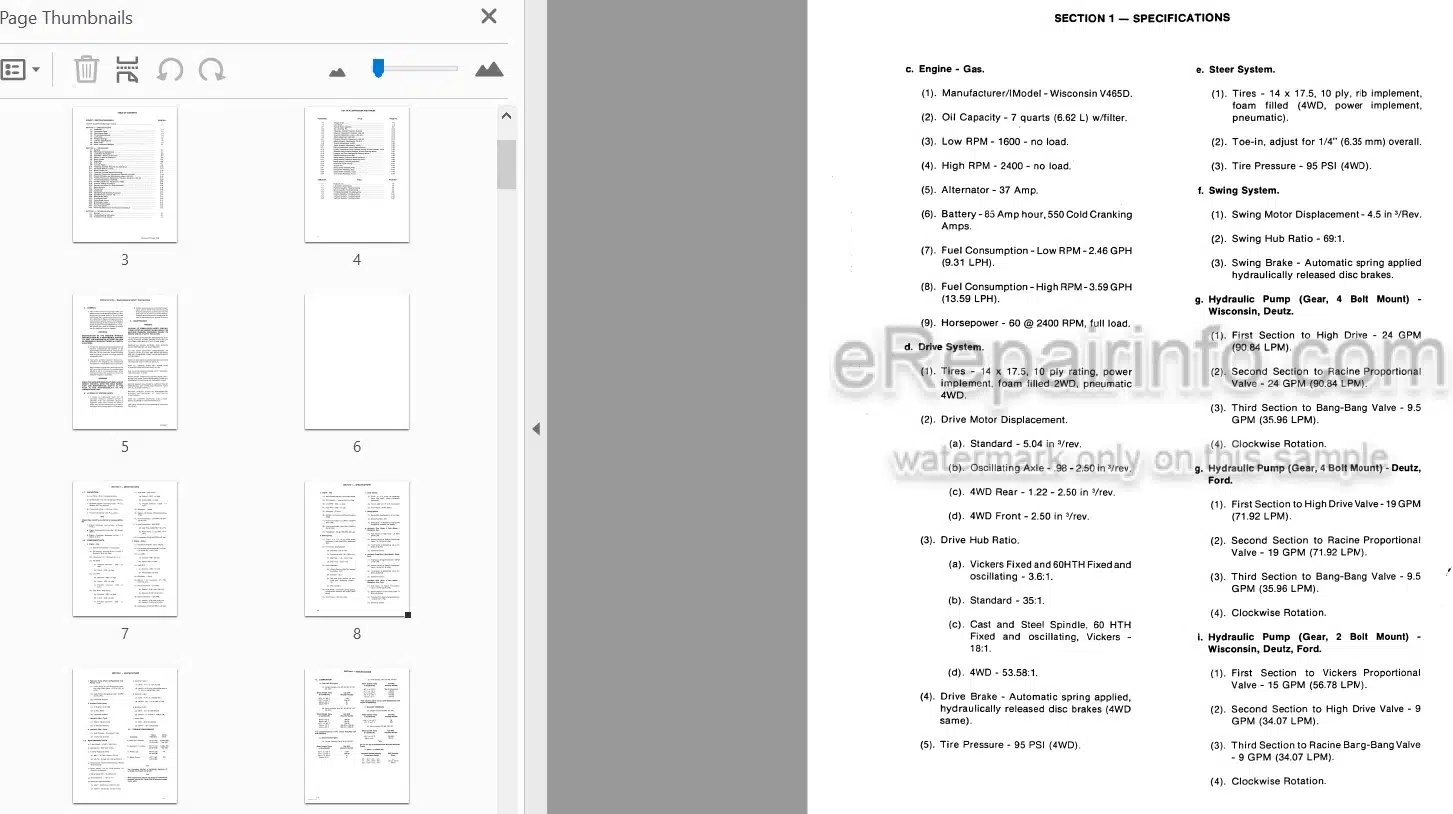

-SPECIFICATIONS
Capacities
Component Data
Performance Data
Torque Requirements
Lubrication
Pressure Settings
Cylinder Specifications
Boom Tape
Major Component Weights
-PROCEDURES
General
Servicing and Maintenance
Lubrication Information
Cylinders – Theory of Operation
Valves – Theory of Operation
Boom Chains
Wear Pads
Drift Test
Cylinder Repair
Telescope Cylinder Removal and Installation
Tilt Alarm Switch Leveling
Slave Cylinder Pin
Telescope Cylinder Eccentric Bushing

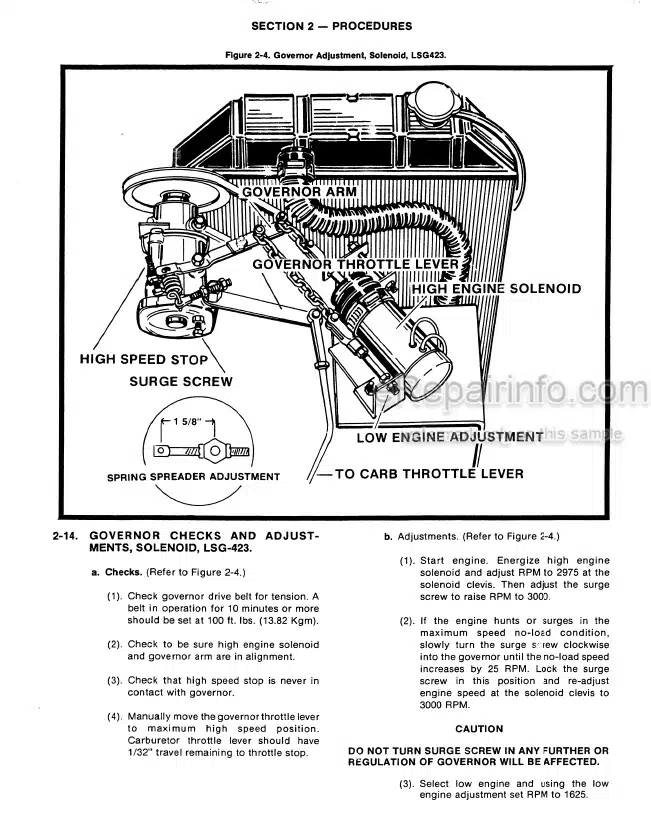

Governor Checks and Adjustments, Solenoid, LSG 423
Governor Checks and Adjustments, Adeco, LSG 423
Throttle Checks and Adjustments, Precision Governor, LSG 423
Throttle Adjustments, F3L912W
Throttle Checks and Adjustments, V465D
Pressure Setting Procedures
Racine Proportional Air Gap Adjustment
Swing Bearing
Torque Hub
Controllers
Oscillating Axle Bleeding Procedure
Oscillating Axle Lockout Test
Swing Brake, Mico
Drive Brake, Mico
Swing Brake, Ausco
Drive Brake, Ausco
Basket Rotator Brake
Dual Fuel System
Preventive Maintenance and Inspection Schedule
-TROUBLESHOOTING
General
Troubleshooting Information
Hydraulic Circuit Checks
