Factory Service And Maintenance Parts Manual For JLG Lighting Tower. Manual Contains Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups. Detailed Illustrations and Parts Lists.
Format: PDF
Language: English
Pages: 62
Number: 1730961 (july 2019)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes
Parts List: Yes
Model
JLG Lighting Tower
6308AN
Contents
-SERVICE AND MAINTENANCE
Safety Precautions
Specifications
Product Description

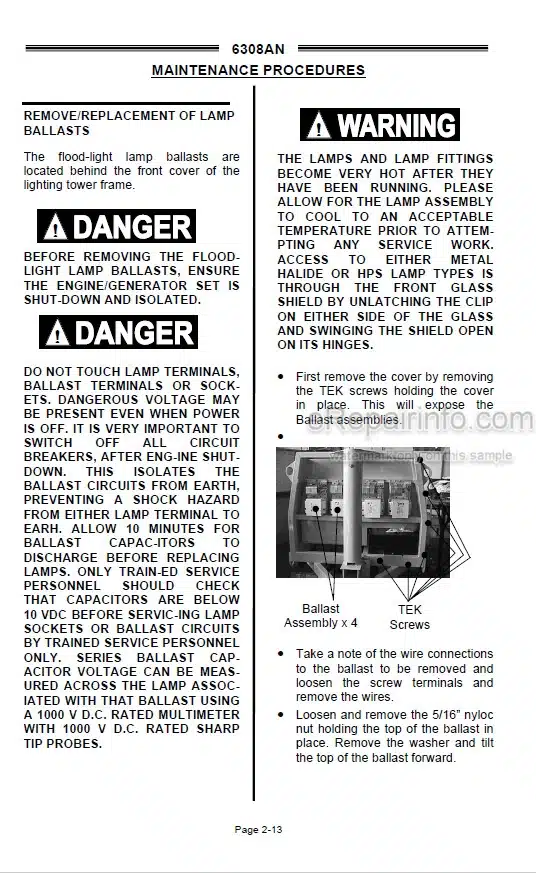

Maintenance Procedures
Fault Diagnosis Chart
Maintenance Schedule
Hydraulic Schematic Diagram
Electrical Schematic Diagram
-ILLUSTRATED PARTS MANUAL
Machine Left Side View
Machine Right Side View
Machine Front View
Machine Rear View
Hydraulic Controls And Pump
Lights Control Box
Engine Control Box
Kubota Engine – Left Side
Kubota Engine – Right Side
Perkins Engine – Left Side
Perkins Engine – Right Side
Alternator, Battery & Battery Isolator Switch

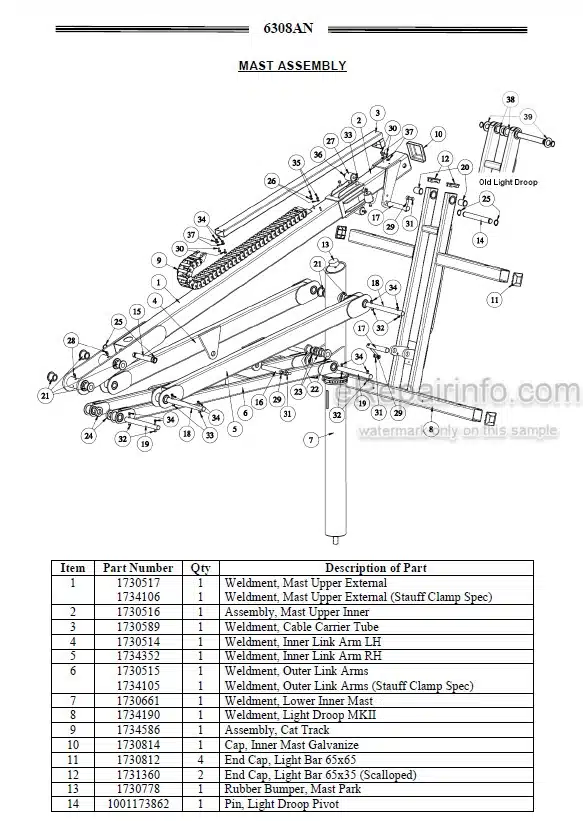

Mast Assembly
Cylinders
Light Bar Assembly
Floodlight Assembly
Other Chassis Components
Radiator Overflow Bottle
