JLG Gradall 534C-9 534C-10 Service Operation Lubrication Manual Telehandler 9114-4437 manuals in PDF

$19.95

Factory Service, Operation, Lubrication Manual For JLG Telehandler. Manual Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Photo 8 - JLG Gradall 534C-9 534C-10 Service Operation Lubrication Manual Telehandler 9114-4437
JLG Gradall 534C-9 534C-10 Service Operation Lubrication Manual Telehandler 9114-4437 $19.95
  • Lifetime Free Access
  • Instant Downloads
  • Support and Instructions with download
Guaranteed Safe Checkout

Factory Service, Operation, Lubrication Manual For JLG Telehandler. Manual Contains Important Information And Instructions For Maintenance Description Of The Functions And Capabilities Of The System. Illustrations, Instructions, Diagrams For Step By Step Remove And Install, Assembly And Disassembly, Service, Inspection, Repair, Troubleshooting, Tune-Ups.

Format: PDF
Language: English
Pages: 260
Number: 9114-4437 (july 2002)
Bookmarks: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

Model

JLG Gradall Telehandler
534C-9
Starting S/N 0444003 thru 0444189
534C-10
Starting S/N 0266107 thru 0266139

Contents

-OPERATION & LUBRICATION
Important Safety Notice & Other Notices
Introduction
Nomenclature
Safety Highlights
Decals Inside Cab
Decals Outside Cab
Optional Equipment Decals
Operator’s Cab
Control & Instrument Identification
Checks & Services Before Starting Engine
Warm Up & Operational Checks
Engine Operation
Brake System
Parking the Handler
Steering System
Drive Train
Boom
Stabilizers
Leveling the Handler
Operating Procedures & Techniques
Attachments

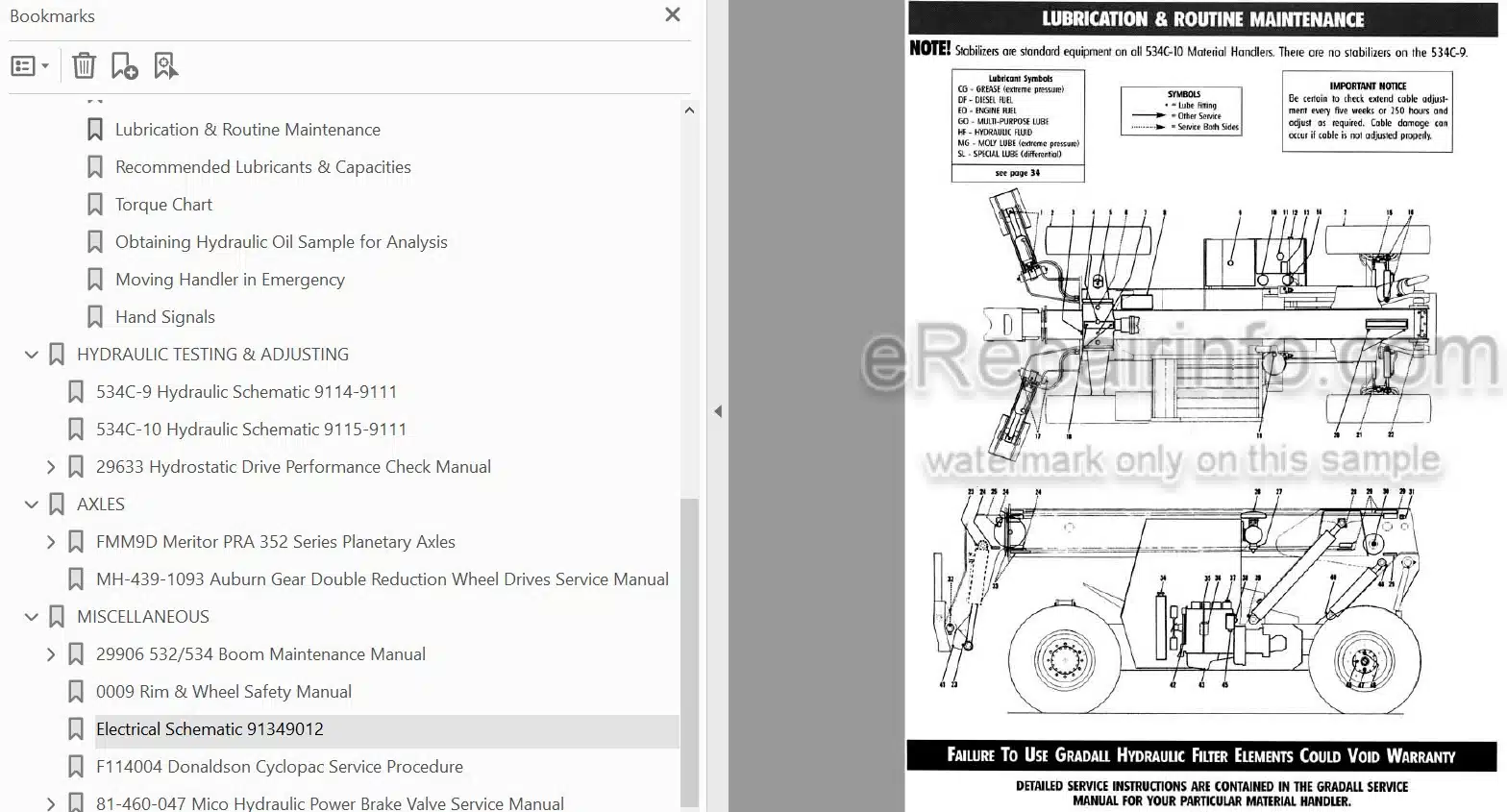

Lubrication & Routine Maintenance
Recommended Lubricants & Capacities
Torque Chart
Obtaining Hydraulic Oil Sample for Analysis
Moving Handler in Emergency
Hand Signals
-HYDRAULIC TESTING & ADJUSTING
Hydraulic Schematic
Hydrostatic Drive Performance Check Manual
-AXLES
Meritor PRA 352 Series Planetary Axles
Auburn Gear Double Reduction Wheel Drives Service Manual
-MISCELLANEOUS
532/534 Boom Maintenance Manual
Rim & Wheel Safety Manual

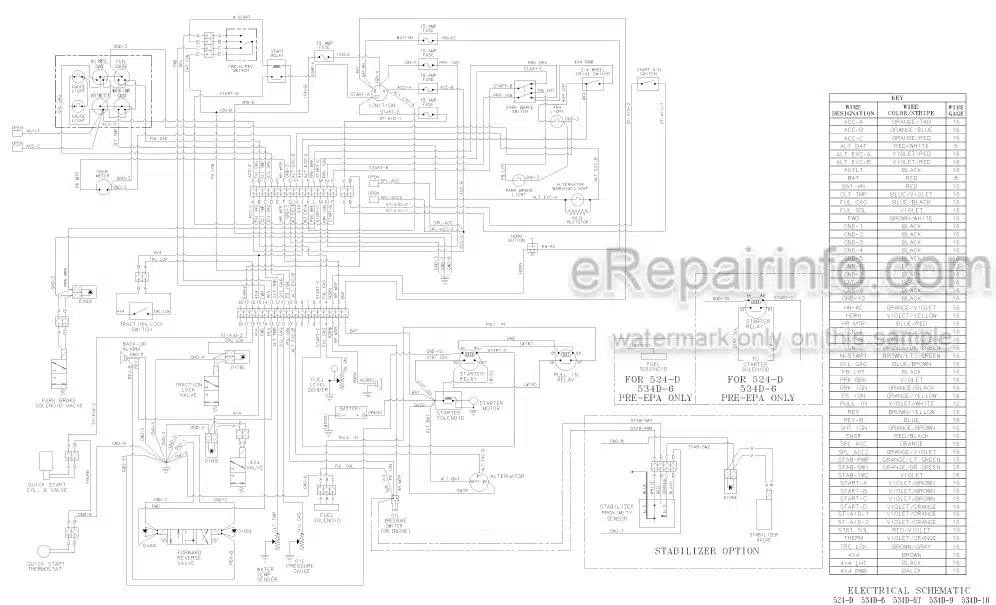

Electrical Schematic 91349012
Donaldson Cyclopac Service Procedure
Mico Hydraulic Power Brake Valve Service Manual

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.
