JLG Grove Toucan 1010 1010I Illustrated Parts Manual Mast Boom Lift manuals in PDF

Factory Spare Parts Manual For JLG Mast Boom Lift. Detailed Illustrations And Parts Lists.

Format: PDF
Language: English
Quantity of Manuals: 2
Pages: 170; 199
Number: MA 0231-02 (february 2000); MA 0231-03 (june 2000)
Bookmarks: Yes
Searchable: Yes
Parts List: Yes

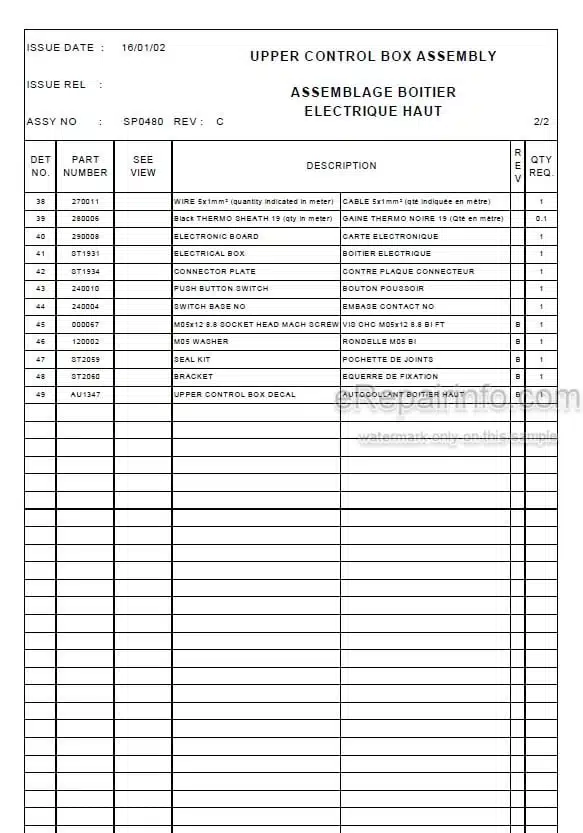

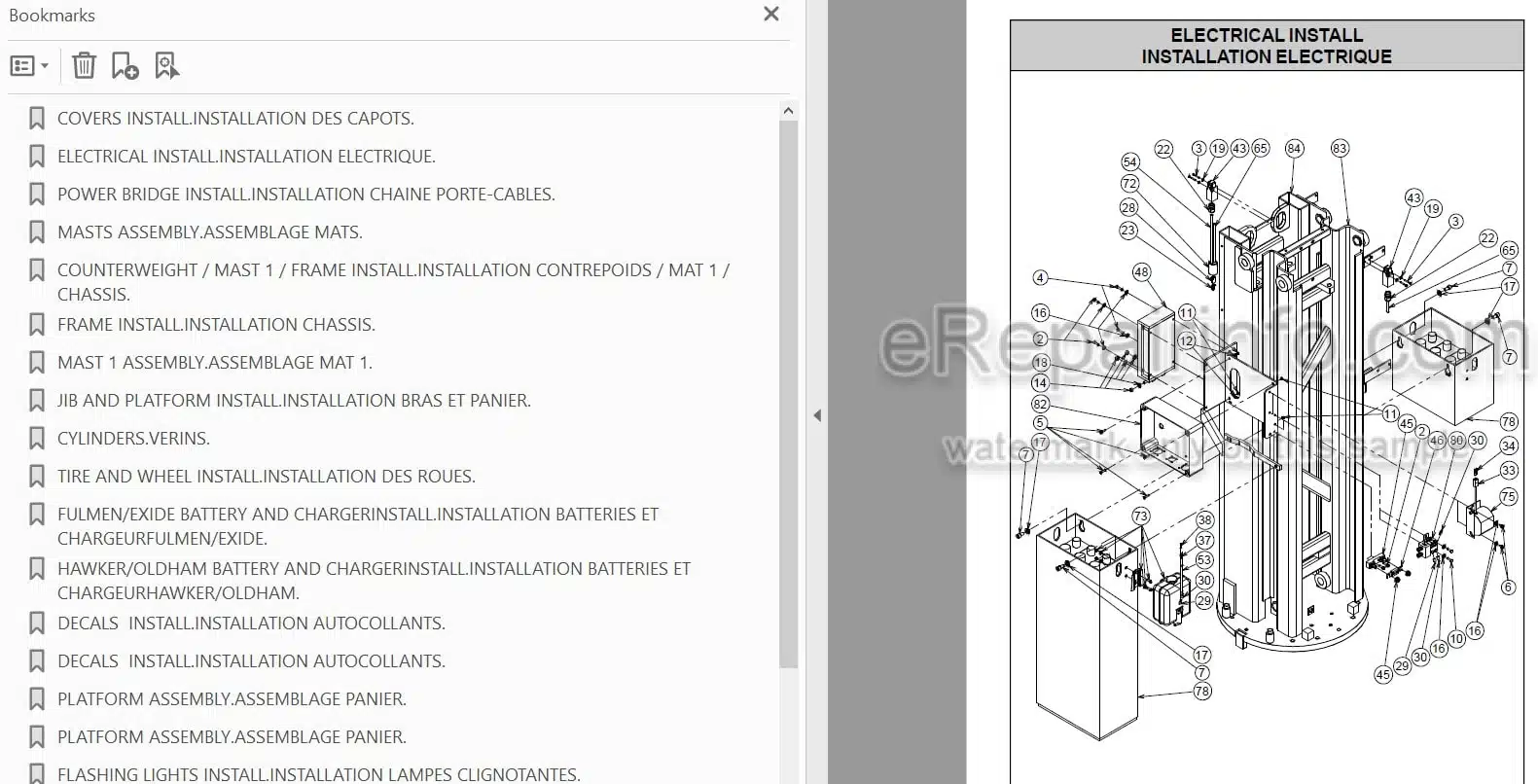

Parts Exploded View: Yes

Model

JLG Grove Mast Boom Lift
Toucan 1010
Toucan 1010I

Contents

COVERS INSTALL
-ELECTRICAL INSTALL
Charger Install
Upper Control Box Assembly
Lower Control Box Assembly
Power Supply Harness Assembly
LCB Chassis Harness Assembly
Chassis Harness Assembly
LCB – UCB Harness Assembly
POWER BRIDGES INSTALL
-MASTS ASSEMBLY
Mast Assembly
COUNTERWEIGHT/MAST1/FRAME ASSY
-FRAME INSTALL
Pressure Filter
Release Valve Assembly
Power Unit Assembly
Reservoir Assembly
Brake Manifold Assembly
Functions Valve Assembly
Difflock Manifold Assembly
-MAST 1 ASSEMBLY
Swinging Gearbox Assembly
-JIB AND PLATFORM INSTALL
Platform With Overload Device
APPENDIX
OPTIONS
CROSS REFERENCE CHART

What you get

You will receive PDF file with high-quality manual on your email immediately after the payment.
