JLG Toucan 1310 Illustrated Parts Manual Mast Boom Lift 31210060 manuals in PDF

Factory Illustrated Parts Manual For JLG Mast Boom Lift. Detailed Illustrations And Parts Lists.

Format: PDF
Language: ENG; FRA
Pages: 236
Number: 31210060 (september 2011)
Bookmarks: Yes
Searchable: Yes
Parts List: Yes
Parts Exploded View: Yes

Model

JLG Mast Boom Lift
Toucan 1310

Contents

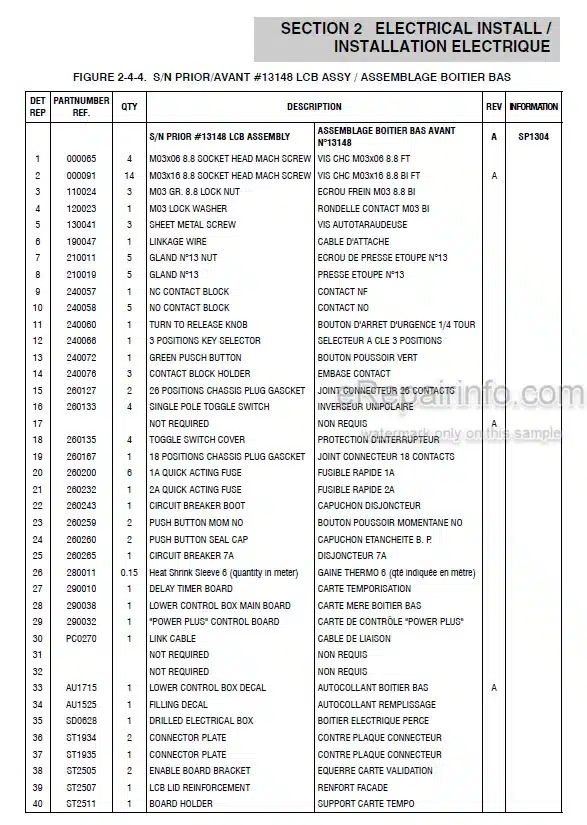

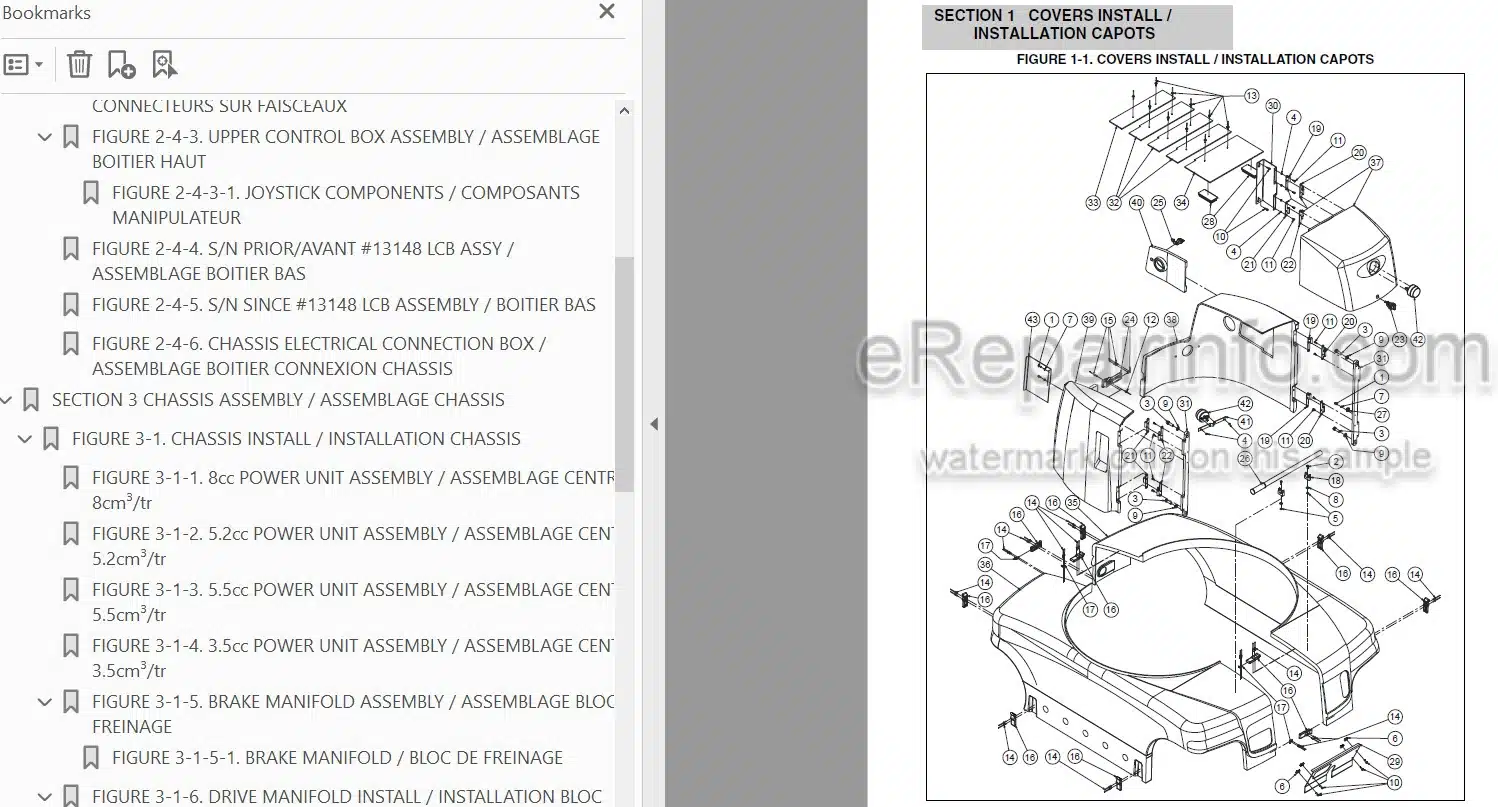

-COVERS INSTALL / INSTALLATION CAPOTS
Covers Install / Installation Capots
-ELECTRICAL INSTALL / INSTALLATION ELECTRIQUE
S/N Prior/Avant #13113 Power Circuit / Circuit De Puissance
S/N Since/Depuis #13113 Power Circuit / Circuit De Puissance
S/N Prior/Avant #13148 Control Circuit / Circuit De Commande
S/N Since/Depuis #13148 Control Circuit / Circuit Commande
-CHASSIS ASSEMBLY / ASSEMBLAGE CHASSIS
Chassis Install / Installation Chassis
-MASTS INSTALL / INSTALLATION MATS
Masts Assembly / Assemblage Mats
-JIB INSTALL/ INSTALLATION BRAS
S/N Prior #13166 Jib Install / Installation Bras
S/N Since/Depuis #13166 Jib Install/ Installation Bras
-PLATFORM INSTALL / INSTALLATION PLATE-FORME
Platform Install / Installation Plate-Forme
-APPENDIX A
Mast Cylinder / Verin De Mat
Master Cylinder / Verin Maitre
Slave Cylinder / Verin Esclave
Assistance Cylinder / Verin D’assistance
Jib Cylinder / Verin Bras
Telescope Cylinder / Verin De Telescope
Steering Cylinder / Verin De Direction
Platform Rotation Cylinder / Verin De Rotation Plate-Forme
-APPENDIX B
Black Wheels Install / Installation Roues Noires
Non Marking Wheels Install / Installation Roues Non Marquantes
-APPENDIX C
780/900Ah Battery Install / Installation Batterie 780/900Ah
-APPENDIX D
80 Hf Zivan Charger Install/ Installation Chargeur Hf 80Azivan
Powerfinn Charger Install/ Installation Chargeur Powerfinn
Charger Connector / Prise Chargeur
-APPENDIX E
Battery Components / Composants Batterie
-APPENDIX F
80A «F7BSTR» Zivan Charger / Chargeur Zivan
80A «F7BTGR» Zivan Gel Charger / Chargeur Gel
-APPENDIX G
Standard Decal Kit / Autocollants Standard
-OPTIONS
115V Platform Socket Install / Installation Prise 115V
230V Platform Socket Install / Installation Prise 230V
24V Platform Socket Install / Installation Prise 24V
Air Line Install / Installation Air Comprime
S/N Prior/Avant #A300013260 Platform With Soft Touch Frame / Plate-Forme Avec Cadre Sensible
S/N Since/Depuis #A300013261 Platform With Soft Touch Frame / Plate-Forme Avec Cadre Sensible
Motion Alarm / Alarme De Mouvements
Working Light Install / Installation Phare De Travail
S/N See View – Platform Rotation / Rotation Plate-Forme
S/N See View – Platform Rotation / Rotation Plate-Forme
RECOMMENDED PART LIST / LISTE DE PIECES RECOMMANDEES
