JLG Toucan 8E 20E Illustrated Parts Manual Mast Boom Lift 31210229 SN2 manuals in PDF

Factory Illustrated Parts Manual For JLG Mast Boom Lift. Detailed Illustrations And Parts Lists.

Format: PDF
Language: ENG; FRA
Pages: 142
Number: 31210229 (september 2019)

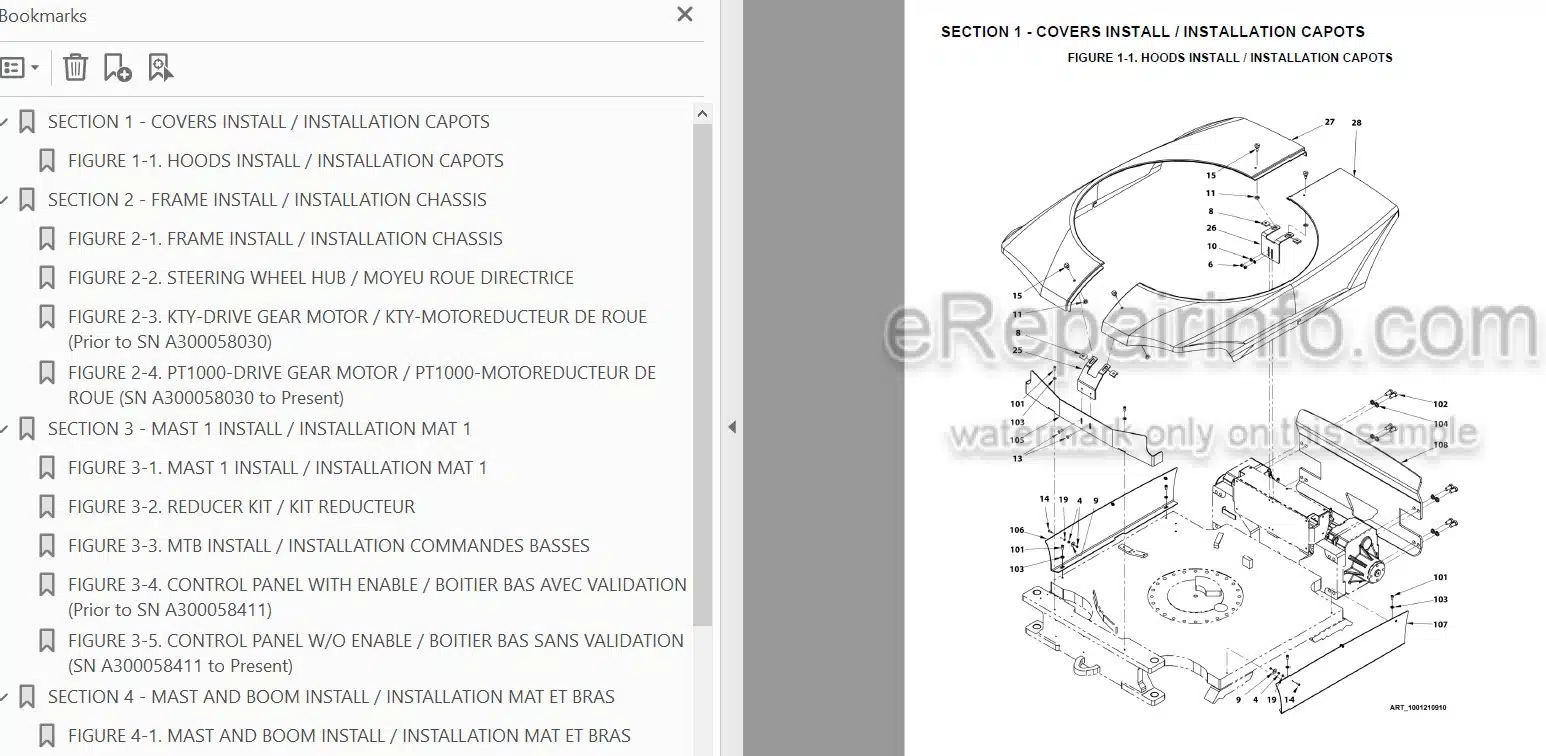

Bookmarks: Yes
Searchable: Yes
Parts List: Yes

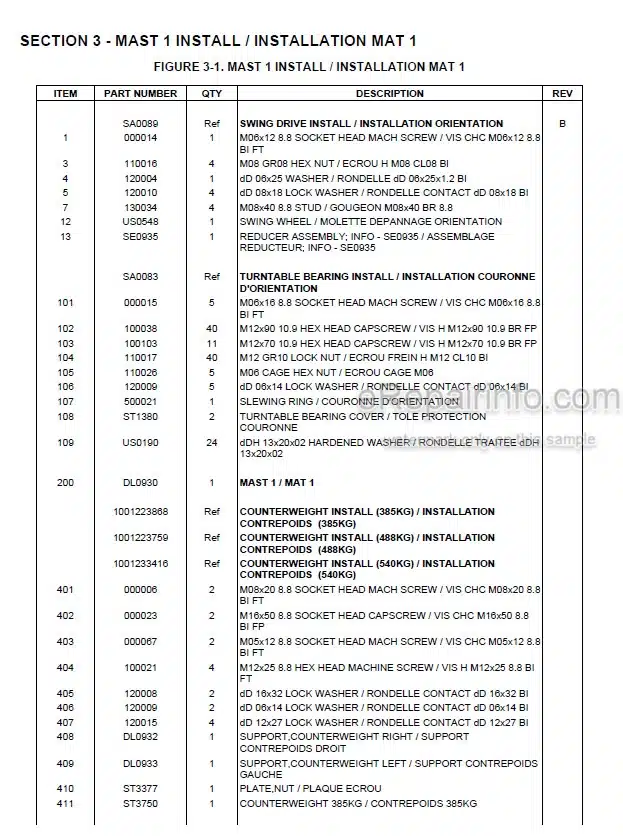

Parts Exploded View: Yes

Model

JLG Mast Boom Lift
Toucan 8E
S/N A300053965 Through/A A300082000 + A300053880
Toucan 20E
S/N A300058359 To Present + A300058268

Contents

-COVERS INSTALL / INSTALLATION CAPOTS
Hoods Install / Installation Capots
-FRAME INSTALL / INSTALLATION CHASSIS
Frame Install / Installation Chassis
Steering Wheel Hub / Moyeu Roue Directrice
KTY-Drive Gear Motor / Kty-Motoreducteur De Roue
PT1000-Drive Gear Motor / Pt10Oo-Motoreducteur De Roue
-MAST 1 INSTALL / INSTALLATION MAT 1
Mast 1 Install / Installation Mat 1
Reducer Kit / Kit Reducteur
Mtb Install / Installation Commandes Basses
Control Panel With Enable / Boitier Bas Avec Validation
Control Panel W/O Enable / Boitier Bas Sans Validation
-MAST AND BOOM INSTALL / INSTALLATION MAT ET BRAS
Mast And Boom Install / Installation Mat Et Bras
Pulley Support / Support Poulie
-PLATFORM INSTALL / INSTALLATION PLATE-FORME
Platform Support Install / Installation Support Plate-Forme
Platform, Drop Bar / Plate-Forme – Lisse Coulissante
8E-XI Platform,Drop Bar / 8E-Plate-Forme XI – Lisse Coulissante
20E-Platform Saloon Gates / 20E- Plate-Forme – Porte Saloon
Console And Container Install / Installation Boitier De Commande Et Boite A Outils
Platform Console Assembly / Boitier Haut
-POWER TRACKS AND CLAMPS / INSTALLATION CHAINES PORTE-CABLES
Install,Power Tracks And Clamps / Installation Chaines Porte-Cables
-HYDRAULIC INSTALL / INSTALLATION HYDRAULIQUE
Hoses Kit Diagram / Schema Kit Flexibles
Control Valves Install / Installation Distributeurs
Tank And Pump Install / Installation Groupe Hydraulique
Tank And Pump / Groupe Hydraulique
Valve Assy,Mast Cylinder / Assemblage Distributeur Verin Mat
Valve Assy,Jib Cylinder / Assemblage Distributeur Verin Bras
-ELECTRICAL SYSTEM INSTALL / INSTALLATION ELECTRIQUE
Cables And Switches Install Diagram / Diagramme D’Installation Cables Et Capteurs
Kit, Power Cables / Kit Cables De Puissance
Battery And Charger W/O Cw Install / Installation Batteries Et Chargeur Sans Cp
Battery And Charger With Cw Install / Installation Batteries Et Chargeur Avec Cp
Switches And Covers Install / Installation Capteurs
-DECALS INSTALL/ INSTALLATION AUTOCOLLANTS
Decals Install All Products / Installation Autocollants Tout Produit
Decal,Eac (Russia,Cis) Install / Installation Autocollant Eac (Russia,Cis)
-OPTIONS / OPTIONS
Motion Alarm Install / Installation Alarme De Mouvement
Airline 5/16” Install / Installation Air Comprime 5/16″
Working Light Install / Installation Phare De Travail
230V Platform Socket Install / Installation Prise Plate-Forme 230V
Platform 115V Iec Socket Install / Installation Prise Plate-Forme 115V Eic
Platform 115V Gfi-Us Socket Install / Installation Prise Plate-Forme 115V Gfi-Us
Ucb Protection Install / Installation Protection Boitier Haut
Skyline Install / Installation Skyline
Skyline Beacon Install
RECOMMENDED PARTS LIST / LISTE DE PIECES RECOMMANDEES
PART NUMBER INDEX
